Monogram ZVW8301SWSS 30" Wall-Mounted Vent Hood
Rebates &
Promotions
Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. - Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. Download Valid: 04/01/2025-12/31/Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. - Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. Download Valid: 04/01/2025-12/31/Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. - Receive a generous rebate or up to 2 Free Monogram Appliances with purchase of qualifying Monogram Range, Oven, Cooktop, Side By Side Refrigerator or Appliance Package. Download Valid: 04/01/2025-12/31/
Powerful ventilation
Offers three speeds plus a 400 CFM boost to capture cooking fumes produced by 30" cooktops
Perimeter filter system
Draws fumes and vapors around a stainless steel center panel, which completely and stylishly conceals filters
Halogen lighting
Provides four levels of clean, brilliant illumination to suit the cooking task or occasion
- Stainless steel design
- Powerful ventilation
- Perimeter filter system
- Halogen lighting
- Recirculating-ready design
| APPEARANCE | |
| Exterior Design | Chimney - Wall-Mount |
| Design Style | Chimney |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Amp Rating at 120V | 12.0 |
| WARRANTY | |
| Labor Warranty | Limited 2-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| ACCESSORIES | |
| 8'-10' Ceiling Duct Cover | Included |
| Optional 12' Ceiling Extension | ZX83012 |

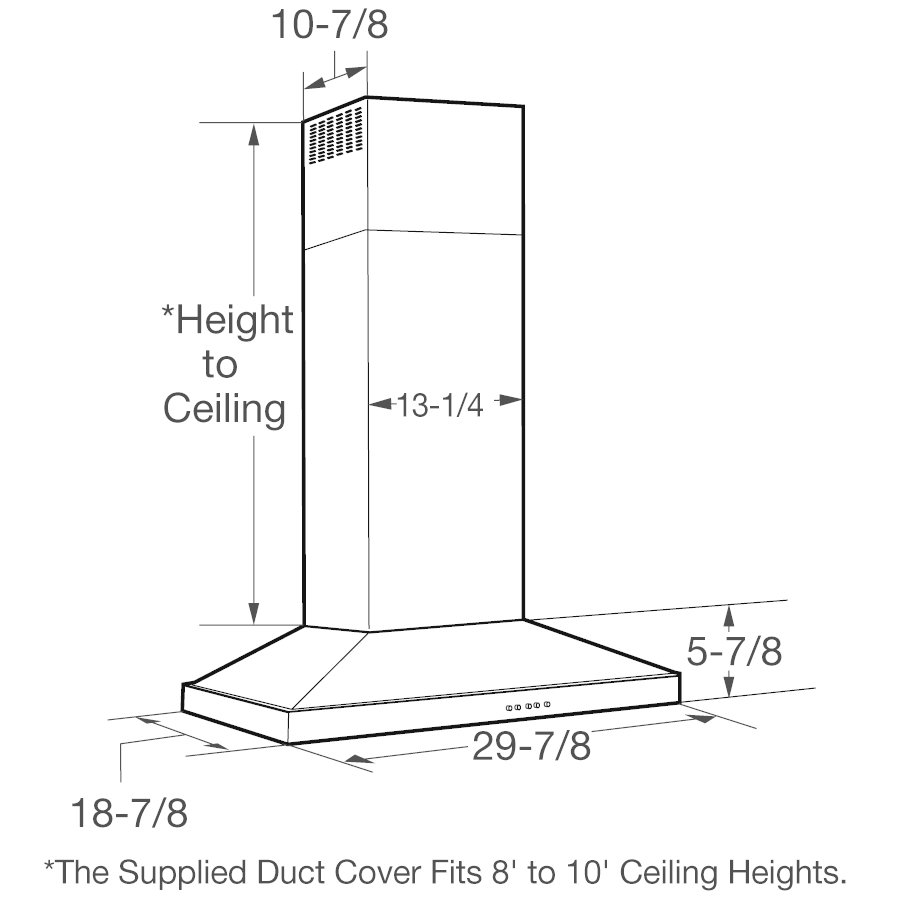

| WEIGHTS & DIMENSIONS | |
| Cabinet Width | 30 in |
| Net Weight | 60 lb |
| Overall Depth | 18.875 in |
| Approximate Shipping Weight | 75 lb |
| Overall Height | 5.875 in |
| Overall Width | 29.875 in |
| FEATURES | |
| Fan Speed Control | 4-Speed |
| Cooktop Lighting | 2 Halogen |
| Damper in Transition | Yes |
| Ducting | Vertical Only |
| Short Description | 30' Wall-Mounted Vent Hood |
| Light Controls | Off/High/Night |
| Filter Cleaning | Dishwasher Safe |
| CFM/ Sones Rating | 400/ 8.5 (High Speed) |
| Exhaust Options | Recirculating Vented to Outside |
| 8' Round Duct | Yes |
| Product Type | Designer Hood |
| Vertical Exhaust Blower Rating (CFM) | 400 |
| Welded / Finished Seams | Yes |
| Control Type | Electronic Pushbutton |
| Lighting Levels | 4 |
| Removable Filter | Yes |
| Recirculating Capable | Yes |
| Removable Grease Filter(s) | Yes |
| Blower Levels | 4 |
