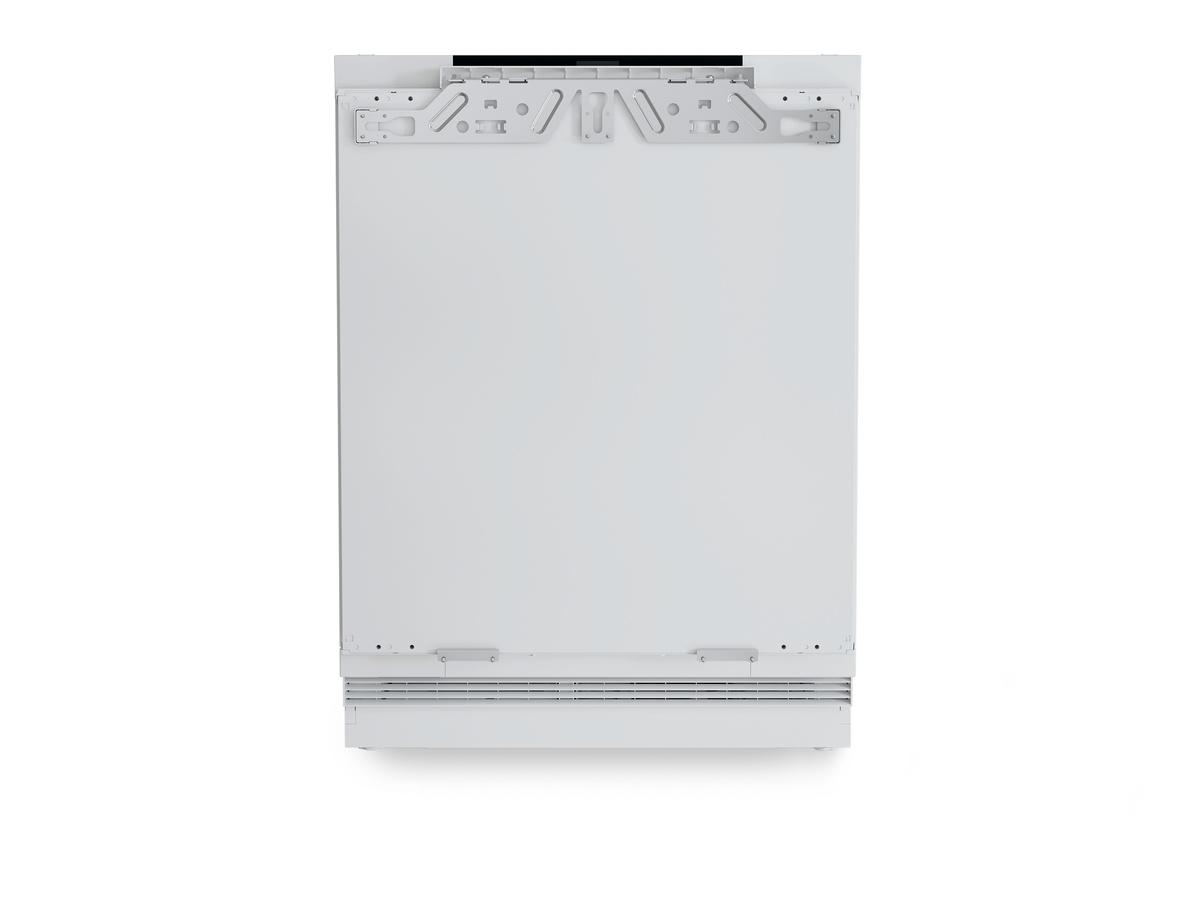

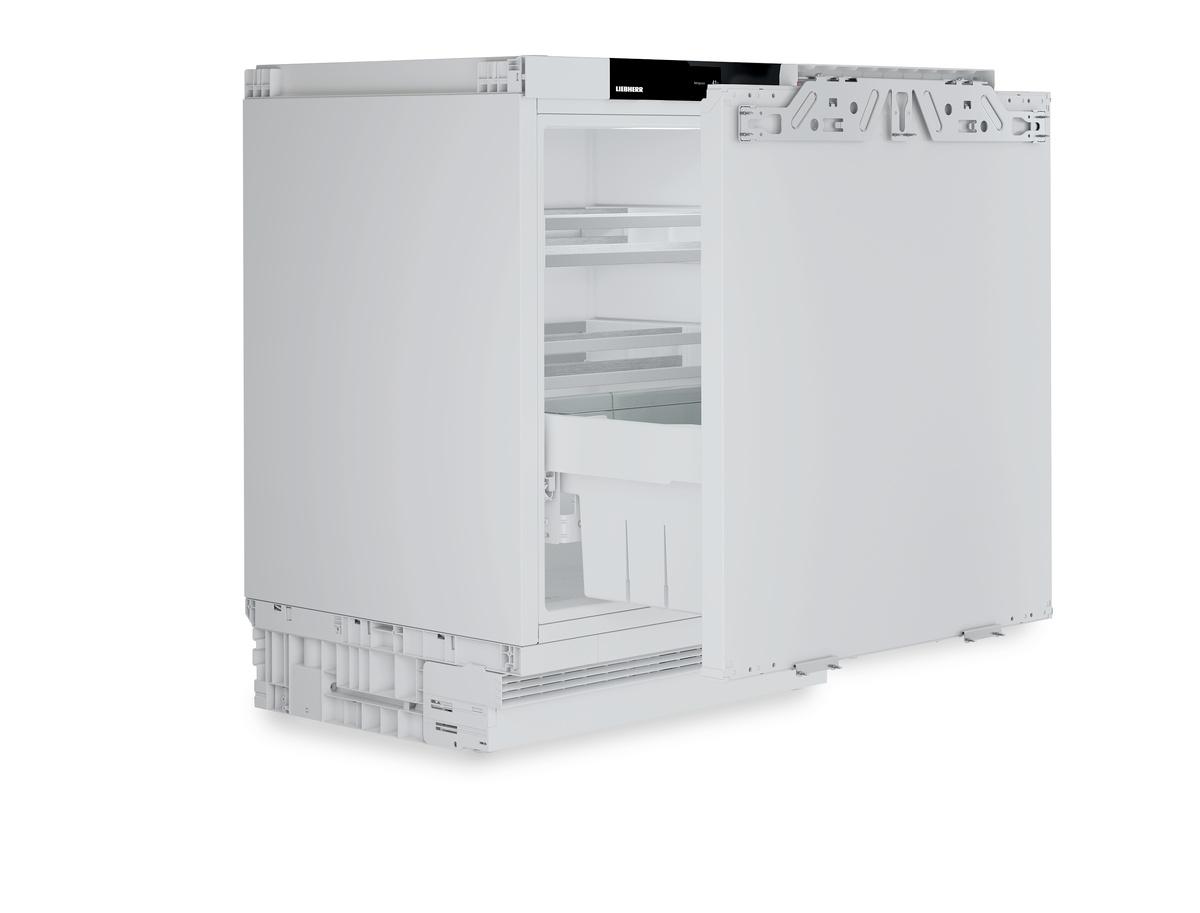

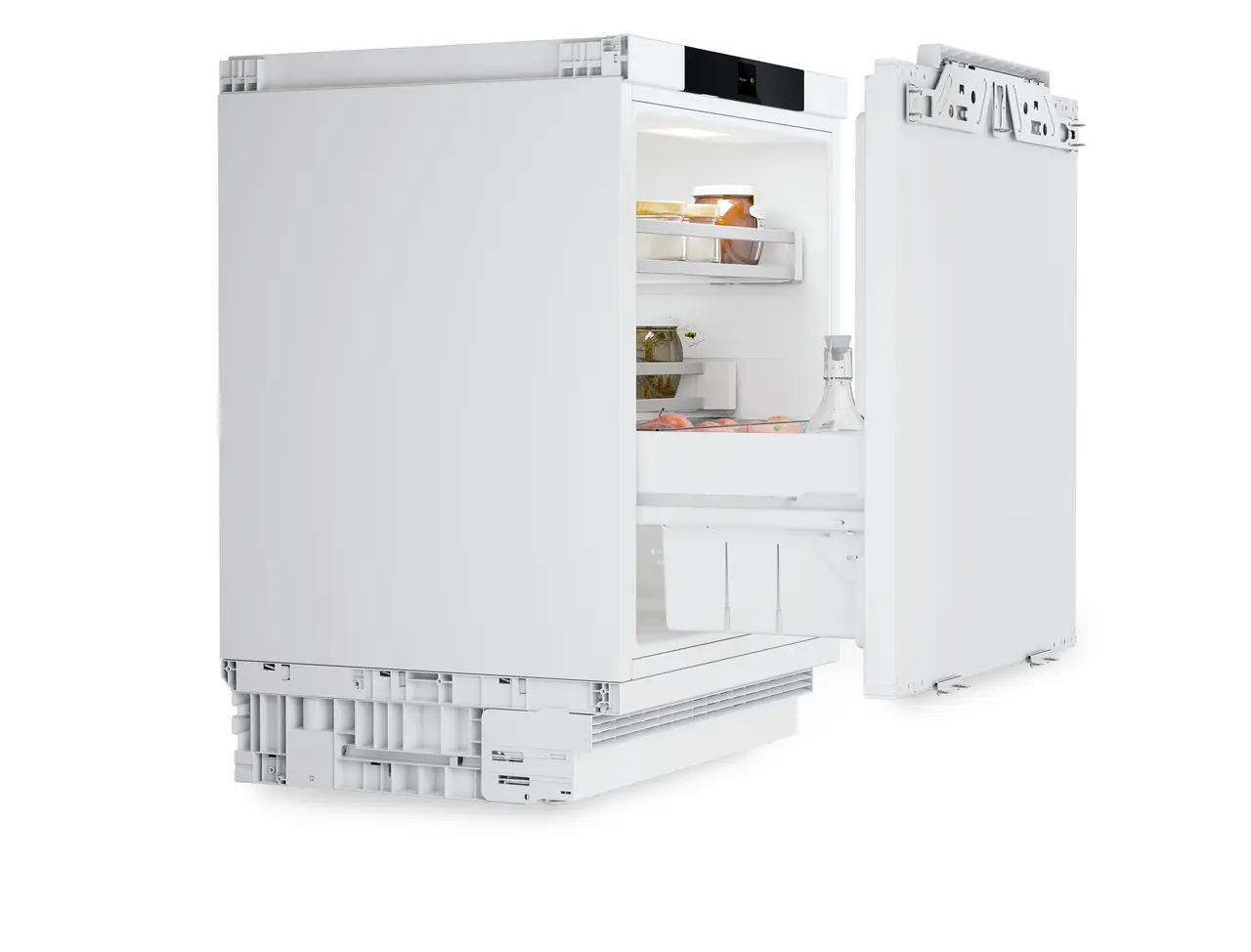

Liebherr URP3653 Refrigerator Drawer Suitable For Undercounter Installation
German engineering
German engineering Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
Energy Star
Energy Star Liebherr refrigerators help to produce less energy waste and greenhouse gas emissions with the aim of having the least damaging effect on the environment and offering solutions that help consumers conserve energy.
Touch & Swipe display
Touch & Swipe display Control of your Liebherr at your fingertips: thanks to the Touch & Swipe display, you can operate your refrigerator intuitively and with ease. Simply select functions such as SuperCool on the color display by tapping and swiping. The temperature is controlled just as easily. And, what if you are not actively using the display? Well, it then shows you the actual temperature.
Integrated SmartDeviceBox
Integrated SmartDeviceBox Your Liebherr may well be standing in the kitchen - but if you want, it can also be connected to the Internet at any time. The integrated SmartDeviceBox opens the door to all the Smart Home benefits. Simply plug it in, switch it on and connect your Liebherr to the network via Wi-Fi.
GlassLine shelves
GlassLine shelves If you store a carafe or tall container in the refrigerator, you don't want to have to remove an entire glass shelf. And why should you? Because there are split glass shelves. Simply slide the front half of the glass shelf under the back half. This allows you to place higher containers at the front and still have enough space for other food.
SoftSystem
SoftSystem From breakfast to a midnight snack - a refrigerator needs to be open and closed on many occasions. And your Liebherr makes this is a lot of fun. With the SoftSystem, your refrigerator door closes softly and safely, and in a way which is pleasantly quiet and light. Bottles stored in the inside door remain securely in place - nothing rattles or wobbles.
- Energy Star
- Touch & Swipe display
- Integrated SmartDeviceBox
- SoftSystem
- SuperCool
| General product information | |
| Model type | Refrigerator suitable for undercounter installation |
| GTIN | 9005382259818 |
| Series | prime |
| Output and consumption | |
| Humidity range | Yes |
| Energy consumption per year | 125 kWh/a |
| Energy Label | EnergyStar |
| Energy consumption in 24h | 0.342 kWh / 24h |
| Voltage | 115 V ~ |
| Frequency | 60 Hz |
| Connection rating | 2.0 A |
| Control and functions | |
| Malfunction: Warning signal | optical and acoustical |
| Control | 2.4 TFT color display, Touch & Swipe display |
| Position of control unit | behind the door |
| Control unit | Touch & Swipe |
| Number of temperature zones | 1 |
| Number of regulated refrigeration circuits | 1 |
| Child proofing | Yes |
| Temperature display | Fridge compartment |
| Door alarm, cooling | visual and audible |
| Door alarm, cooling | Adjustable on appliance and via app |
| BottleTimer | - |
| NightMode | Adjustable on app |
| Display lock | Adjustable on appliance |
| Refrigerator compartment | |
| Refrigerator compartment climate zones | - |
| Number of BioFresh drawers | 0 |
| Defrosting method | automatic |
| Forced air cooling | Yes |
| FreshAir filter | in valve |

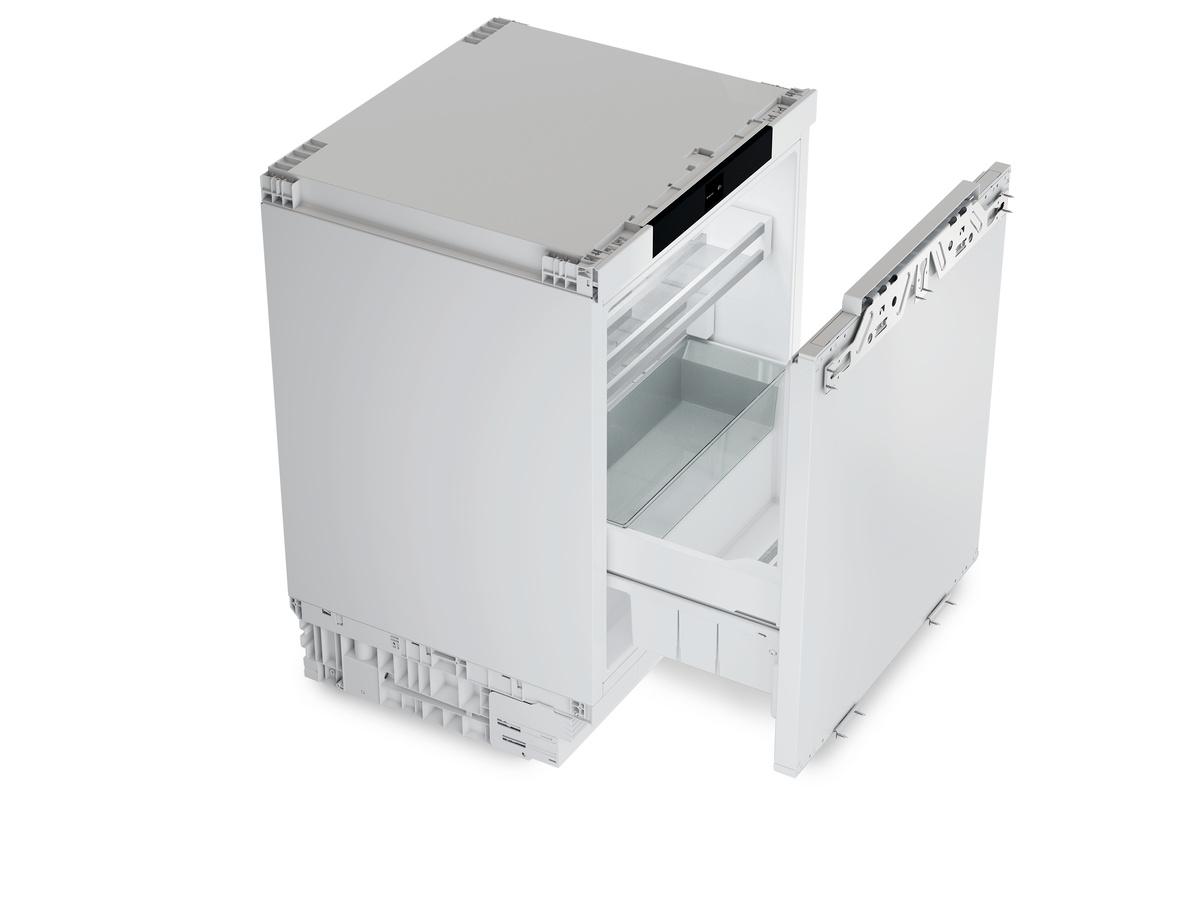

| Pull-out system drawer, fridge compartment | Fully extendible telescopic rails with self-closing mechanism and soft stop mechanism |
| SoftSystem | SoftSystem |
| Interior light, fridge compartment | LED ceiling lighting |
| Number of storage shelves, refrigerator compartment | 2 |
| Of which separable | 0 |
| of which height-adjustable | 0 |
| Bottle storage | - |
| Number of can racks | 0 |
| Butter dish | - |
| Egg tray | - |
| Storage rack | - |
| Height-adjustable inner door shelf | - |
| Pull-out unit | Yes |
| Design and materials | |
| Storage shelf material, fridge compartment | Glass |
| Cabinet Material | Full-panel door |
| Set-up and installation | |
| Type of installation | Undercounter |
| door assembly | Pull-out drawer |
| Door hinges | Pull-out |
| Door hinge replacement | Not possible |
| Door opening angle | - |
| Door seal | Replaceable |
| Height-adjustable feet | 4 |
| Leveling bars | - |
| Number of levelling bars | 0 |
| Ventilation | Base ventilation |
| Plug type | USA |
| Connector cable (length) | 2,200 mm |
| Specifications | |
| Net capacity, total | 4.1 cubic feet |
| Niche Height | 32 - 35 inch |
| Range of appliance width | 24 inch |
| Min. depth | 22 inch |
| Exterior dimensions: height/width/depth | 32 3/16 23 1/2 21 7/8 inch |
| Exterior dimensions: height/width/depth (with packaging) | 35 1/16 24 3/16 27 15/16 inch |
| Weight (without packaging) | 94.40 lb |
| Weight (with packaging) | 101.20 lb |
