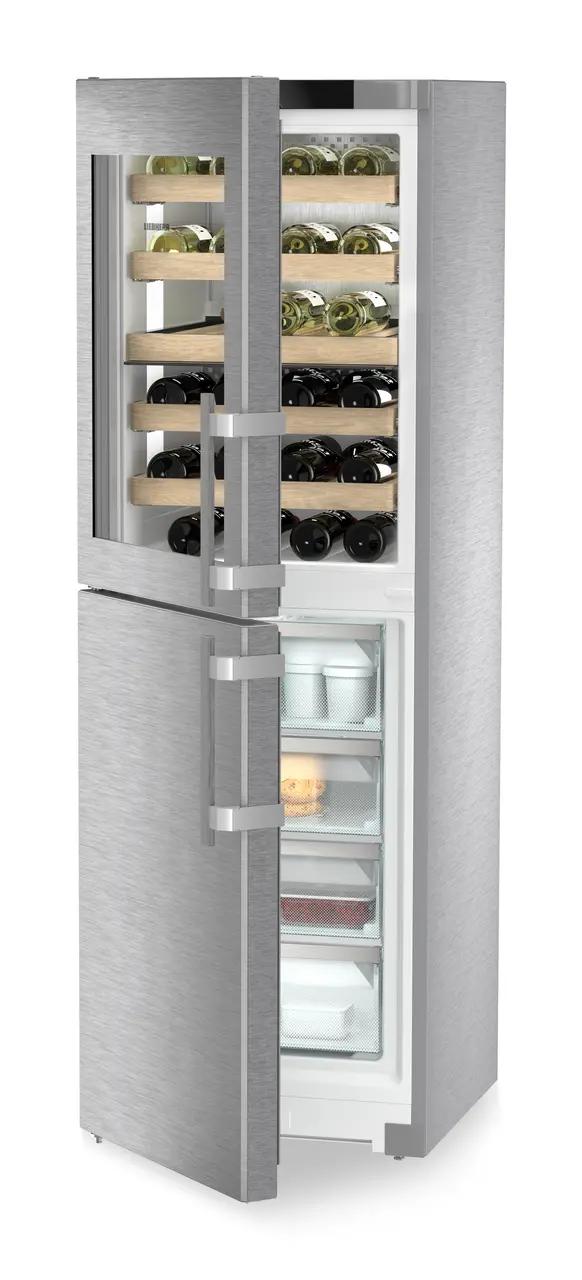

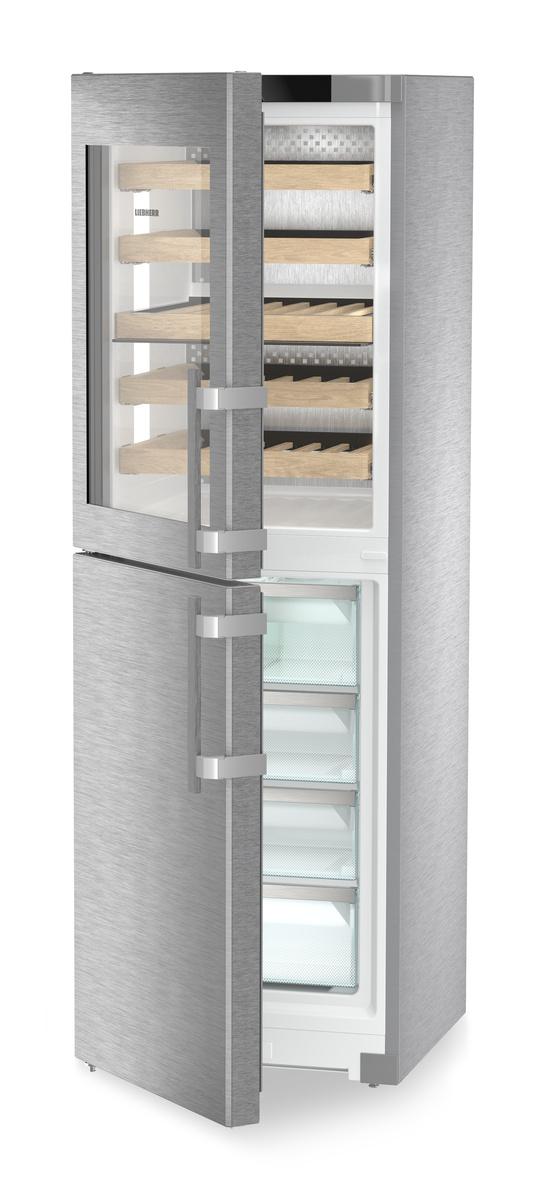

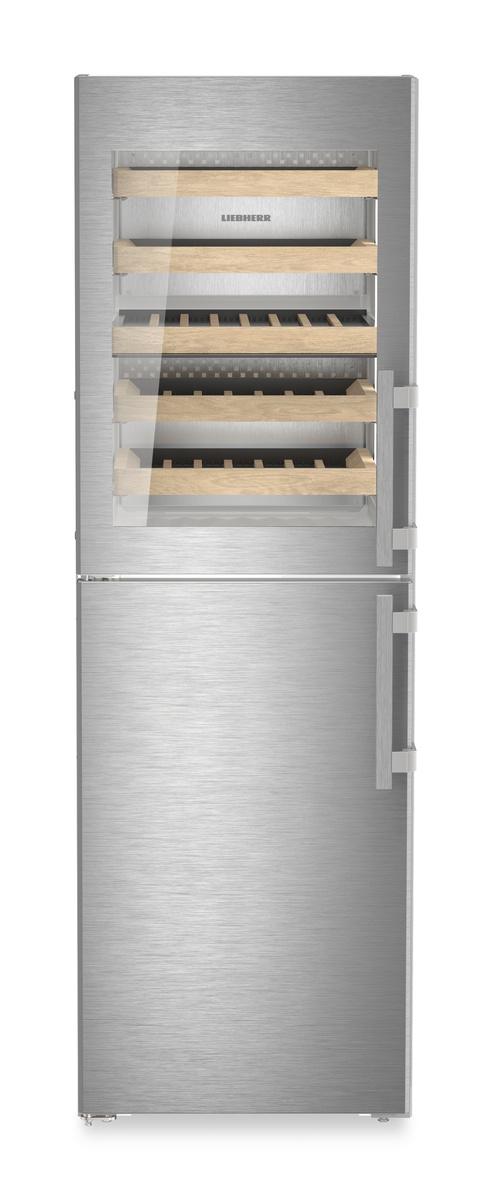

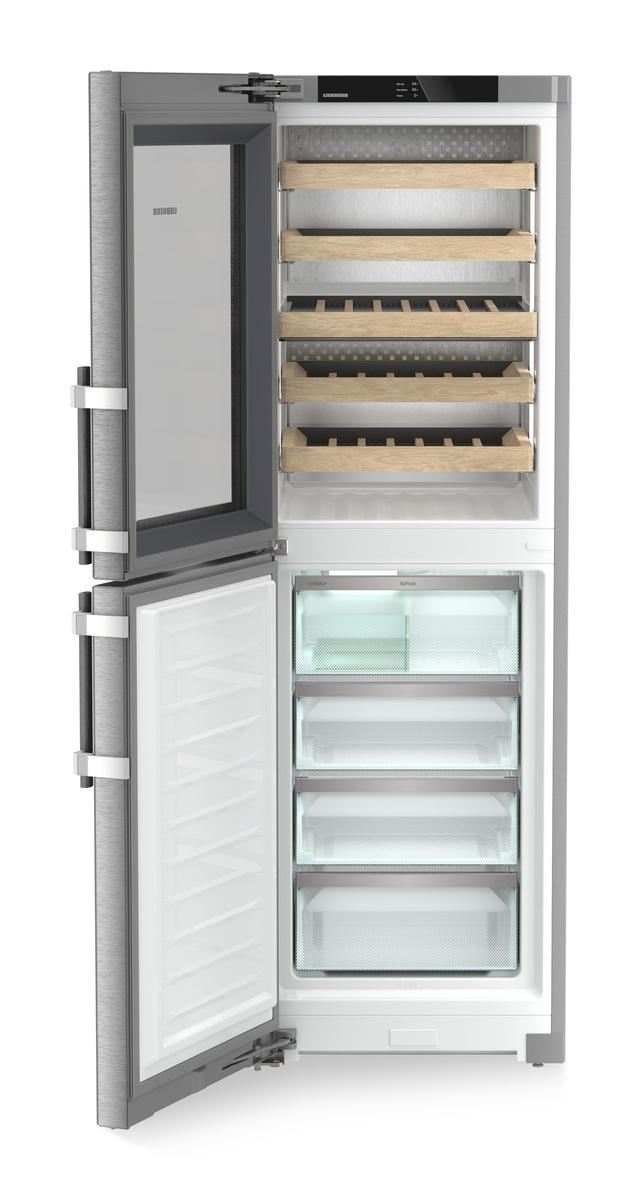

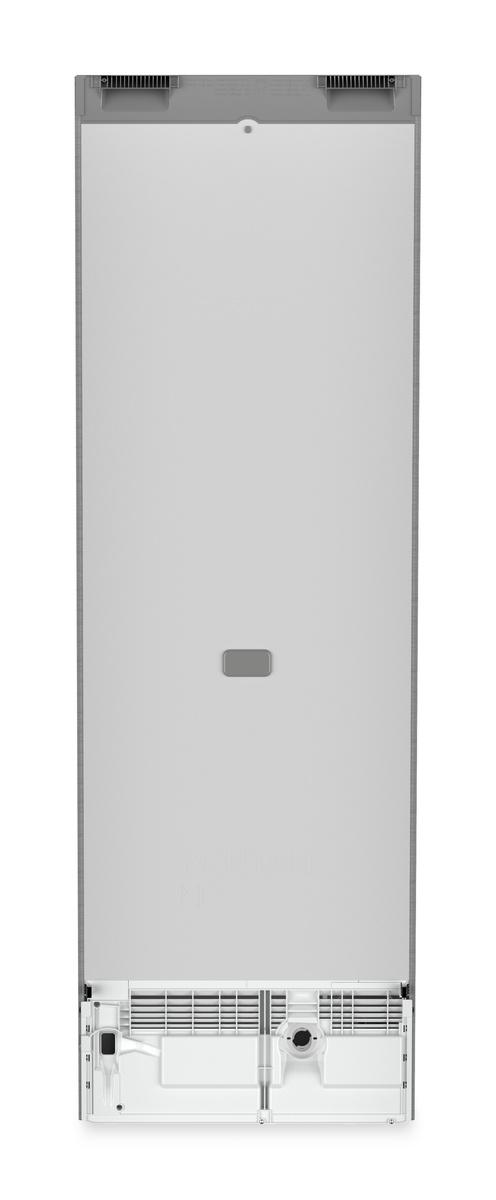

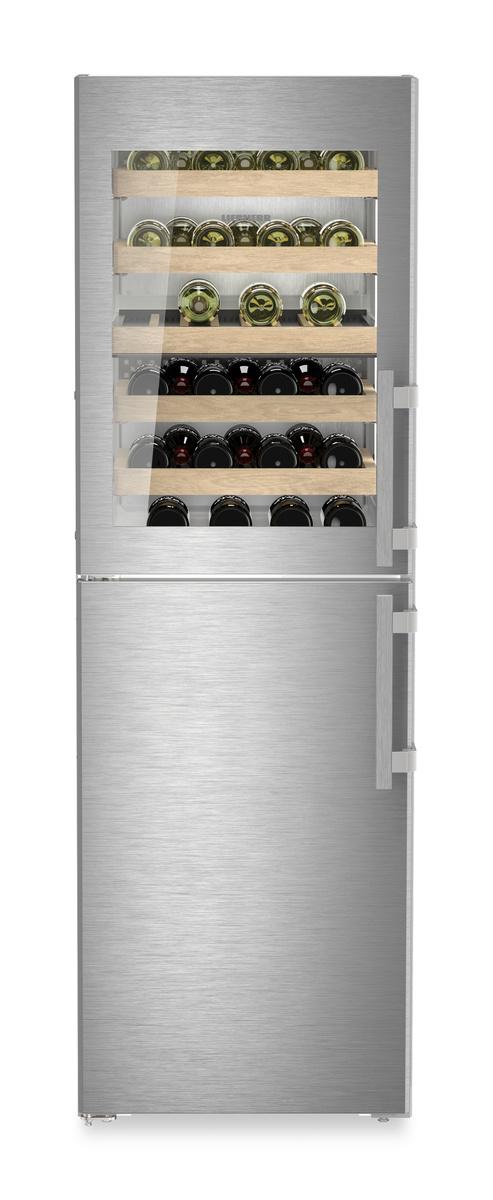

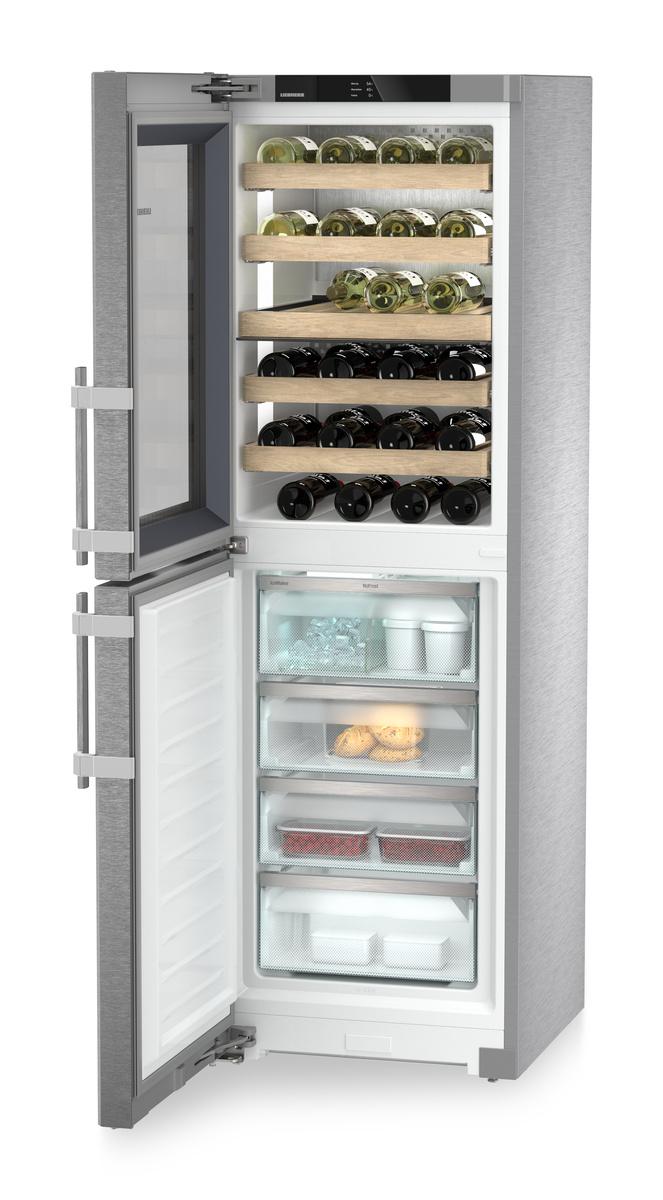

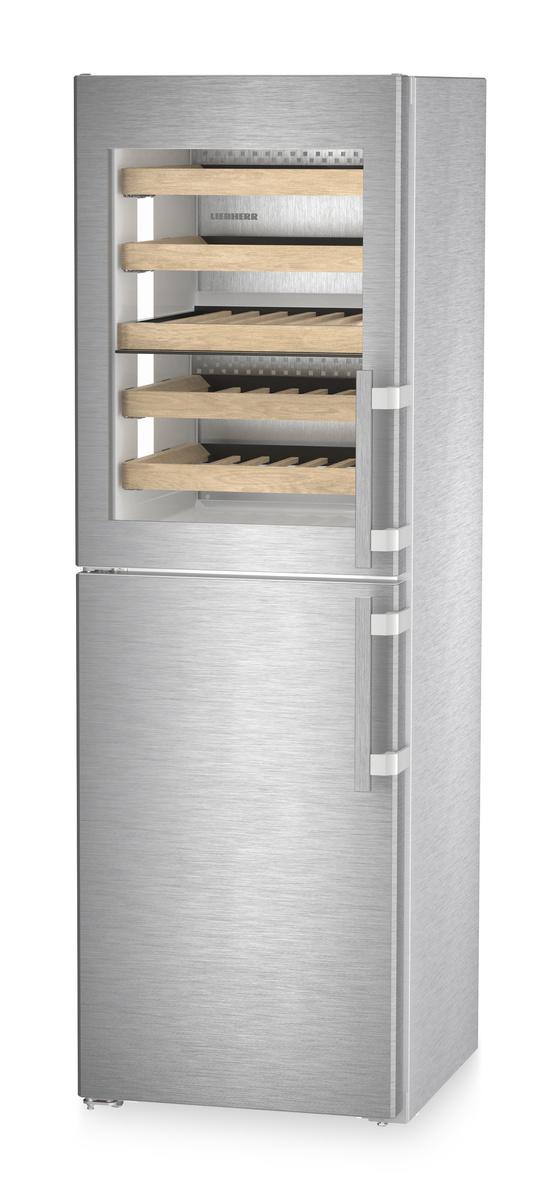

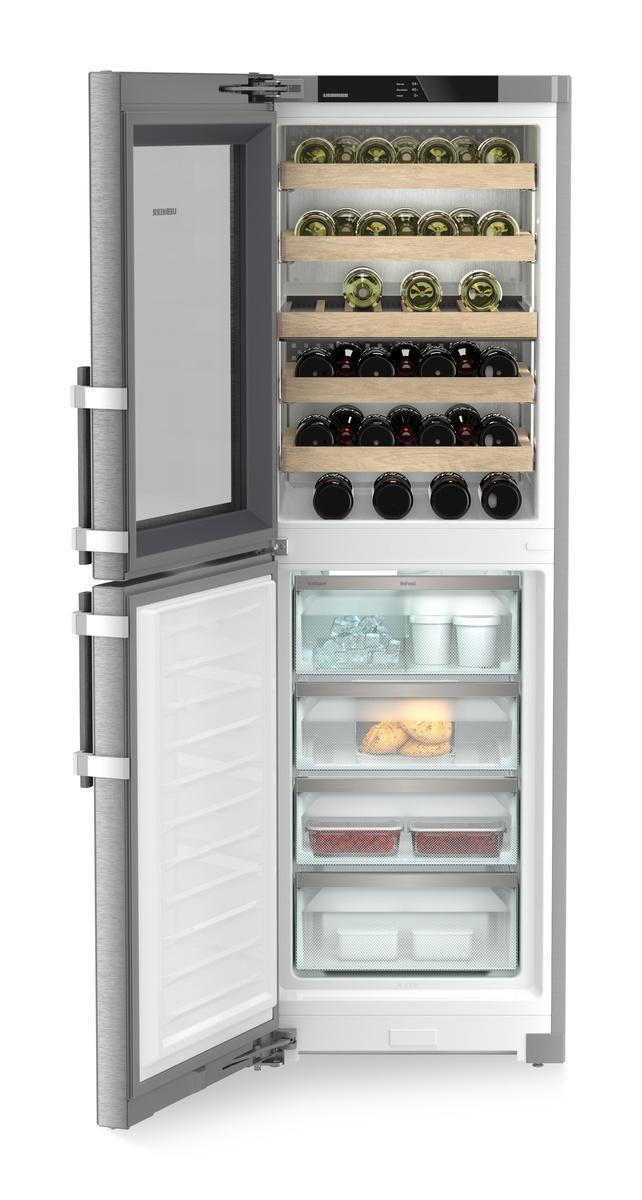

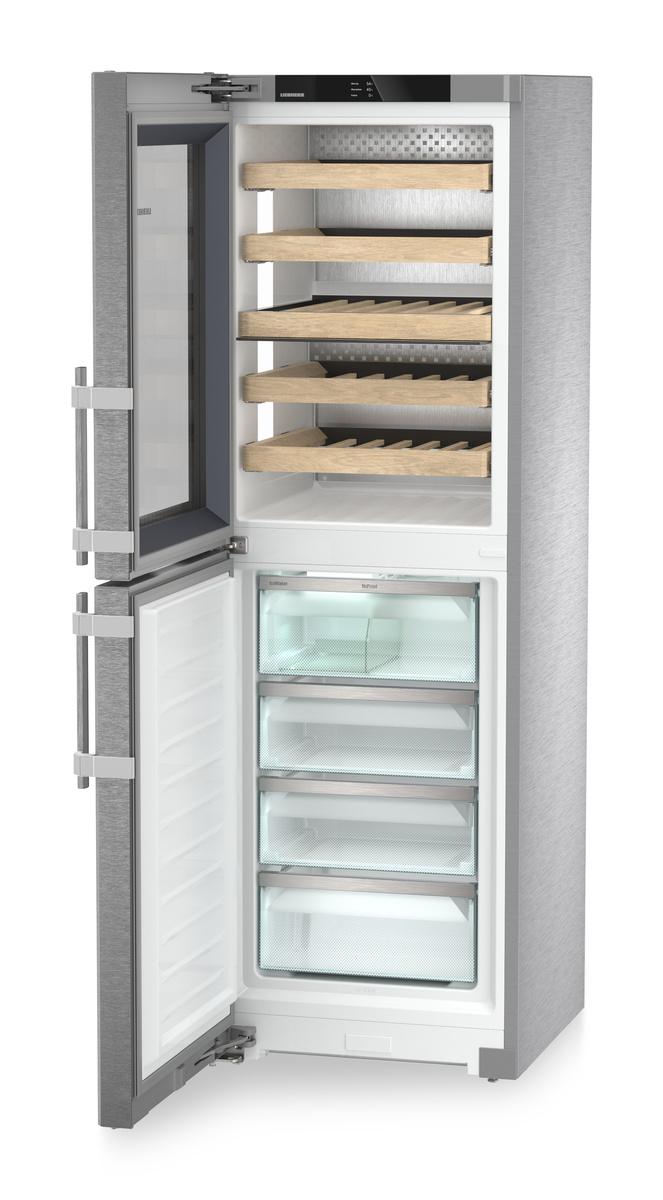

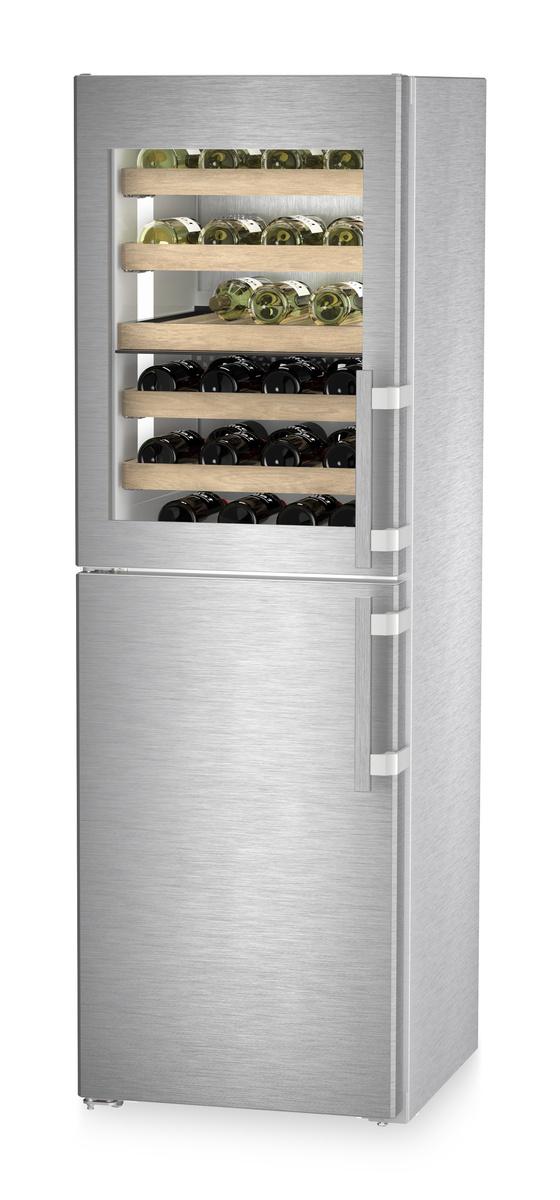

Liebherr SW5291 Combination With Nofrost Freezer Compartment And Wine Tempering Compartment
German engineering
German engineering Our superior products offer premium quality, cutting edge design and innovative features that fit with your busy lifestyle. Plus, exclusive components and materials along with the latest production processes ensure energy efficiency and performance for years to come.
2 tempering zones
2 tempering zones Experience a wine compartment at its best with our two tempering zones. Each zone can be precisely adjusted from 41(degree)F and 68(degree)F, ensuring that your reds and whites age gracefully or are ready to be served at any time within a single appliance. This innovation offers flexibility and convenience, whether you're a wine seasoned collector or a newcomer.
Precision temperature settings
Precision temperature settings If not kept at the right temperature, wine can be harmed and lose its quality. The precise electronic control system ensures that the required temperature is constantly maintained in the wine tempering compartment. It can be set to the exact degree between 41(degree)F and 68(degree)F. The current temperature is shown on the display.
TempProtect Plus
TempProtect Plus Within the wine tempering compartment the temperature is constantly measured with two sensors. This gives you double the assurance that your wines are protected from temperature fluctuations. This is because you are alerted as soon as one of the sensors detects a critical change in temperature, allowing you to take action quickly.
NoFrost
NoFrost When you open your freezer, you want to see frozen food - and certainly not ice and frost. NoFrost protects the freezer compartment from unwanted icing, which consumes a lot of energy and can be expensive. NoFrost means no more tedious and time-consuming defrosting of the freezer compartment, more time for other things - and saving money.
DuoCooling
DuoCooling DuoCooling uses two completely separate refrigeration circuits to ensure no air is exchanged between the refrigerator and freezer compartments. The food neither dries out nor is odor transferred. This means throwing less away, shopping less often, but saving more and greater enjoyment.
- 2 tempering zones
- TempProtect Plus
- NoFrost
- DuoCooling
- Integrated SmartDeviceBox
- Touch & Swipe display
- LightTower
- FlexFit wooden shelves
- IceMaker with fixed water connection
- HumiditySelect
- UVProtect Plus
- VibrateSafe
- SoftSystem
- SoftTelescopic rails
- Presentation lighting
- FreshAir charcoal filter
- SuperFrost
- VarioSpace
| General product information | |
| Model type | Combination with NoFrost freezer compartment and wine tempering compartment |
| GTIN | 4016803083917 |
| Series | peak |
| Output and consumption | |
| Humidity range | Yes |
| Connection rating | 2.3 A 183 W |
| Voltage | 115 V ~ |
| Frequency | 60 Hz |
| Control and functions | |
| Control | 2.4 TFT color display, Touch & Swipe display |
| Number of temperature zones | 3 |
| Position of control unit | behind the door |
| Number of regulated refrigeration circuits | 3 |
| VarioTemp | No |
| Temperature display | Wine & freezing compartment |
| Front frame heater | Refrigerator and freezer compartment |
| SuperCool | - |
| SuperFrost | Adjustable on appliance and via app |
| Door alarm, cooling | - |
| Door alarm, freezing | Adjustable on appliance and via app |
| BottleTimer | Adjustable on app |
| NightMode | Adjustable on app |
| HolidayMode | - |
| Display lock | Adjustable on appliance |
| Fan | Yes |
| Control unit | Touch & Swipe |
| Child proofing | Yes |
| Refrigerator compartment | |
| Moisture regulation | DuoCooling |
| Refrigerator compartment climate zones | Two zone wine temperature control (permanent) |
| FreshAir filter | in zone separator |
| VarioSafe | - |
| InfinitySpring | - |
| Bottle storage | Flexible wooden pull-out shelf |
| Number of can racks | 0 |
| VarioBox | - |
| Egg tray | - |
| Height-adjustable inner door shelf | - |
| Wine storage compartment | |
| Maximum number of 0.75 l Bordeaux bottles | 44 |
| Shelf pull-out system | Telescopic runners with full-extension runners with self-closing mechanism and soft-closing mechanism |
| Freezer compartment | |
| Freezer compartment position | Bottom |
| Defrosting method | automatic |
| Freezing capacity in 24 hrs | 35.3 lb |
| No. of drawers in freezer compartment | 4 |
| of which on telescopic rails | 3 |
| FrostSafe | Drawers closed on all sides with transparent front |
| Interior light, freezer compartment | LED lighting in the door |
| 4-star freezer compartment door | - |
| Number of glass shelves, 4-star freezer compartment | 0 |
| VarioSpace | Yes |
| SpaceBox | - |
| Type of hose | Reinforced flexible hose |
| IceMaker safe lighting | Yes |
| Ice cube production | 2.6 lb |
| Ice cube storage | 5.4 kg |
| Ice cube storage | 11.9 lb |
| EasyTwist-Ice | No |
| Ice cube tray | - |
| Number of ice cube trays | 0 |
| Number of water filters | 1 |
| Number of cold storage accumulators | 0 |
| Freezer tray | 0 |
| Star-rating | 4 |
| Water inlet | Fixed water connection |
| Design and materials | |
| InteriorFit | Yes |
| Dry rear panel | Yes |
| Material dry rear wall | SmartSteel look |
| Inner door décor | - |
| Material door bins | - |
| Cabinet Material | Insulated glass door in the wine compartment/SmartSteel |
| Material of adjustable shelves in the freezer compartment | Glass |
| Cabinet Material | stainless steel |
| Side wall material | stainless steel |
| Handle | Lever handle |
| Set-up and installation | |
| Closing aid | - |
| Door hinges | Left |
| Door hinge replacement | Possible for customer |
| Door seal | Replaceable |
| Height-adjustable feet | 2 |
| Transport handles | Front and rear |
| Transport castors at back | Yes |
| Ventilation | Front ventilation |
| Plug type | USA |
| Connector cable (length) | 2,000 mm |
| Specifications | |
| Net capacity, total | 10.7 cubic feet |
| Freezer compartment | 4.7 cubic feet |
| Product dimensions (H/W/D) | 73 23 1/2 26 5/8 inch |
| Height / Width / Depth (with packaging) | 75 7/8 24 1/2 30 3/16 inch |
| Weight (without packaging) | 217.60 lb |
| Weight (with packaging) | 239.40 lb |
| Exterior dimensions: height/width/depth (with packaging) | 1,927.0 / 623.0 / 767.0 mm |
