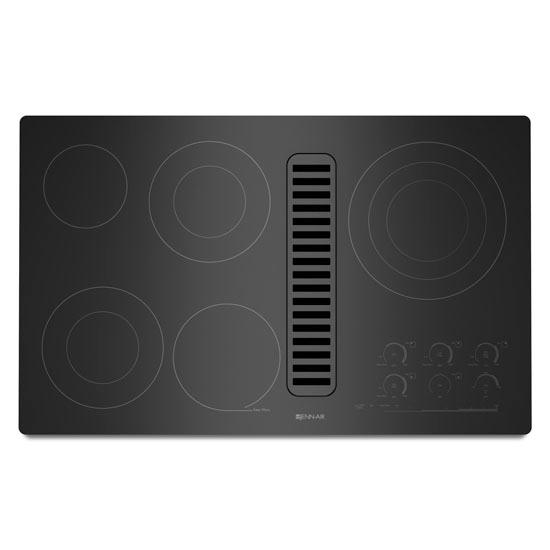

Jennair JED4536WB Jenn-Air® Electric Radiant Downdraft Cooktop With Electronic Touch Control, 36" - Black
Jennair JED4536WB Jenn-Air® Electric Radiant Downdraft Cooktop With Electronic Touch Control, 36" - Black
SKU: JED4536WB
UPC: 883049184104
Colors:
BlackCall us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Jennair JED4536WB Jenn-Air® Electric Radiant Downdraft Cooktop With Electronic Touch Control, 36" - Black
This Jenn-Air® Luxury Electric Radiant Downdraft Cooktop With Electronic Touch Controls Offers A Sleek Design And Responsive Performance. Its Glass Touch Controls And Five Radiant Elements Create A Smooth, Integrated Cooktop Surface, And The Impressive Jx3™ Downdraft Ventilation System Quickly And Efficiently Clears The Air Without A Hood. This Cooktop Pairs Beautifully With Our Euro-Style Stainless Suite.
- Industry's Best Performing Ventilation System 1
- JX3™ Downdraft Ventilation System with 3-Speed Fan
- Convertible to Duct-Free Ventilation
- Glass-Touch Electronic Controls
- 12"/9"/6" Triple-Choice™ Element
- Five Radiant Elements
- Two 9"/6" Dual-Choice™ Elements
- 7-Inch Keep Warm™ Element
- 475 CFM Rating
- Easy-to-Clean Short Plenum
- Dishwasher-Safe Air Grill
- Delay Fan Feature
- Ceran® Glass-Ceramic Surface
| External Dimensions | |
| Depth | 22 1/8 |
| Height | 18 3/8 |
| Width | 35 1/2 |
| Cutout Depth | 21 1/8 |
| Cutout Width | 34 1/2 |
| Key Features | |
| Industry's Best Performing Ventilation System - JX3™ downdraft cooktops feature the industry's best performing ventilation system | |
| JX3™ Downdraft Ventilation System with 3-Speed Fan - The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood. | |
| Convertible to Duct-Free Ventilation - This luxury electric radiant downdraft cooktop is convertible to duct-free ventilation, allowing it to be placed nearly anywhere in the kitchen. With our duct-free conversion kit (not included), it creates a ventilation system that doesn't require running ductwork, ideal for kitchens with installation restrictions or ducting limitations. | |
| Glass-Touch Electronic Controls - These sleek cooking controls feature a touch-responsive glass overlay integrated into the cooktop surface, with settings visible on an LED display. | |
| 12'/9'/6' Triple-Choice™ Element - The Triple-Choice™ element allows you to match three different element sizes to cookware for more efficient, consistent heating. | |
| Five Radiant Elements - These five fast-heating ribbon-shaped elements create heat from below the cooktop's sleek glass-ceramic surface. | |
| Two 9'/6' Dual-Choice™ Elements - Two element sizes allow you to match your cookware to the appropriate size, for more consistent and efficient heating. | |
| 7-Inch Keep Warm™ Element - Ideal for entertaining, this convenient 100-watt element offers a low temperature setting to keep already-cooked food perfectly warm, without further cooking. | |
| 475 CFM Rating - This luxury electric radiant downdraft cooktop's ventilation system operates at up to 475 CFM to powerfully remove smoke, steam and cooking odors. | |
| Easy-to-Clean Short Plenum - This plenum, which pulls the air through the ventilation chamber from its hidden position beneath the air grill, is easy to clean thanks to its short height. | |
| Dishwasher-Safe Air Grill - This intake grill, which effectively captures smoke, grease and cooking odors as they're drawn through the system, can be easily cleaned in the dishwasher. | |
| Delay Fan Feature - The fan will automatically turn off after 10 minutes, for more energy-efficient operation. | |
| Ceran® Glass-Ceramic Surface - This sleek glass-ceramic cooking surface offers a high sheen that's easy to clean and maintain. | |
| Specifications | |
| Configuration and Overview | |
| Cooktop Type | Downdraft |
| Fuel Type | Electric |
| Size | 36 |
| Installs Over Built-In Oven | No |
| Burner or Element Style | Radiant |
| Cooktop Surface Material | Ceramic Glass |
| Number of Cooking Element-Burners | 5 |
| ADA Compliant | No |
| Amperage | 40 Amps |
| Cooktop Features | |
| Center Front Element-Burner Power | 100W |
| Center Front Element-Burner Size | 7' |
| Center Front Element-Burner Type | Warming |
| Center Rear Element-Burner Power | 2200W |
| Center Rear Element-Burner Size | 9'/6' |
| Center Rear Element-Burner Type | Dual |
| Left Front Element-Burner Power | 2200W |
| Left Front Element-Burner Size | 9'/6' |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Power | 1800W |
| Left Rear Element-Burner Size | 6' |
| Left Rear Element-Burner Type | Radiant |
| Right Rear Element-Burner Power | 3000W |
| Right Rear Element-Burner Size | 12'/9'/6' |
| Right Rear Element-Burner Type | Triple |
| Controls | |
| Digital Display | Yes |
| Downdraft Vent | Yes |
| Heating Element On Indicator Light | Yes |
| Hot Surface Indicator Light | Yes |
| Control Type | Electronic Touch |
