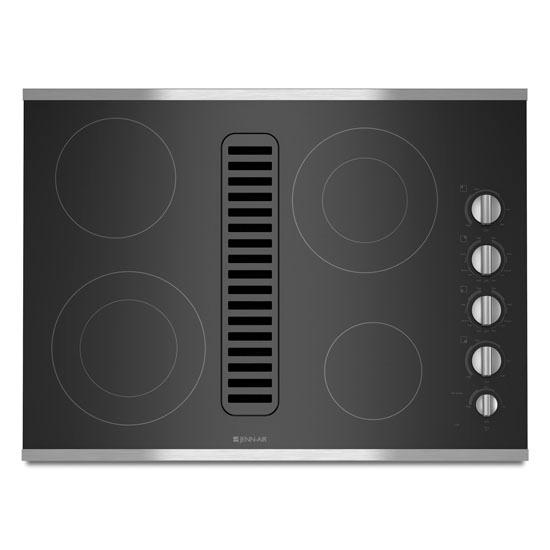

Jennair JED3430WS Jenn-Air® Electric Radiant Downdraft, 30" - Stainless Steel
Jennair JED3430WS Jenn-Air® Electric Radiant Downdraft, 30" - Stainless Steel
SKU: JED3430WS
UPC: 883049183732
Colors:
Stainless SteelCall us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Jennair JED3430WS Jenn-Air® Electric Radiant Downdraft, 30" - Stainless Steel
This Jenn-Air® Luxury Electric Radiant Downdraft Cooktop Offers A Sleek Cooking Surface With Four Radiant Elements, Which Offer Responsive Performance. It Also Features The Impressive Jx3™ Downdraft Ventilation System, Which Quickly And Efficiently Clears The Air Without A Hood. This Cooktop Pairs Beautifully With Our Euro-Style Stainless Suite.
- Industry's Best Performing Ventilation System 1
- JX3™ Downdraft Ventilation System with 3-Speed Fan
- Convertible to Duct-Free Ventilation
- Two 9"/6" Dual-Choice™ Elements
- Four Radiant Elements
- 8-Inch 1,800-Watt Element
- 6-Inch 1,200-Watt Element
- 475 CFM Rating
- Easy-to-Clean Short Plenum
- Dishwasher-Safe Air Grill
- Dishwasher-Safe Knobs
- Hot Surface Indicator Light
- Ceran® Glass-Ceramic Surface
| External Dimensions | |
| Depth | 22 1/8 |
| Height | 18 3/8 |
| Width | 30 |
| Cutout Depth | 21 1/8 |
| Cutout Width | 28 7/8 |
| Key Features | |
| Industry's Best Performing Ventilation System - JX3™ downdraft cooktops feature the industry's best performing ventilation system | |
| JX3™ Downdraft Ventilation System with 3-Speed Fan - The powerful JX3™ downdraft uses proximity ventilation to capture smoke and cooking odors right at the cooking surface, to powerfully clear the air without requiring a hood. | |
| Convertible to Duct-Free Ventilation - This luxury electric radiant downdraft cooktop is convertible to duct-free ventilation, allowing it to be placed nearly anywhere in the kitchen. With our duct-free conversion kit (not included), it creates a ventilation system that doesn't require running ductwork, ideal for kitchens with installation restrictions or ducting limitations. | |
| Two 9'/6' Dual-Choice™ Elements - Two element sizes allow you to match your cookware to the appropriate size, for more consistent and efficient heating. | |
| Four Radiant Elements - These four fast-heating ribbon-shaped elements create heat from below the cooktop's sleek glass-ceramic surface. | |
| 8-Inch 1,800-Watt Element - This luxury cooktop offers a powerful 1,800-watt element, at an optimal size for medium-sized and large cookware. | |
| 6-Inch 1,200-Watt Element - This element, sized for optimal heating of smaller and medium-sized cookware, delivers 1,200 watts of cooking power. | |
| 475 CFM Rating - This luxury electric radiant downdraft cooktop's ventilation system operates at up to 475 CFM to powerfully remove smoke, steam and cooking odors. | |
| Easy-to-Clean Short Plenum - This plenum, which pulls the air through the ventilation chamber from its hidden position beneath the air grill, is easy to clean thanks to its short height. | |
| Dishwasher-Safe Air Grill - This intake grill, which effectively captures smoke, grease and cooking odors as they're drawn through the system, can be easily cleaned in the dishwasher. | |
| Dishwasher-Safe Knobs - The control knobs can be easily removed and cleaned in the dishwasher, for effortless upkeep. | |
| Hot Surface Indicator Light - Each heating element includes this safety feature, alerting you to an element that has not yet cooled, even after it's been turned off. | |
| Ceran® Glass-Ceramic Surface - This sleek glass-ceramic cooking surface offers a high sheen that's easy to clean and maintain. | |
| Specifications | |
| Configuration and Overview | |
| Cooktop Type | Downdraft |
| Fuel Type | Electric |
| Size | 30 |
| Installs Over Built-In Oven | No |
| Burner or Element Style | Radiant |
| Cooktop Surface Material | Ceramic Glass |
| Number of Cooking Element-Burners | 4 |
| Amperage | 40 Amps |
| Cooktop Features | |
| Left Front Element-Burner Power | 3000W |
| Left Front Element-Burner Size | 9'/6' |
| Left Front Element-Burner Type | Dual |
| Left Rear Element-Burner Power | 1800W |
| Left Rear Element-Burner Size | 8' |
| Left Rear Element-Burner Type | Single |
| Right Front Element-Burner Power | 1200W |
| Right Front Element-Burner Size | 6' |
| Right Front Element-Burner Type | Single |
| Right Rear Element-Burner Power | 2200W |
| Right Rear Element-Burner Size | 9'/6' |
| Right Rear Element-Burner Type | Simmer |
| Controls | |
| Digital Display | No |
| Downdraft Vent | Yes |
| Hot Surface Indicator Light | Yes |
| Control Type | Knobs |
