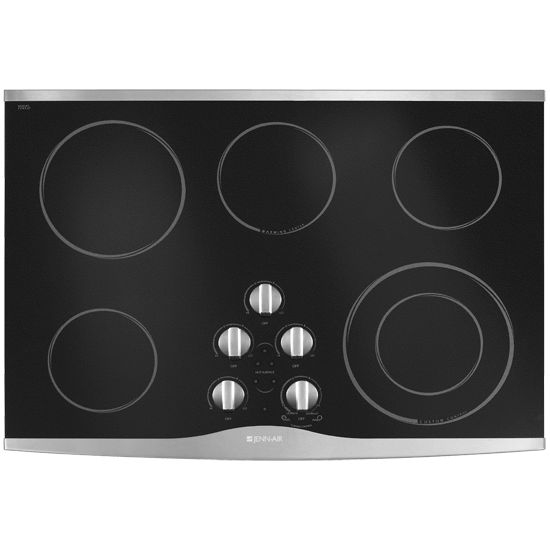

Jennair JEC9530BDS Electric Radiant Cooktop, 30"
Overview This Jenn-Air® Luxury Electric Radiant Cooktop Offers A Sleek Cooking Surface With Five Radiant Elements, Which Offer Responsive Performance. It Also Features A Customcontrol Dual-Choice Element, Which Uses An Electric Sensor To Regulate Heat For More Precise Control And Consistent Results. Specifications Dimensions (Ul)(Li)Width: 29 15/16(/Li)(Li)Depth: 21 1/2(/Li)(Li)Cutout Width (In): 29 1/16(/Li)(Li)Cutout Depth (In): 20 3/8(/Li)(Li)Weight: 45(/Li)(/Ul) Electrical (Ul)(Li)Voltage: 240(/Li)(Li)Frequency: 60(/Li)(Li)Circuit Amps @ 240Vac: 40(/Li)(/Ul) Product Specifications (Ul)(Li)Fuel Type: Electric(/Li)(/Ul)
- 9"/6" CustomControl Dual-Choice Element - This element uses an electronic sensor to constantly monitor and adjust heat output for precise and consistent temperature control. It features two element sizes in one position to match cookware size for even more precise heat.
- 6-Inch Warming Center Element - Ideal for entertaining, this 100-watt element keeps already cooked food warm until it's ready to be served.
- Cast Metal Knobs - These sleek controls offer substantial heft and precision while complementing the cooktop's stainless steel surface.
- Five Radiant Elements - These five fast-heating ribbon-shaped elements create heat from below the cooktop's sleek glass-ceramic surface.
- 8-Inch 2,000-Watt Element - This luxury cooktop offers an ultra-powerful 2,000-watt element, sized for consistent, efficient heating for larger cookware.
- 7-Inch 1,800-Watt Element - This luxury cooktop offers a powerful 1,800-watt element, at an optimal size for medium-sized cookware.
- 6-Inch 1,200-Watt Element - This element, sized for optimal heating of smaller and medium-sized cookware, delivers 1,200 watts of cooking power.
- May Be Installed Over Jenn-Air® 30" Electric Single Oven - This luxury electric radiant cooktop can be installed over a Jenn-Air® electric single oven, offering additional design flexibility.
- "On" Indicator Light - The on indicator light signals when the cooktop power is activated.
- Five Hot Surface Indicator Lights - Each heating element includes this safety feature, alerting you to an element that has not yet cooled, even after it's been turned off.
- Ceran® Glass-Ceramic Surface - This sleek glass-ceramic cooking surface offers a high sheen that's easy to clean and maintain.
| Cooking Surface Controls | |
| Burner/ Element On Light(s) | Yes |
| Color | Stainless |
| Hot Surface Indicator Light(s) | 5 |
| Location | Surface Front Center |
| Material | Metal |
| Power On Indicator Light | Yes |
| Removable Knobs | Yes |
| Type (Switch/Rotation Degrees) | Knobs |
| Cooktop Specs | |
| Burner Box Material | Galvanized Steel |
| Cooktop Material | Ceramic Glass |
| Cooktop Type | Frameless |
| Element Detail | |
| Center Rear Element Size (in) | 6 |
| Center Rear Type | Radiant Warming |
| Centr Rear Element (watts) | 100 |
| Custom Control | Yes |
| Left Front Power (watts) | 1800 |
| Left Front Size (in) | 7 |
| Left Front Type | Radiant Single |
| Left Rear Power (watts) | 2000 |
| Left Rear Size (in) | 8 |
| Left Rear Type | Radiant Single |
| Number | 5 |
| Right Front Power (watts) | 1400/3000 |
| Right Front Size (in) | 6/9 |
| Right Front Type | Radiant Dual |
| Right Rear Power (watts) | 1200 |
| Right Rear Size (in) | 6 |
| Right Rear Type | Radiant Single |
| Model | |
| Fuel Type | Electric |
