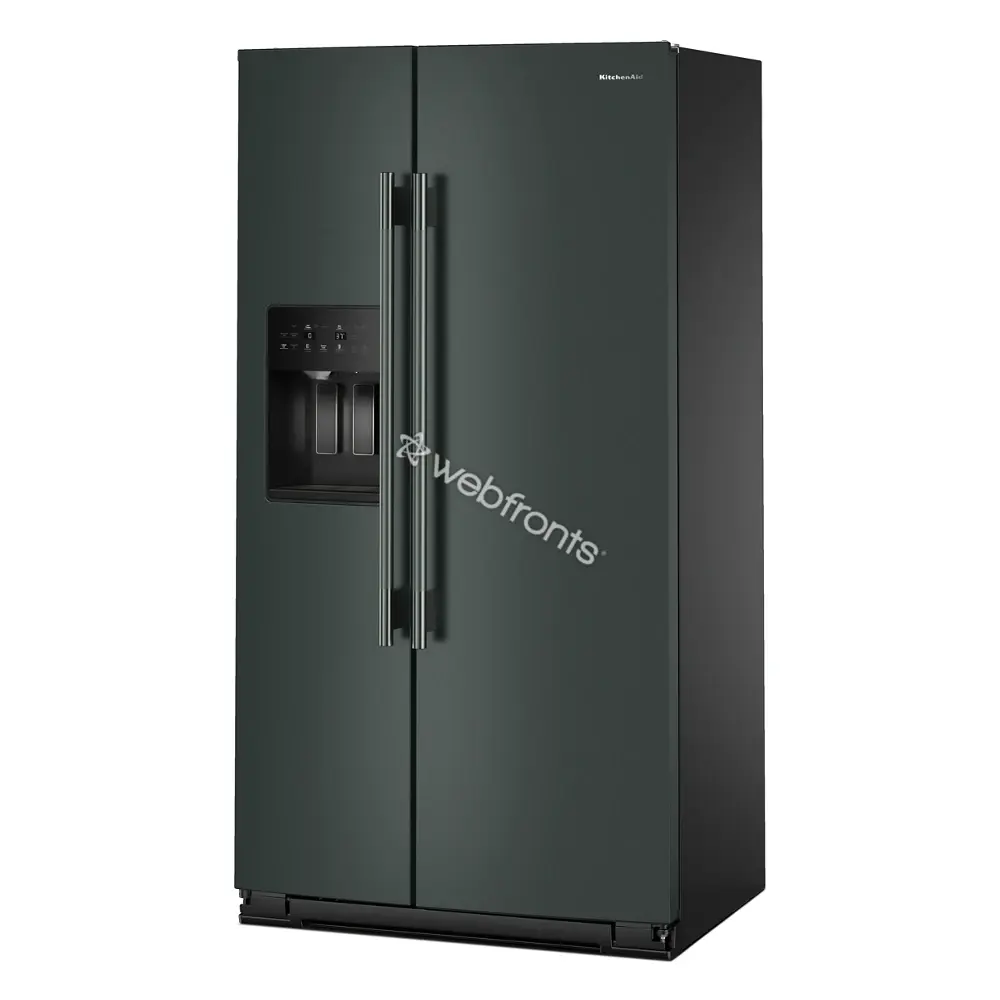

Kitchenaid KRSC536RJP 20.8 Cu. Ft. Counter-Depth Side-By-Side Refrigerator With Exterior Ice And Water Dispenser In Juniper
Kitchenaid KRSC536RJP 20.8 Cu. Ft. Counter-Depth Side-By-Side Refrigerator With Exterior Ice And Water Dispenser In Juniper
Colors:
Green
Black
Stainless SteelTHIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
5 year plan
$479.003 year plan
$236.99Available to Order
Couldn't load pickup availability
Kitchenaid KRSC536RJP 20.8 Cu. Ft. Counter-Depth Side-By-Side Refrigerator With Exterior Ice And Water Dispenser In Juniper
Rebates &
Promotions
KitchenAid Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying KitchenAid appliances. Download Valid: 07/13/2026-08/22/2026
maximizes ice storage while maximizing space on freezer shelves by moving the ice bin to the door. The bin holds up to 4.3 lbs of ice, is clear so you can quickly see ice levels and can be removed to easily fill pitchers or coolers.
illuminates the back of the refrigerator to keep ingredients in sight and easy to find. The rear lighting tower, combined with additional LED light strips throughout the refrigerator and freezer, brighten up the view throughout.
featuring eight removable glass shelves and eight adjustable door bins keep all of your ingredients easily accessible. Rearrange to fit tall wine bottles, stash small items within reach and organize frozen favorites.
this large capacity counter-depth side-by-side refrigerator makes room for every grocery run and farmers market haul with 20.8 cu. ft. of capacity and specialized spaces for your special ingredients.
wows from the inside out with premium craftsmanship and design. Wood-look trim, metallic touchpoints and ultra-bright LED lighting pop against the stunning silver-colored finish.
Make room for every grocery run and farmers market haul with this large capacity counter-depth side-by-side refrigerator from the KitchenAid brand. Counter-depth design fits with surrounding cabinetry to create a built-in appearance. Panoramic LED Lighting illuminates every angle to keep ingredients in sight and easy to find. An Exterior Ice and Water Dispenser with Measured Fill allows you to select and dispense the exact amount you need in ounces, cups, or liters.
Dimensions & Capacity
Width: 35.5"
Height: 69"
Depth: 28.37"
Refrigerator Size: 13.66 cu. ft.
Freezer Size: 7.19 cu. ft.
- Counter-Depth Design fits with surrounding cabinetry
- Rearrange or remove the 9 shelves and 8 door bins to fit items of all sizes
- Designed to be Personalized with a curated palette of finishes and handles
- ENERGY STAR Certified
- EXTENDFRESH Temperature Management System helps keep ingredients fresh
- Exterior Ice and Water Dispenser with Measured Fill for quick access
- FRESHFLOW Air Filter deodorizes 15x better than baking soda
- Humidity-Controlled Crisper adjusts for fruits and/or vegetables
- IN-DOOR-ICE System with Removable Bin maximizes space on freezer shelves
- Max Cool helps quickly chill recently loaded groceries
- Max Freeze helps frozen items quickly reach optimal storage temperatures
- Panoramic LED Lighting keeps ingredients in sight and easy to find
- Sabbath Mode for use on religious holidays
- Signature Platinum Interior wows with wood-look trim and metallic accents
- Spacious Counter-Depth Capacity at 20.8 cu. ft.
- Touchscreen Controls on the door make it easy to choose settings
- Wood-Look Sliding Storage Tray keeps platters and ingredients easily accessible
| Certifications | |
| Ada Compliant | Yes |
| Cee Tier Rating | Not Rated |
| Energy Rating (kwh/year) | 654 |
| Prop65 | Standard |
| Star K Certified | Star K Certified |
| Ul | Yes |
| Controls | |
| Automatic Defrost | Yes |
| Control Location | Exterior Dispenser |
| Control Lockout | Yes |
| Cooling Type | Single Evaporator |
| Door Ajar/open Alarm | Yes |
| LCD Touch Screen | No |
| Max Cool/fast Cool | Yes |
| Sabbath Mode | Yes |
| Details | |
| Advance Foam Insulation | N/A |
| Door Opening Direction | N/A |
| Door Style Configuration | Side-by-Side |
| Garage Ready | No |
| Ice Capacity Storage | 4.3 |
| Installation Configuration | Freestanding |
| Levelers | 2 Black |
| Refrigeration Configuration | Refrigerator |
| Refrigerator Type | Side-by-Side |
| Wheels | 4-Natural |
| Dimensions | |
| Product Height | 69.25 |
| Gross Weight | 270.6 |
| Height To Top of Cabinet | 69 |
| Product Depth | 28.375 |
| Depth With Door Open 90 Degree | 45.75 |
| Cabinet Width | 35.5 |
| Cutout Depth | 30.375 |
| Cutout Height | 70.25 |
| Dispenser Options | Control/Child Lock; Filtered Water; Measured/Metered Fill; Night Light |
| Dispenser Type | Exterior Ice and Water |
| Carton Depth | 30.8 |
| Freezer Capacity Volume | 7.19 |
| Height To Top of Door Hinge | 69.187 |
| Carton Height | 71.75 |
| Carton Width | 38.25 |
| Total Refrigerator Capacity Volume | 20.85 |
| Depth Excluding Doors | 23.875 |
| Depth Closed Excluding Handles | 28.375 |
| Depth Closed Including Handles | 31.125 |
| Cutout Width | 36.5 |
| Refrigerator Capacity Volume | 13.66 |
| Dispenser Pad Color | Grey |
| Net Weight | 260.6 |
| Product Width | 35.5 |
| Height To Top of Door Trim | 69.25 |
| Exterior Details | |
| Base Grille Color | Black |
| Cabinet Color | Black |
| Cabinet Finish | Smooth |
| Counter Depth | Yes |
| Door Color | Juniper Green |
| Door Style | Contour |
| Handle Color | Juniper |
| Handle Material | Metal |
| Handle Type | Reach Through Handle |
| Hidden Hinge | Yes |
| Reversible Door | No |
| Filter Details | |
| Air Filter Indicator/reset | Yes |
| Air Filter Part Number | W10311524 |
| Fresh Flow Air Filter Included | Yes |
| Produce Preserver | No |
| Water Filter Indicator/reset | Yes |
| Water Filter Location | Interior |
| Water Filter Part Number | EDRARXD1 |
| Freezer Details | |
| Defrost Type | Automatic Defrost |
| Freezer Door Bins | 3 Fixed Full-Width |
| Freezer Door Type | Swing |
| Freezer Drawer/basket | 1 Full Width Lower Plastic |
| Freezer Fast Cool | Yes |
| Freezer Lighting | LED |
| Freezer Number of Shelves | 4 |
| Freezer Shelves | 1 Fixed Full Width Glass; 3 Adjustable Full Width Glass |
| General | |
| Energy Star® Qualified | ENERGY STAR® Qualified |
| Icemaker Details | |
| Icemaker | Factory Installed |
| Icemaker Location | Freezer Door |
| Types of Ice | Crushed/Cubed |
| Refrigerator Details | |
| Conventional Shelves | 1 Fixed Full-Width Glass; 3 Adjustable Full-Width Glass |
| Deli Drawer | 1 Full Width |
| Humidity-controlled Crispers | 1 Full-Width |
| Liner Finish | Platinum |
| Non Climate Control Drawers | 1 Full Width |
| Number of Doors | 2 |
| Number of Interior Shelves | 4 |
| Pantry Drawer | No |
| Refrigerator Door Bins | 2 Fixed Full-Width Gallon; 3 Adjustable Two-Liter |
| Refrigerator Lighting | LED |
| Spill-proof Glass Shelves | No |
| Supplementary Containers | N/A |
| Temperature-controlled Drawers | No |
| Smart Compatibility | |
| Connectivity | No |
| Smart Appliance | No |
| Works With | No |
| Warming Drawer Details | |
| Temperature Range | -5/+5 FC 33/45 RC |
