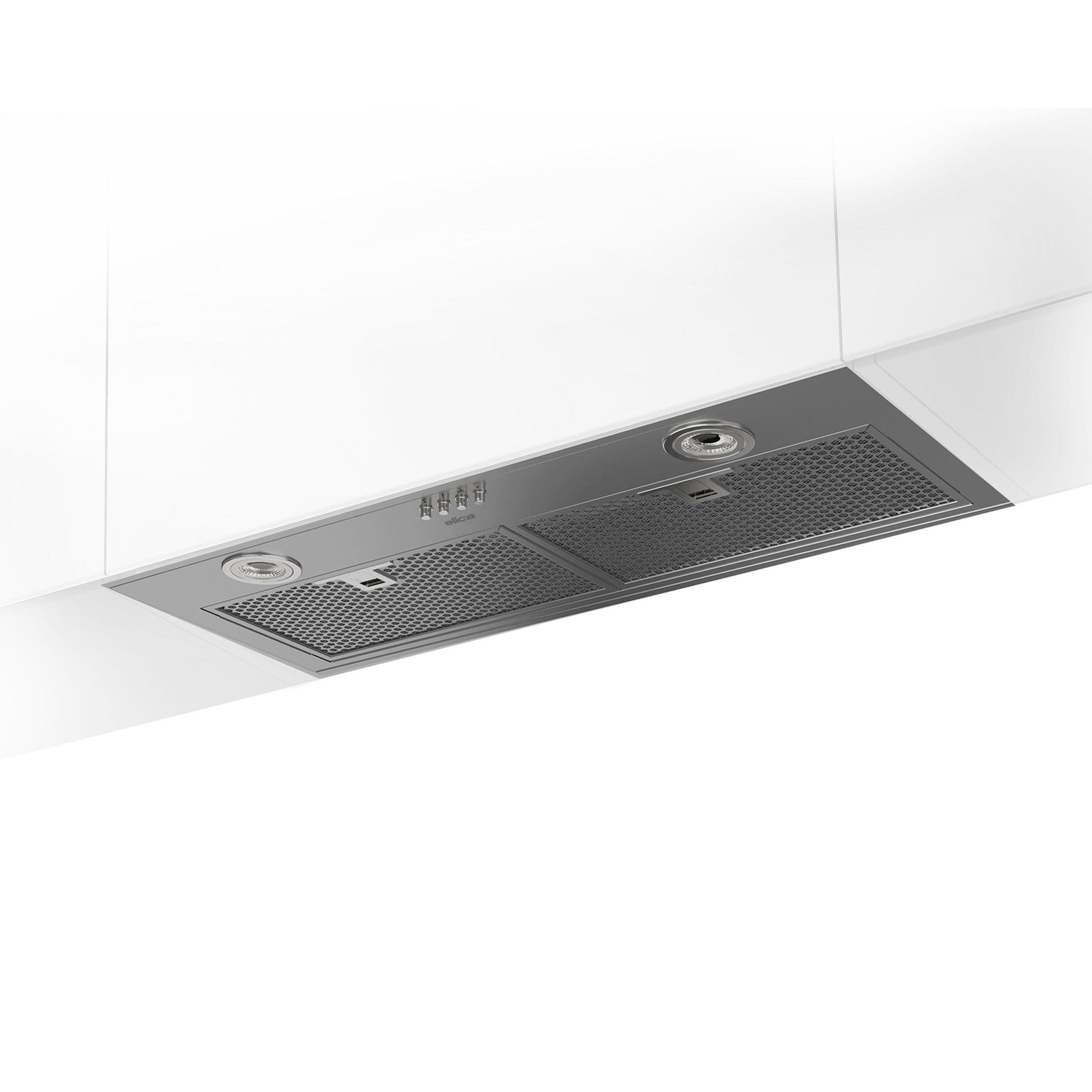

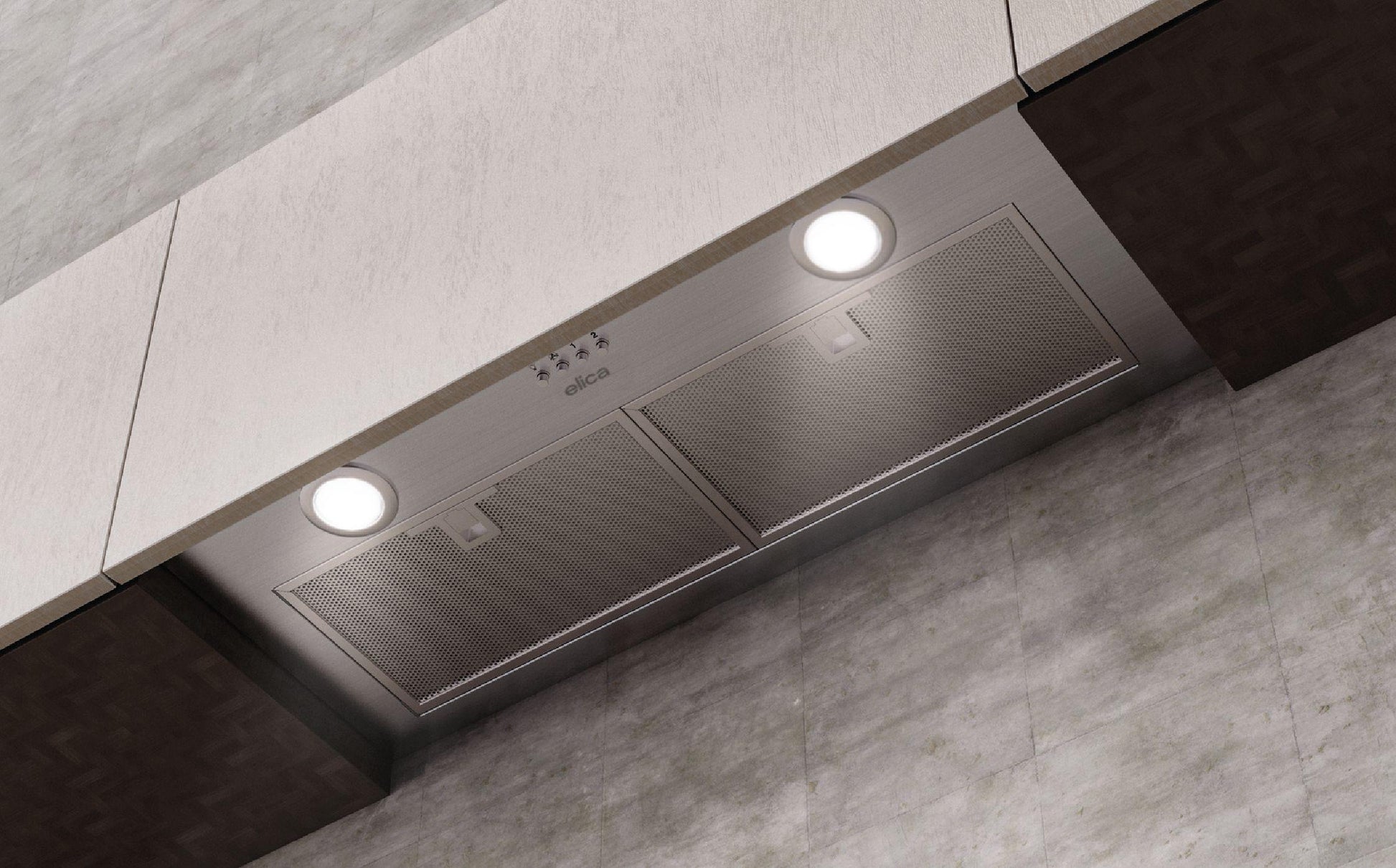

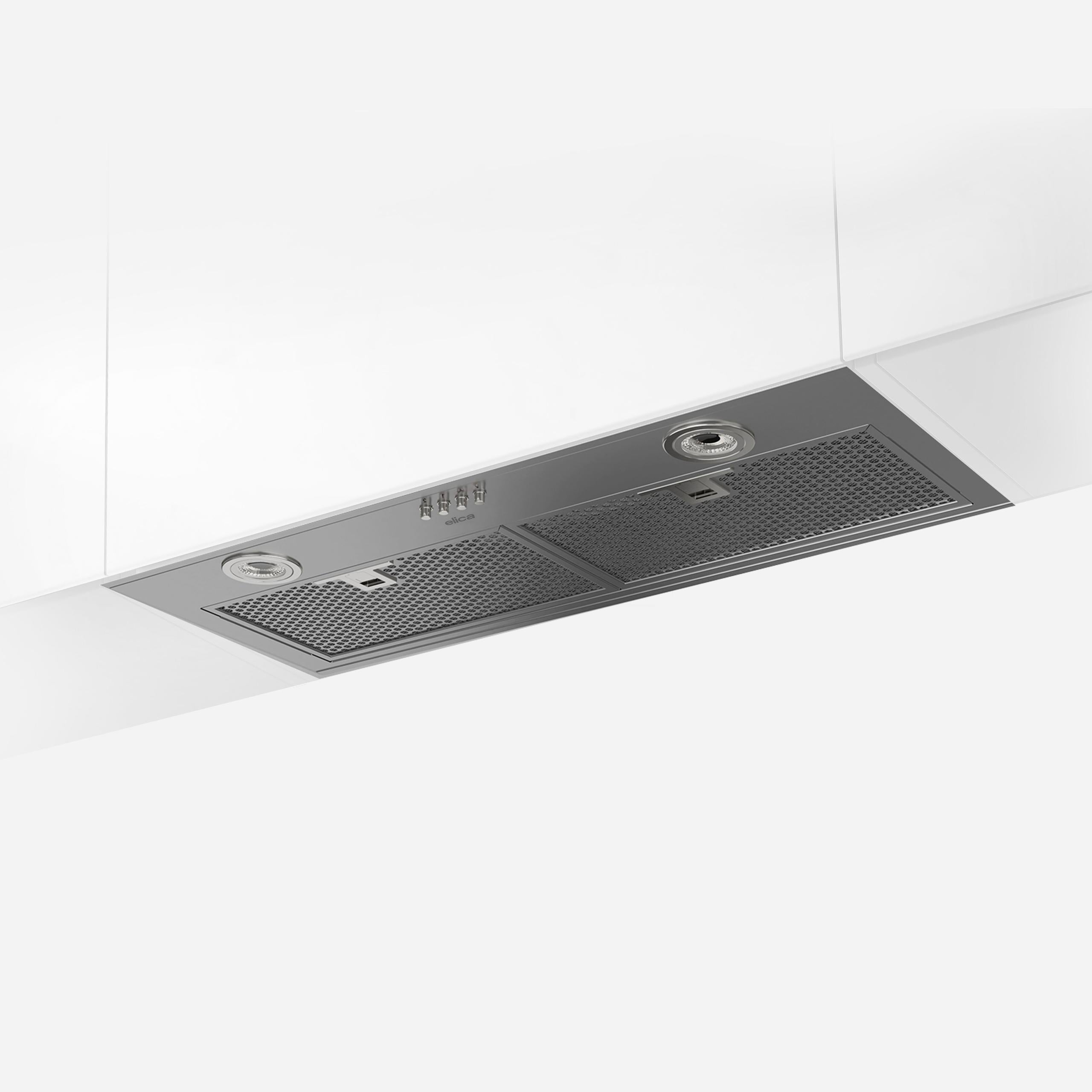

Elica EAS430S1 Asti 30 Range Hood Wide - 400Cfm
Rebates &
Promotions
Exclusive savings on qualifying items.
Asti 30 is designed for discreet mounting inside cabinetry, fits perfectly into 12” deep cabinetry, and is ideal for kitchens where space is limited or the range hood needs to be out of sight. Asti 30 comes equipped with a powerful 400 CFM blower that can handle most cooking needs. Convenient mechanical push button controls operate the 3-speed blower and LED lighting, while dishwasher-safe anodized aluminum mesh filters covered by a stainless steel protective layer, o er easy maintenance. Asti 30 is designed for standard ducted or recirculating installation, now with a snap system that make it safer and easier to install.
- Led light Super easy installation Top or rear outlet
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 15.20 |
| NET WEIGHT (kg) | 11.00 |
| CARTON LENGHT (mm) | 389.00 |
| CARTON HEIGHT (mm) | 426.00 |
| CARTON WIDTH (mm) | 837.00 |
| VOLUMEN (M3) | 0.14 |
| SHIPPING WEIGHT | 33.51 |
| NET WEIGHT | 24.25 |
| CARTON LENGHT | 15.31 |
| CARTON HEIGHT | 16.77 |
| CARTON WIDTH | 32.95 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light Super easy installation Top or rear outlet |
| WIDTH (IN) | 30' |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 11.00 |
| db (max) | 51.00 |
| SONES | 0.3 - 5.0 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6' |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6' |
| ELECTRIC (VOLTS) | 120 V/60 Hz |
| AMPERAGE | 2.2 A |
| HERTZ | 60.00 |
| WATTS | 260.00 |
| LIGHTING | LED 2 x 6.5 ww 3000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 3000.00 |
| GREASE FILTER TYPE | Dishwasher-safe, Aluminum Mesh + Stainless Steel Layer |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Mechanical Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS | 76 x 30 x 24 |
| DIMENSIONS inches | 30' x 12 x 9 1/2 |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 9 1/2' |
| Maximum Overall Height - Top to Bottom | 14 1/2 |
| Overall Height - Top to Bottom | 9 1/2' |
| Overall Width - Side to Side2 | 30' |
| Overall Depth - Front to Back | 12' |
| Hood Height | 9 1/2' |
| Minimum Compatible Ceiling Height | NA |
| Maximum Compatible Ceiling Height | NA |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36' |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02770 |
| CHIMNEY EXTENTION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | KIT0175561 |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| cUL listed | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| VERSION ADVANCES | REAR OUTLET |
| CERTIFICADO NOM | NA |
