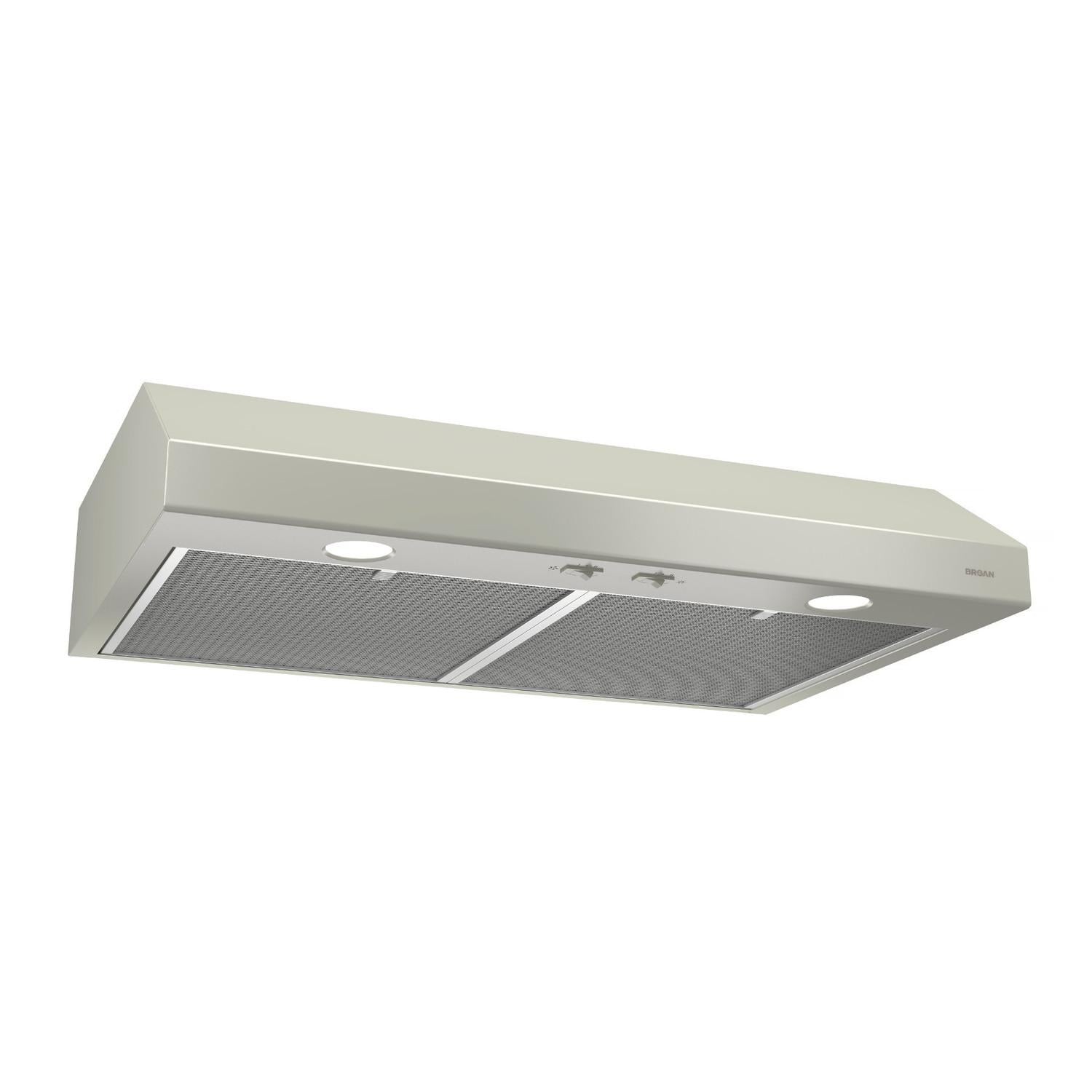

Broan BCSD136BC Glacier 36-Inch 300 Max Blower Cfm 5 Sones Bisque Range Hood
Glacier 36-Inch 300 Max Blower Cfm 5 Sones Bisque Range Hood
- Clean lines and contemporary style in an under-cabinet convertible range hood that will complement nearly any kitchen
- Hidden rocker switches adjust fan speed and lighting levels
- Captur™ system and 300 Max Blower CFM is 97.4% efficient in removal of smoke and odor from cooking
- Convertible to accommodate either top or rear venting applications or non-ducted operation using charcoal filters, which are sold separately (Filter Model HFP36)
- 2 dishwasher-safe open mesh filters feature advanced high-flow technology to grab more airborne grease
- 2-LED bulbs (purchase separately) provide warm light over the cooking surface, adjustable to high or low levels
- 1-year limited manufacturer s warranty
- EZ1 system enables easy single-person installation in up to half the time of traditional methods
- Range hood is installed as hardwired or with an optional power cord kit (HCK44; sold separately)
| Filter Type | Open Mesh |
| Heat Sentry™ | No |
| HVI Certified | Yes |
| Lighting Type | LED |
| Sound Level (Sones) | 1.5 |
| UL Listed | Yes |
| ADA Compliance | Yes |
| Damper Included | No |
| ENERGY STAR® certified | No |
| Light Bulb Wattage | 50 |
| Light Bulbs Included | No |
| Light Levels | 2 |
| Material | Steel |
| Nightlight Or Nighlight Setting | No |
| Ductless Recirculation Capable | Yes |
| Ductless Filter Or Kit Included | No |
| Remote Operation Capable | No |
| Speed Levels | 2 |
| Switch Control Type | Rocker |
| Rated Voltage | 120 |
| Boost Mode | No |
| Country of Origin | Mexico |
| Rated Amps | 1.4 |
| Product Depth | 19.625 |
| Product Height | 6' |
| Product Width | 36' |
| Built-In Timer | No |
| Capture Efficiency | 97.4 |
| CFM | 300 Max |
| Diameter | 7' Round |
| Vent Type | Convertible Built-In |
| Duct Direction | Horizontal/Vertical |
| Bulb (Recommended Type) | GU10 MR16 |
| Manufacturer Warranty | 1 Year |
| Wattage | 168 |
Specification Sheet
Installation Guide
Range Hood Cord Kit Installation Guide
ADA Wiring Instructions
Range Hood Compatibility P2RW P3RW Wall Switch
ADA High Voltage Connection
Installation Guide
Range Hood Cord Kit Installation Guide
ADA Wiring Instructions
Range Hood Compatibility P2RW P3RW Wall Switch
ADA High Voltage Connection
Bisque or Off-white
