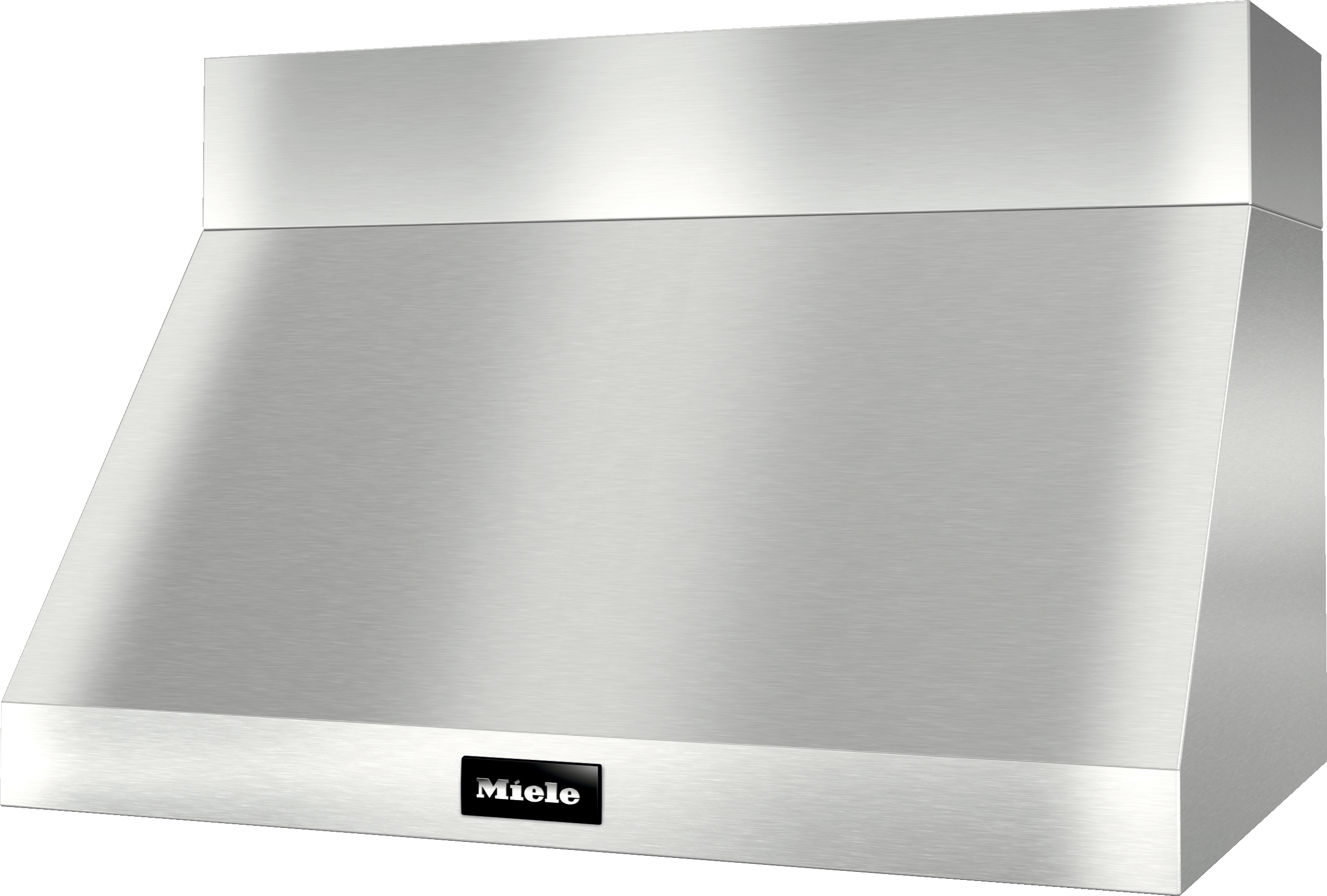

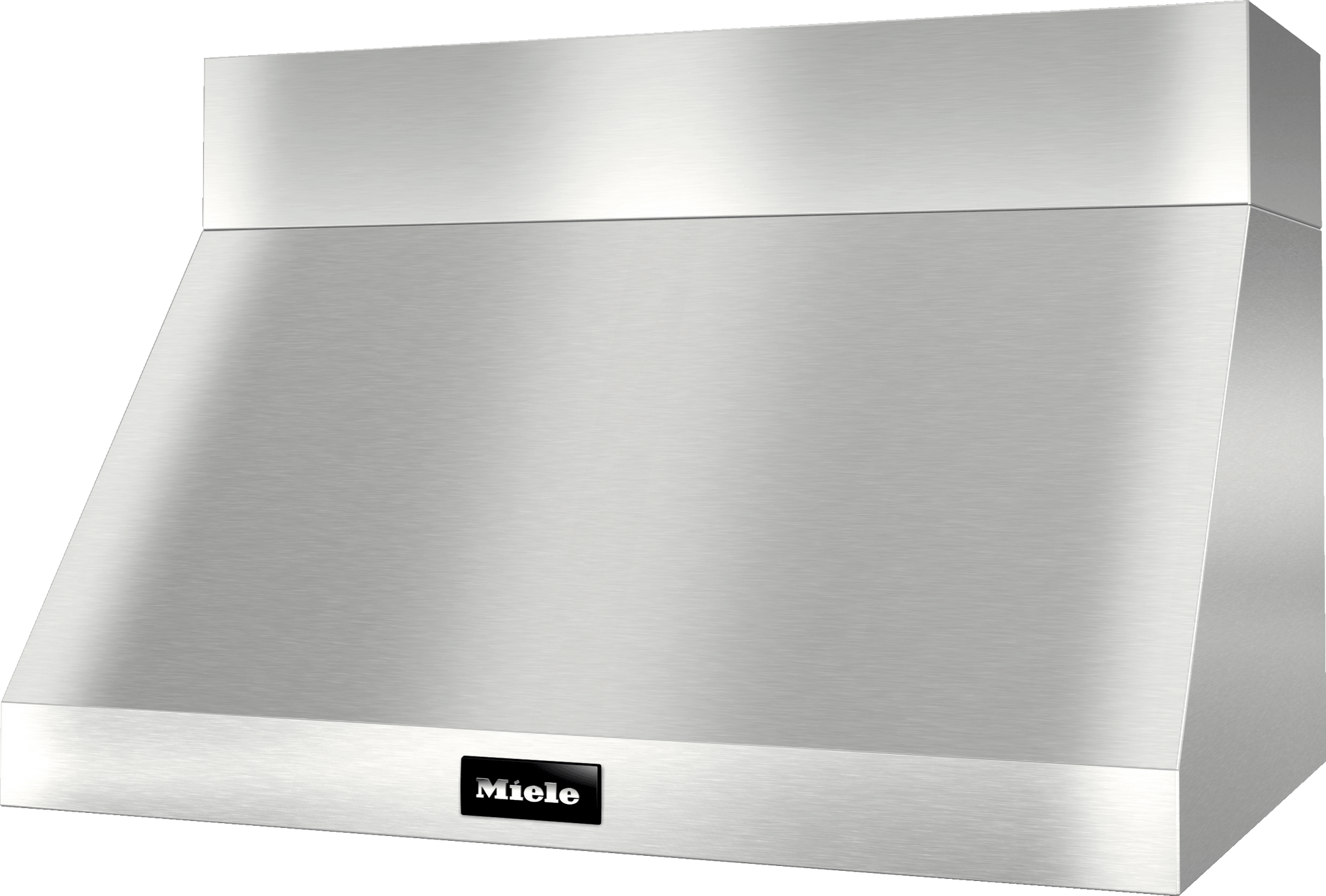

Miele DAR12303 Dar 1230-3 Stainless Steel - 36-Inch Wall-Mounted Ventilation Hood For Perfect Combination With Ranges And Rangetops. Blower Sold Separately
Miele DAR12303 Dar 1230-3 Stainless Steel - 36-Inch Wall-Mounted Ventilation Hood For Perfect Combination With Ranges And Rangetops. Blower Sold Separately
Colors:
Stainless SteelTHIS ITEM QUALIFIES FOR FREE DELIVERY!
EXTENDED PROTECTION
3 year plan
$188.995 year plan
$399.00Available to Order
Couldn't load pickup availability
Miele DAR12303 Dar 1230-3 Stainless Steel - 36-Inch Wall-Mounted Ventilation Hood For Perfect Combination With Ranges And Rangetops. Blower Sold Separately
Miele CleanCover
Miele's unique easy cleaning: The sealed, smooth surface prevents contact with the electrical components/motor.
Temperature sensor
Continuous monitoring: the temperature sensor ensures safety and prevents unnecessary energy consumption.
Knob controls
Beautiful and functional: Metal rotary controls complement the harmonious design of the range hoods.
LED ClearView lighting
Eco-friendly and very durable: With up to 4 x 2 W, they provide the cooktop with uniform, warm downlighting.
- Professional design - stainless steel hood, 36 (913) in (mm) wide
- Perfect illumination - LED ClearView lighting
- Dishwasher-safe - 3 high-quality stainless steel grease filters
- Safe and easy to clean - Miele CleanCover
- Auto-vent safety sensor - protects against overheating
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Wall ventilation hood | Yes |
| Required accessories | |
| Blower | Yes |
| Duct cover | Yes |
| Operating modes | |
| Recirculated mode | Can be retrofitted |
| External operation possible | Yes |
| User convenience | |
| Rotary knob | Yes |
| Power levels (number excl. Intensive) | 3 |
| Temperature sensor | Yes |
| Cleaning convenience | |
| Easy to clean canopy interior CleanCover | Yes |
| Dishwasher-safe grease collection channel | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel baffle filters | 3 |
| Lighting | |
| Number x W | 3 x 3 W |
| Fan option (buy separately) | |
| DRIB XL internal blower in CFM (m (h) | 1189 |
| DRIB XXL internal blower in CFM (m /h) | 1869 |
| DREB XL external blower in CFM (m /h) | 1189 |
| DREB XXL external blower in CFM (m /h) | 1869 |
| Technical data | |
| Canopy width in in.(mm) | 36 (913) |
| Canopy width in inches | 35 15/16 |
| Canopy height in in.(mm) | 18 (457) |
| Canopy depth in in.(mm) | 24 1/8 (611) |
| Net weight in lbs. (kg) | 73 (33.0) |
| Length of electrical wire in ft (m) | 2 (0.8) |
| Standard plug fitted | Yes |
| Total connected load in kW | 0.809 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Diameter of vent connection in in.(mm) | 9 7/8 (250) |
| Standard accessories | |
| Non-return flap | Yes |
| EAN | |
| EAN | 4002516546948 |
