Miele DA4248VDSS Da 4248 V D Puristic Varia Stainless Steel - Island DéCor Hood With Energy-Efficient Led Lighting And Backlit Controls For Easy Use.
Rebates &
Promotions
Miele Kitchen Package Rebate - Receive up to a 10% Rebate with purchase of 3 or more qualifying Miele Kitchen Appliances. Download Valid: 01/01/2025-12/31/2025
Con@ctivity
Innovative convenience: the ventilation hood reacts automatically to settings on the cooktop.
Stainless-steel grease filters (10-layer)
Looks great and does a good job: Effective grease filtering and easy cleaning inside the dishwasher.
Silence
Efficient and quiet: The fan is effectively insulated with special soundproofing mats.
Filter saturation indicator
Easy filter replacement: a red light lets you know when the grease and/or charcoal filter is saturated.
Safety turn off
Sensible, even in case of operating errors: The ventilation hood switches off automatically after 10 hours.
Miele CleanCover
Protection and easy cleaning: The sealed, smooth surface prevents contact with cables and the motor.
Delayed shutdown
Odor-free room air: "after cooking, the blower can be set to switch off automatically after 5 or 15 minutes."

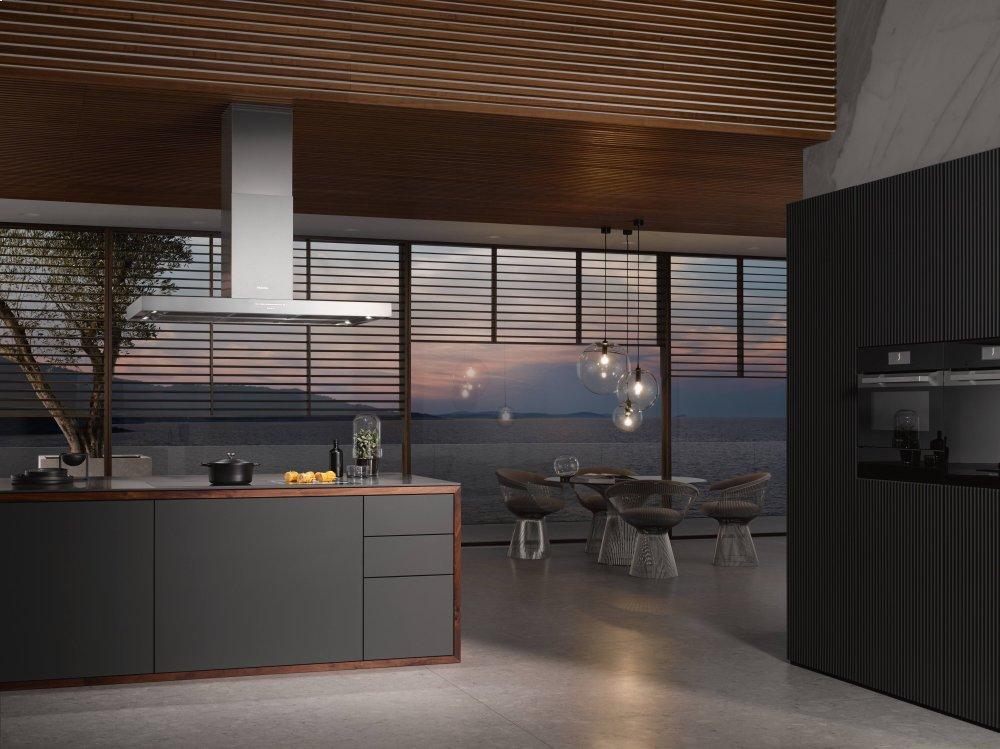

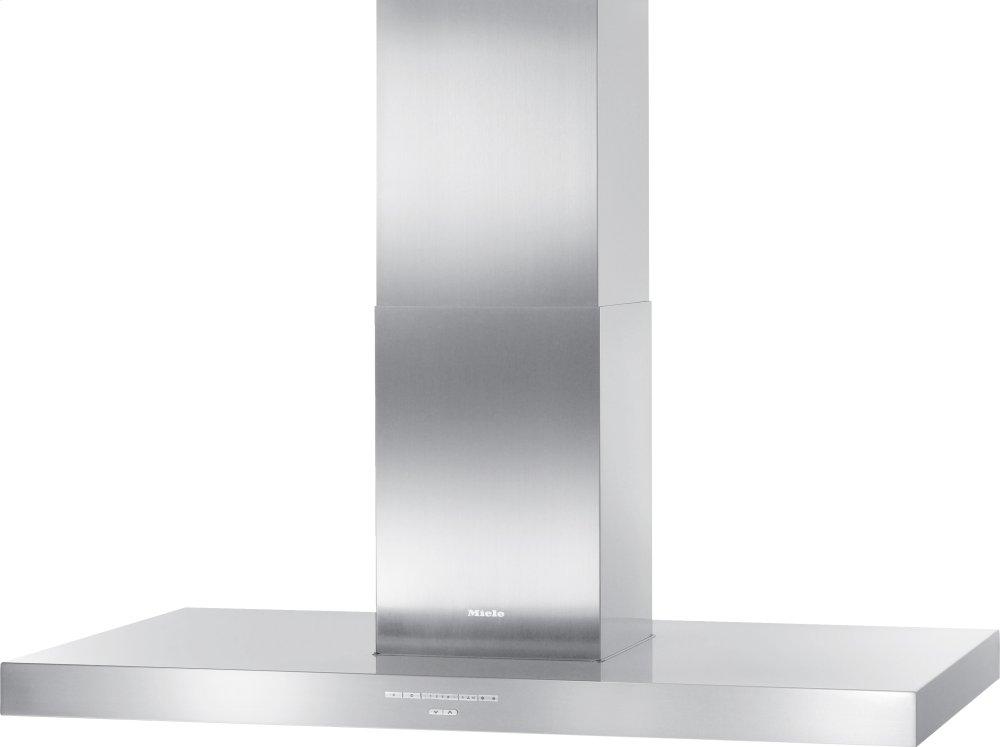

The DA 4248 V D Puristic Varia is a 48-inch (approximately 47⅛″ / 1198 mm) island-mounted decorative hood in stainless steel designed for high-end kitchens.

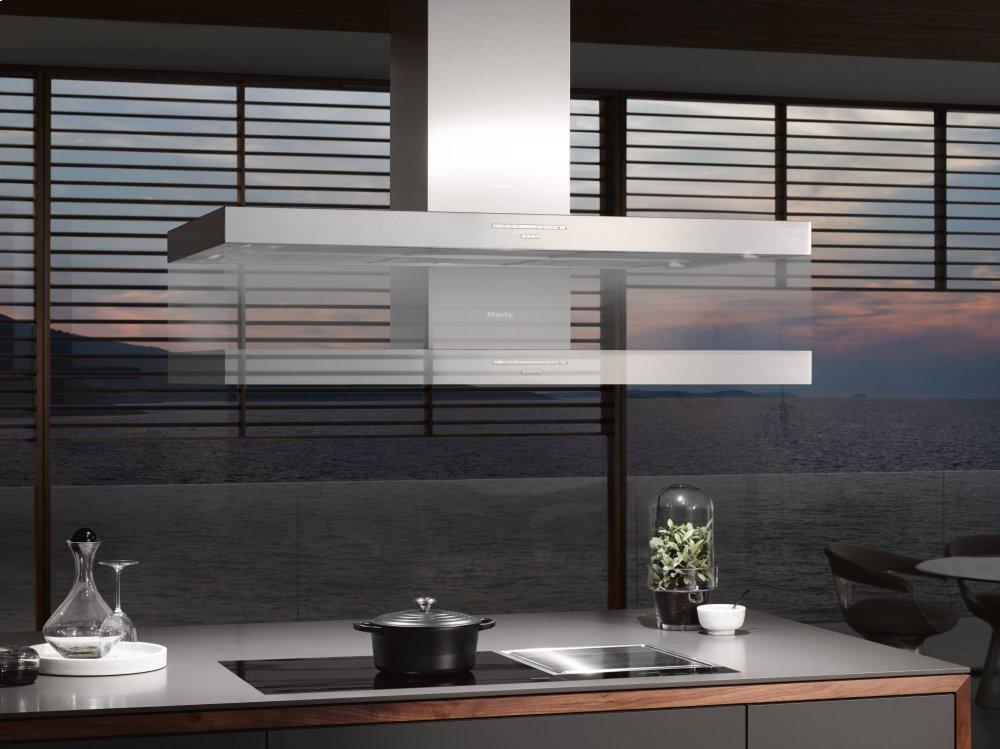

It features a motorised telescopic chimney that adjusts in height (approx. 29¾″ to 41¼″ / 755-1045 mm) for flexible installation.
- Timeless design - stainless steel canopy 47 1/4 (1198) in (mm) wide
- Unique user convenience - Con@ctivity
- Motorized chimney
- Powerful - 506.18 (860) ft /min (m3/h) in Booster level
- Energy-efficient and quiet
- Manufactured with great care by Miele & Cie. KG
- Safety information
| Design | |
| Island ventilation hood | Yes |
| Operating modes | |
| Recirculated mode | Exhaust air |
| Design | |
| Color | Stainless steel |
| User convenience | |
| Miele@home | Yes |
| Automatic function Con@ctivity | Yes |
| Electronic controls | Yes |
| Operation | Light-touch switches with LEDs |
| Power levels (number excl. Intensive) | 3 |
| Booster levels | 1 |
| Delayed shutdown for 5 or 15 minutes | Yes |
| Grease filter saturation indicator | Yes |
| Acoustic package | Yes |
| Hood in Motion | Yes |
| CleanCover | Yes |
| Cleaning convenience | |
| Easy-to-clean canopy interior - CleanCover | Yes |
| Filter system | |
| Number of dishwasher-safe stainless steel grease filters (10-ply) | 6 |
| Lighting | |
| Number x W | 4 x 3 W |
| Light intensity in Lx | 600 lx |
| Color temperature in K | 3500 Kelvin |
| Light dimmer function | Yes |
| Blower | |
| Dual-action blower | Yes |
| Exhaust air | |
| Air throughput in CFM in Booster | 430 |
| Air throughput | Values upon request |
| Air throughput with Booster level 1 (m /h) according to EN 61591 | 506.18 (860) |
| Safety | |
| Safety shut-off | Yes |
| Technical data | |
| Overall hood height for vented mode and external in inches (mm) | 29 3/4 (755)-41 1/4 (1045) |
| Overall min. height for vented and external in in. (mm) | 29 3/4 (755) |
| Overall max. height for vented and external in in. (mm) | 41 1/4 (1045) |
| Canopy width in in. (mm) | 47 1/4 (1198) |
| Canopy height in in. (mm) | 2 7/8 (70) |
| Depth of hood canopy in in. (mm) | 27 1/2 (698) |
| Minimum height above electric cooktops in mm | 24 1/8 (610) |
| Minimum safety distance above gas cooktops (max. 12.6 kW total power, burner 4.5 kW) in mm | 26 (660) |
| Net weight in lbs. (kg) | 109 (49.0) |
| Hard-wired | Yes |
| Total connected load in kW | 0.512 |
| Voltage in V | 120 |
| Fuse rating in A | 15 |
| Frequency in Hz | 60 |
| Number of phases | 1 |
| Installation note | |
| Vent connection at top | Yes |
| Diameter of vent connection in in. (mm) | 6 (150) |
| Telescopic chimney | Yes |
| Standard accessories | |
| Non-return flap | Yes |
| Communication module for Con@ctivity XKM 2000 DA | XKS 3000 Z |
| EAN | |
| EAN | 4002515990162 |
