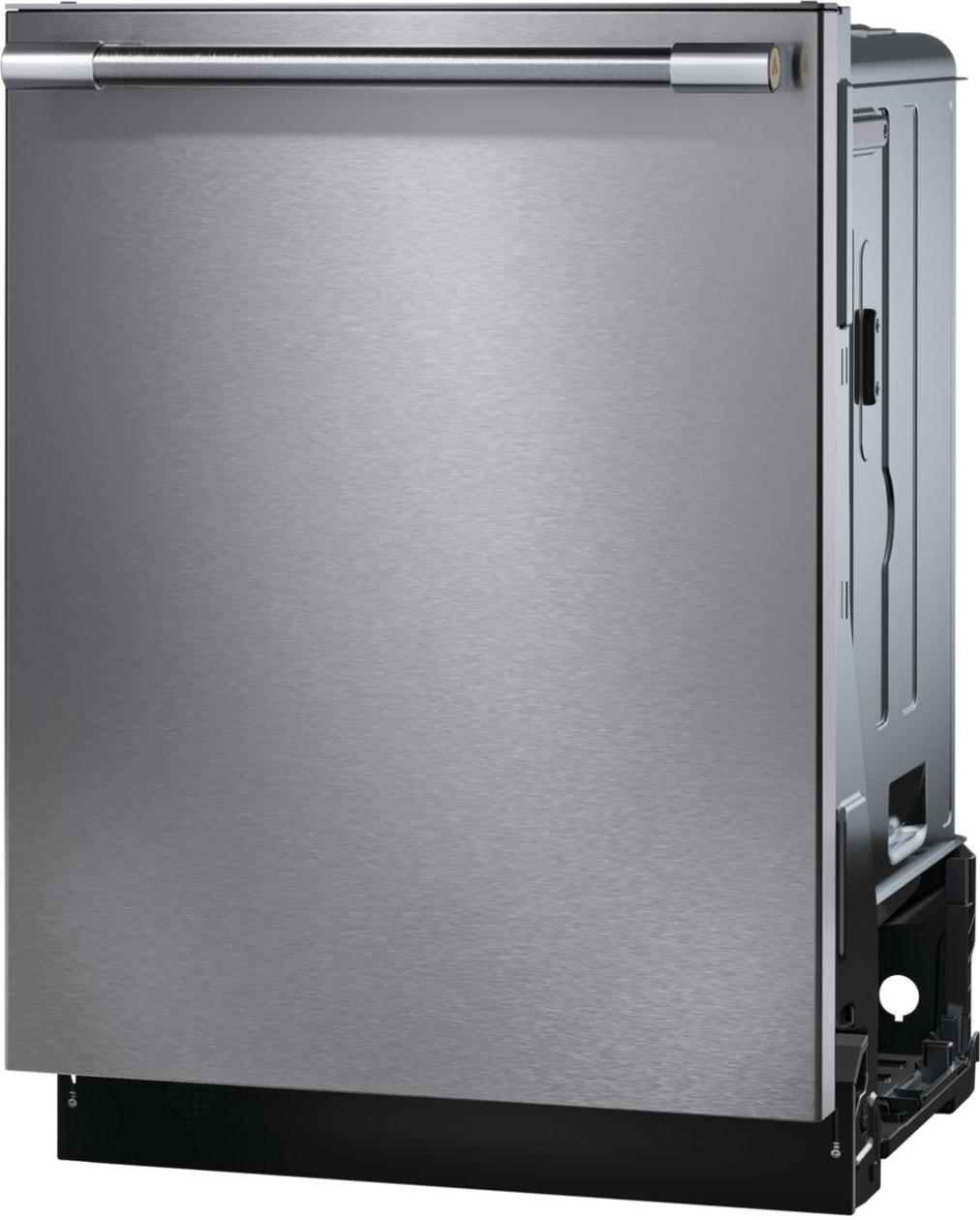

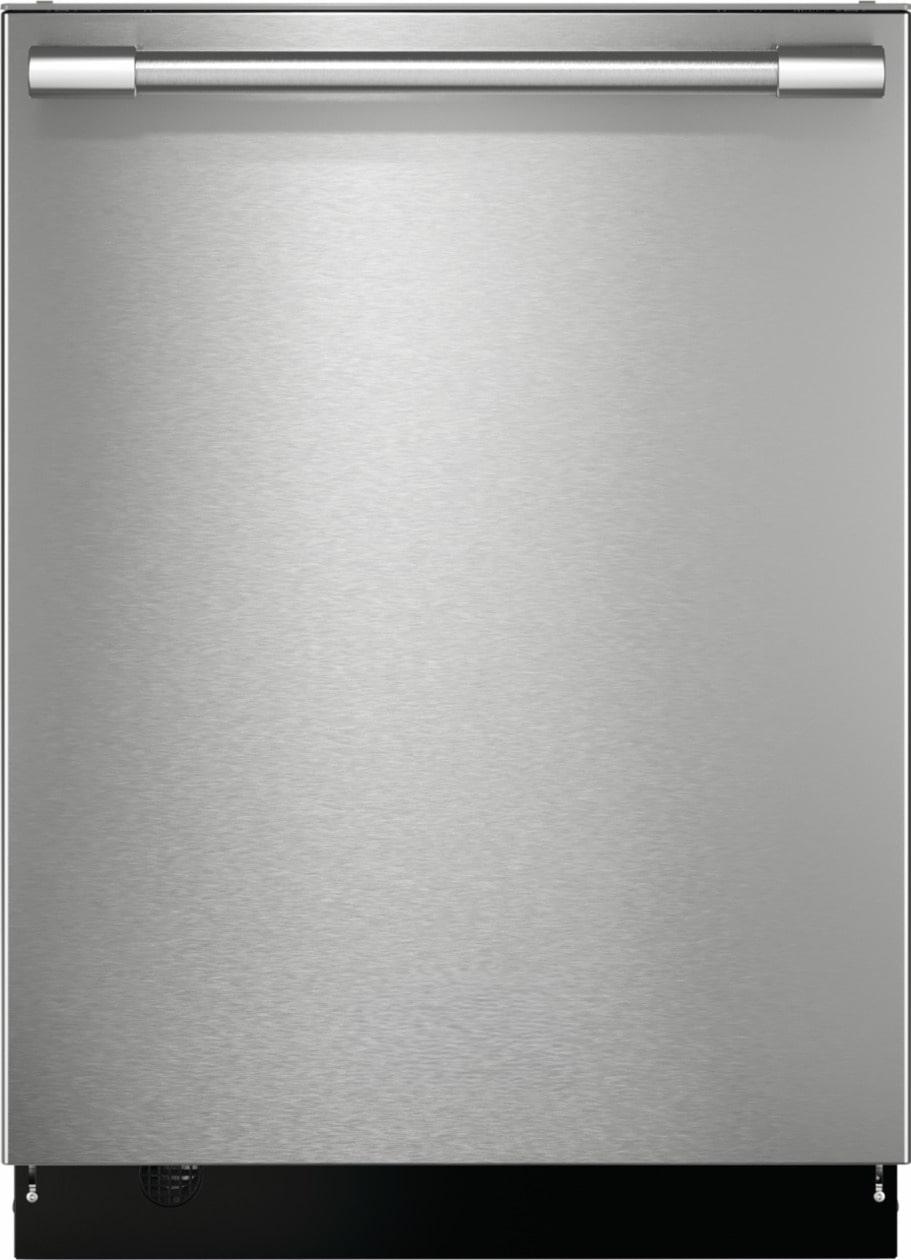

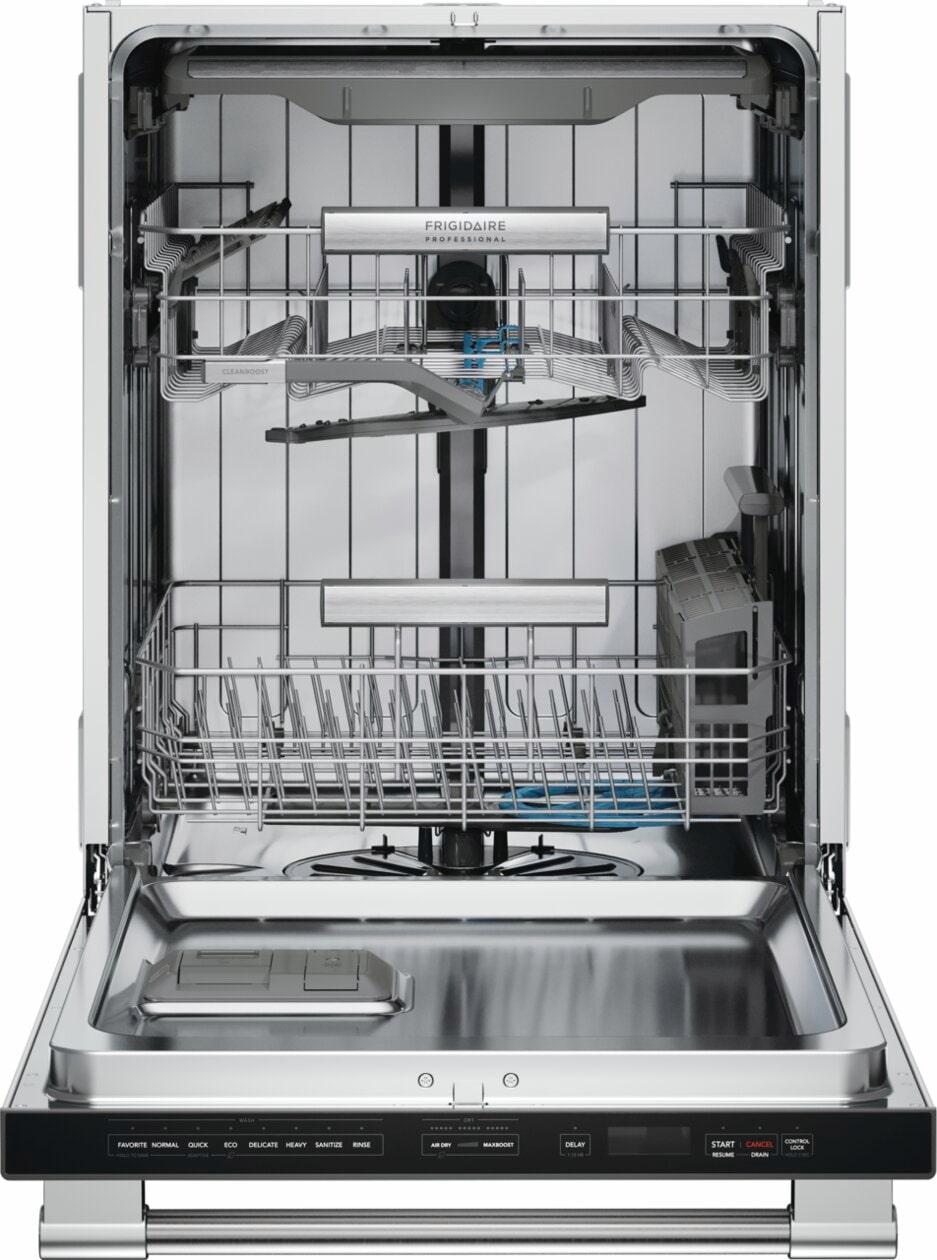

Frigidaire PDSH4816BF 24" Dishwasher
Rebates &
Promotions
Receive up to a $1000 rebate with purchase of qualifying Frigidaire Professional Appliances. - Receive up to a $1000 rebate with purchase of qualifying Frigidaire Professional Appliances. Download Valid: 08/21/2025-12/31/2025
Receive up to a $1000 rebate with purchase of qualifying Frigidaire Professional Appliances. - Receive up to a $1000 rebate with purchase of qualifying Frigidaire Professional Appliances. Download Valid: 08/21/2025-12/31/2025
Adaptive Quick Wash
The Adaptive Quick Wash Cycle adjusts cleaning performance and resources based on soil level for the cleanest and fastest quick wash in its class* * AHAM-DW-1-2020 tested against leading competitors with suggested retail pricing of $799-$999

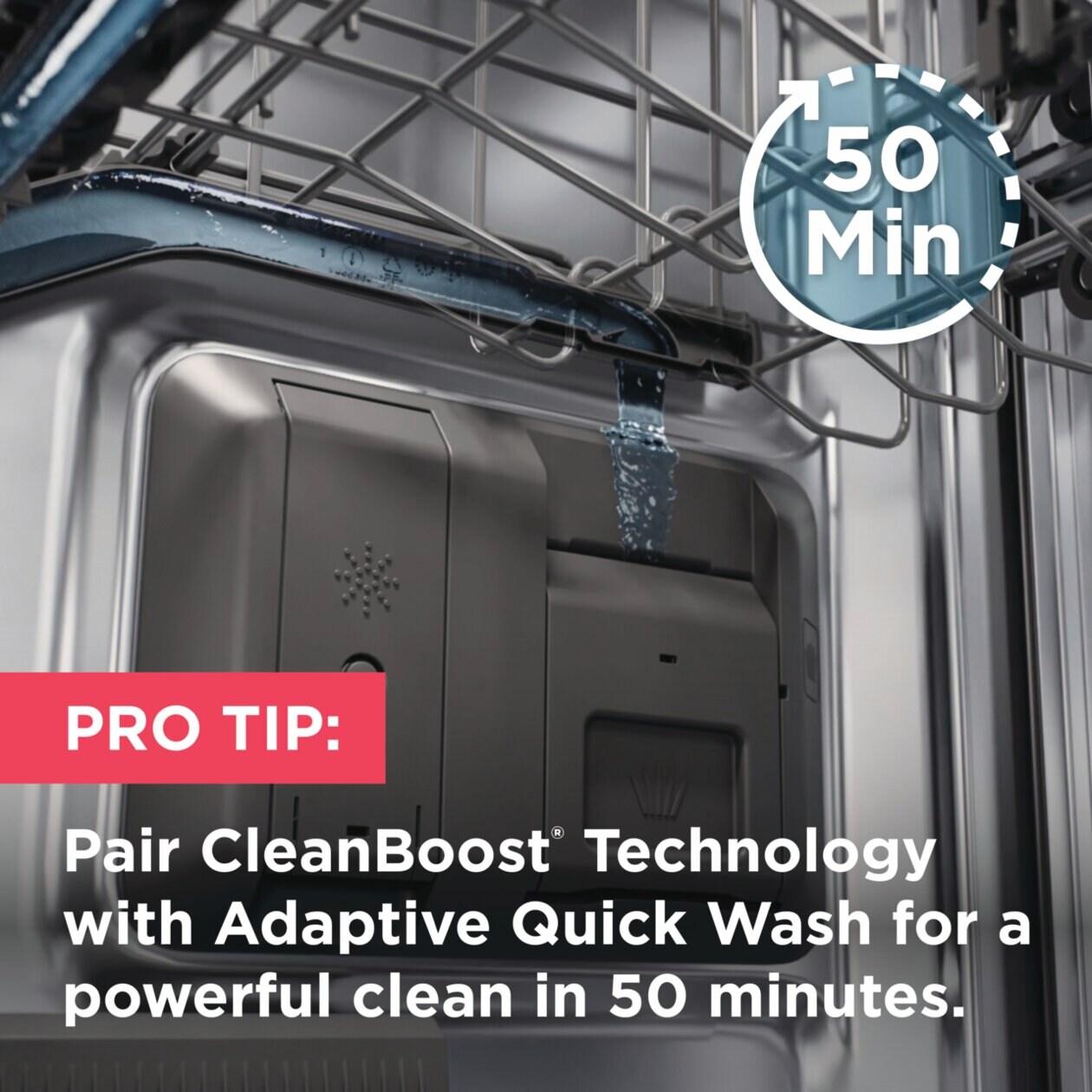

Amplify your Clean with CleanBoost®
Remove tough baked-on foods and boost the cleaning power of any detergent with our patented CleanBoost® premix technology
Keep your Kitchen Quiet with 45 dBa
Keep your kitchen quiet and the noise inside your dishwasher where it belongs with extra, quality insulation
Protecting Floors Against Leaks
In the event of a leak a sensor is triggered stopping the cycle and containing overflowed water in a tray at the bottom of the dishwasher
DishSense® Sensor Technology
Avoid pre-rinsing with our DishSense® sensor technology that automatically adjusts the cycle based on the soil level of your dishes
Target Spray Zones
Clean hard-to-reach spots with our Target Spray Zones that target tough spots for the ultimate clean
- Adaptive Quick Wash
- Amplify your Clean with CleanBoost®
- Keep your Kitchen Quiet with 45 dBa
- Protecting Floors Against Leaks
- DishSense® Sensor Technology
- Target Spray Zones

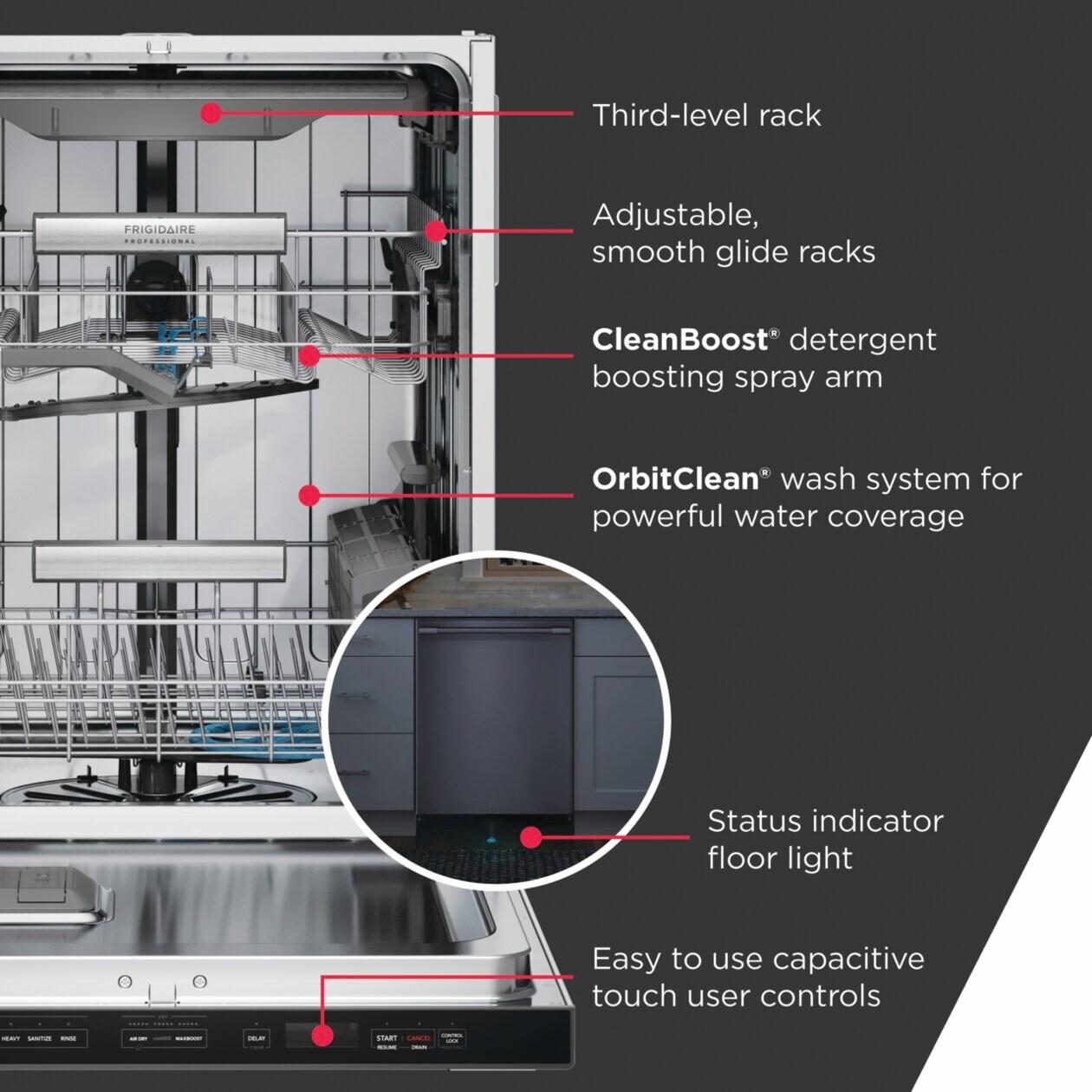

- OrbitClean® Wash System

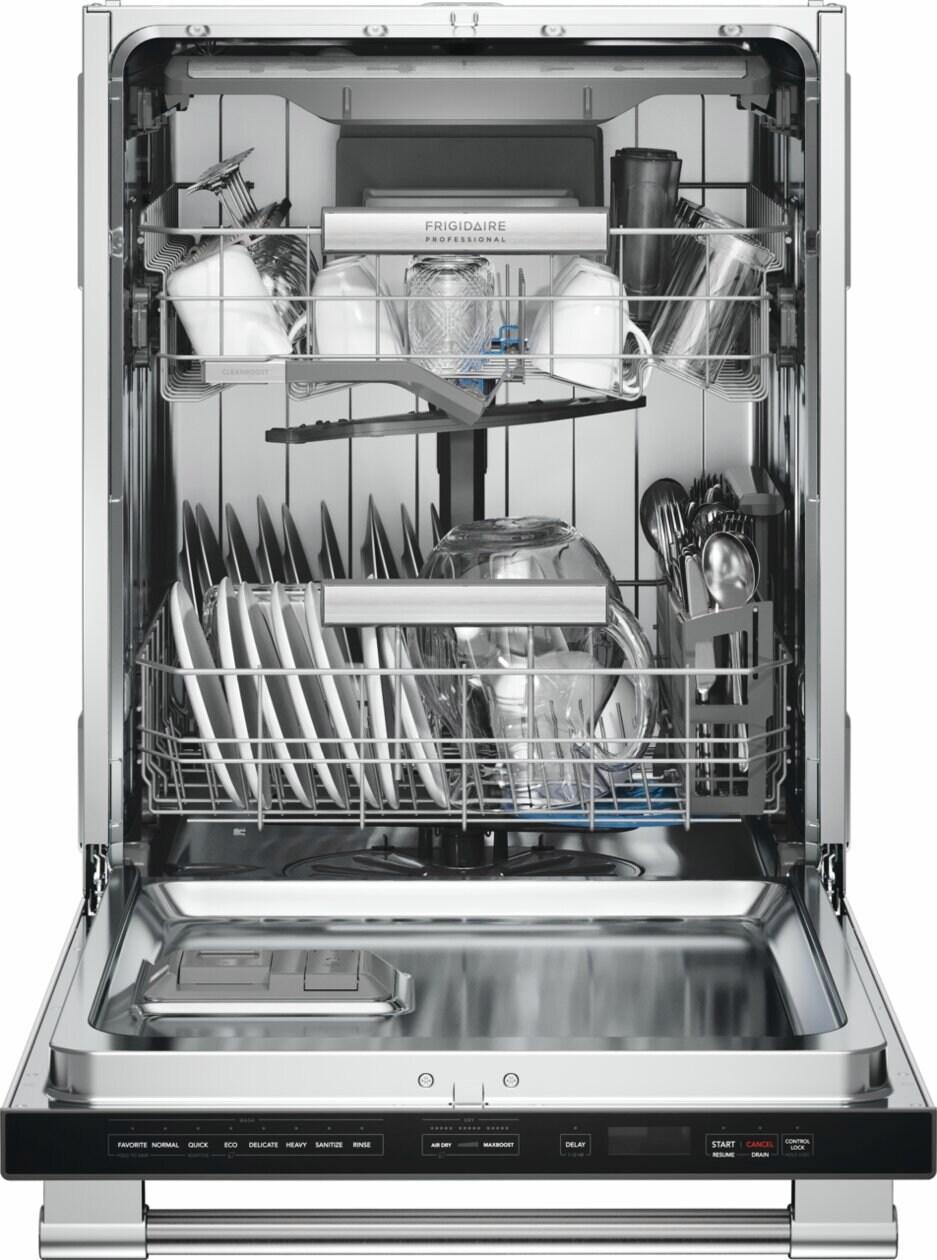

- Third-Level Rack
- Smooth Glide Upper Racks

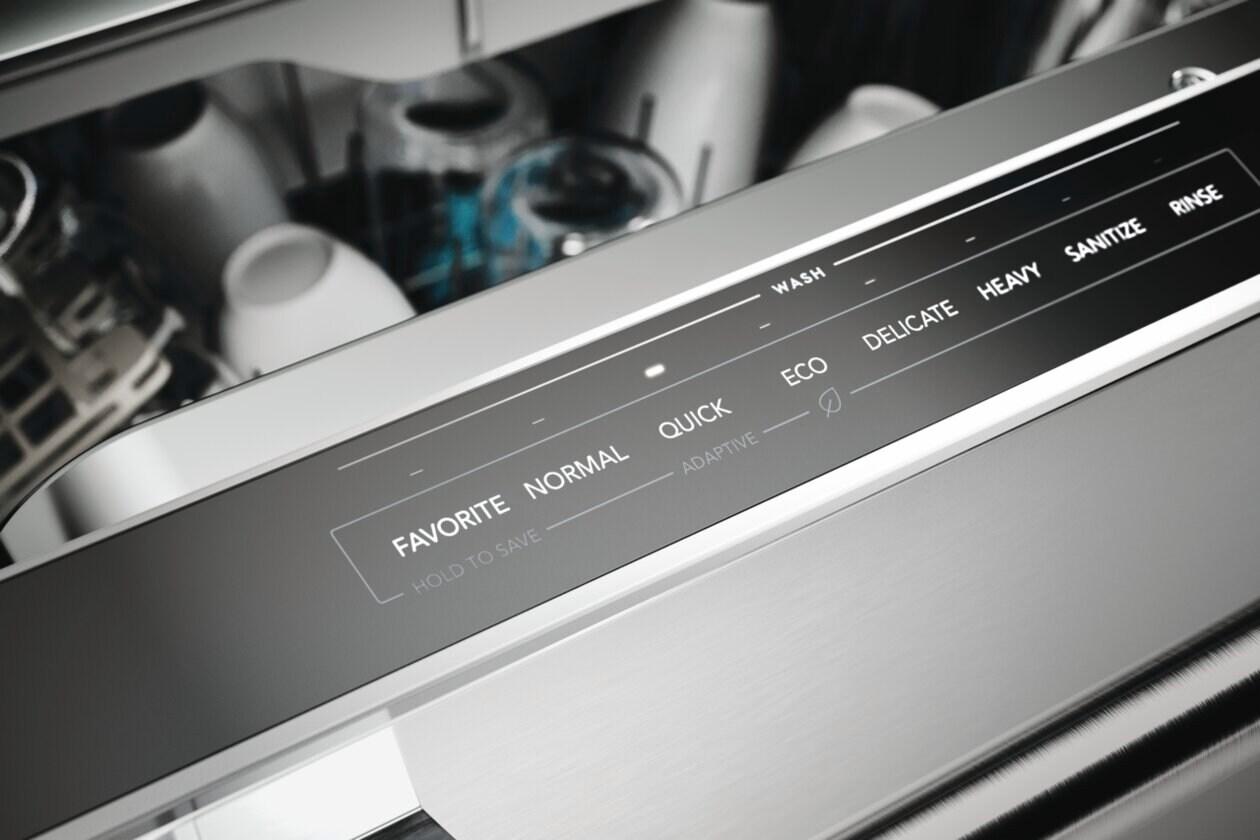

- Premium Capacitive Touch User Interface
- Adjustable Racks
- Enhanced Drying with MaxBoost™ Dry
- National Science Foundation® Certified
- Convenient LED Floor Beam Indicators
- ENERGY STAR® Certified
- Save 4,000 gallons of water every year
- Smudge-Proof™ Stainless Steel
| Product Line | Dishwasher |
| Power Type | Electric 120v |
| Installation Type | Built-In |
| Factory | Solaro |
| Color | Stainless Steel |
| Dishwasher | |
| Detergent Dispenser | Yes |
| Filter Material | Stainless Steel |
| Filter Trap | Removable |
| Filtered Water | 100 % |
| Hard Food Disposer or Filtration | Yes |
| Leak Detection System | Yes |
| Motor Speeds | Multi-Speed |
| Place Setting Capacity | 14 |
| Rinse Aid Dispenser | Yes |
| Smart Soil Sensor | Yes |
| Lower Spray Arm | Orbit |
| Middle Spray Arm | Bi-Beam |
| Upper Spray Arm | Spray Arm |
| Status Indicator Floor Beam | Yes |
| Tub Color | Stainless Steel |
| Tub Design | Tall Tub |
| Tub Material | Stainless Steel |
| Wash Levels | 5 |
| Wash System | Direct Feed |
| Dishwasher Cycles | |
| China Crystal | Yes |
| Energy Saver | Yes |
| Favorite | Yes |
| Heavy | Yes |
| Normal | Yes |
| Number of Cycles | 7 |
| Quick | Yes |
| Sanitize | Yes |
| Dishwasher Options | |
| Dry - Air | Yes |
| Dry - Heat | Yes |
| Dry - MaxBoost | Yes |
| Drying System | MaxBoost |
| Heated Dry | Yes |
| Start/Cancel | Yes |
| Lower Rack | |
| Maximum Height Clearance | 13 1/4' |
| Minimum Height Clearance | 11 1/4' |
| Number of Silverware Basket | 1 |
| Number of Silverware Basket Lids | 2 |
| Rack Coating | Nylon |
| Rack Type | Deluxe |
| Upper Rack | |
| Cup Shelf | Yes |
| Fold-Down | Yes |
| Maximum Height Clearance | 10 3/8' |
| Minimum Height Clearance | 8 1/2' |
| Rack Coating | Nylon |
| Rack Type | Adjustable |
| Stemware Holder | Yes |
| Targeted Wash Zone | Yes |
| Third Level Rack | |
| Third Level Rack | Yes |
| Rack Coating | Nylon |
| General Specifications | |
| Sound Level | 45 dBA |
| Annual Energy | 240 kWh |
| Product Weight | 86 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Controls | |
| Control Location | Top |
| Control Lock | Yes |
| Delay Start Hours | 1-12 Hours |
| Digital Display | Yes |
| Rinse Aid Indicator | Yes |
| Exterior | |
| Door and Handle Design | Handle |
| Door Latch | Pull |
| Door Type | StayPut |
| Exterior Finish | Smudge-Proof® Stainless Steel |

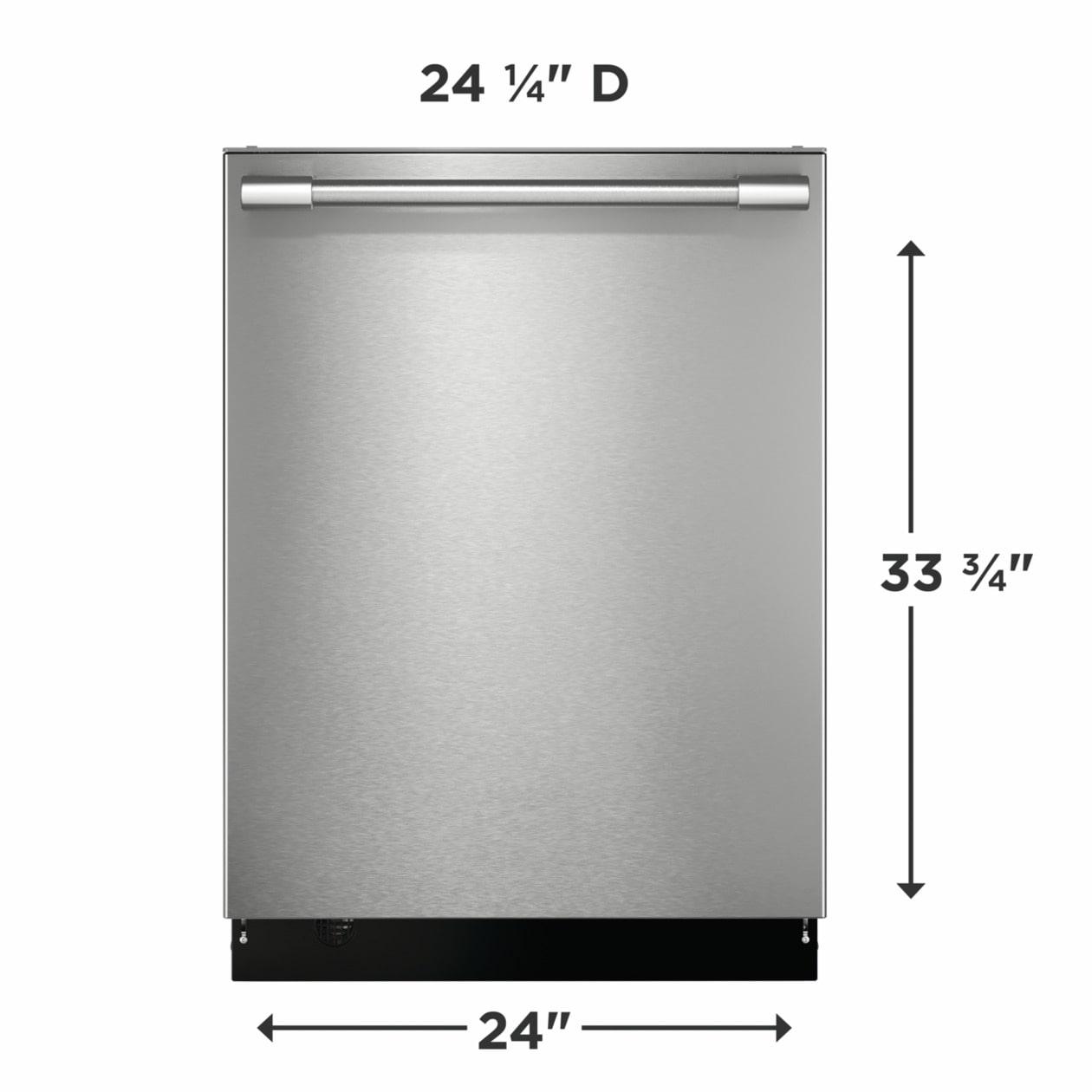

| Dimensions and Volume | |
| Minimum Height | 33 3/4' |
| Maximum Height | 35 3/4' |
| Width | 24' |
| Depth | 24 1/4' |
| Depth With Door Open | 50 1/4' |
| Depth With Handle | 26 69/100' |
| Electrical Specifications | |
| Amps @ 120 Volts | 15 Amps |
| Voltage Rating | 120 V |
| Installation | |
| Connection Location | Right Bottom |
| Number of Leveling Legs | 3 |
| Water Inlet Location | Left Bottom Front |
| Performance Certifications and Approvals | |
| CEE Tier | Tier 1 |
| cUL Listed | Yes |
| ENERGY STAR Certified | Yes |
| ETL Listed | Yes |
| Meets ASSE 1006 Requirements | Yes |
| NSF Certified | Yes |
| UL Listed | Yes |
