Bosch SHP78CM5N 800 Series Dishwasher 24" Stainless Steel
Rebates &
Promotions
Receive up to a $4000 rebate with purchase of 2 or more qualifying Bosch products plus eligible cooking bonuses. - Receive up to a $4000 rebate with purchase of 2 or more qualifying Bosch products plus eligible cooking bonuses. Download Valid: 07/10/2025-12/31/2025
Bosch Buy More Save More Delivery and Installation Allowance - Enjoy exclusive rebate savings with purchase of qualifying Bosch appliances. Download Valid: 11/01/2025-12/10/2025
Extremely Quiet: 42 dBA
Extremely Quiet Operation at 42 dBA: creating a dishwasher so quiet, you can't always tell it's running.
Fingerprint Resistant
Guards against fingerprints, so your kitchen always looks its best.
Sanitization for your dishes
Sanitize Option eliminates up to 99.9% of bacteria and meets NSF requirements for sanitization
ENERGY STAR Certified
This Bosch dishwasher is ENERGY STAR certified and meets or exceeds federal guidelines, for year-round energy savings
FlexSpace Tines
Flexspace Tines let you fold down every other tine in one simple step, so it's easier to hold different sized items.
Flexible 3rd rack
Expandable wings lower to accommodate items such as cooking utensils. Adjustable tines let you load larger silverware.
Touch Controls
The touch control panel has been simplified to offer the cycles and options you use most--all at the touch of your fingertips. Additional cycles and options are available through the Home Connect app.
RackMatic
RackMatic adjustable middle rack easily adjusts to 9 different positions, to allow taller items like stemware to fit in the middle rack while leaving room for pots and pans below
EasyGlide rack system for an even smoother glide
The EasyGlide rack system is redesigned to give you a smooth glide on all three racks-even when it s fully loaded

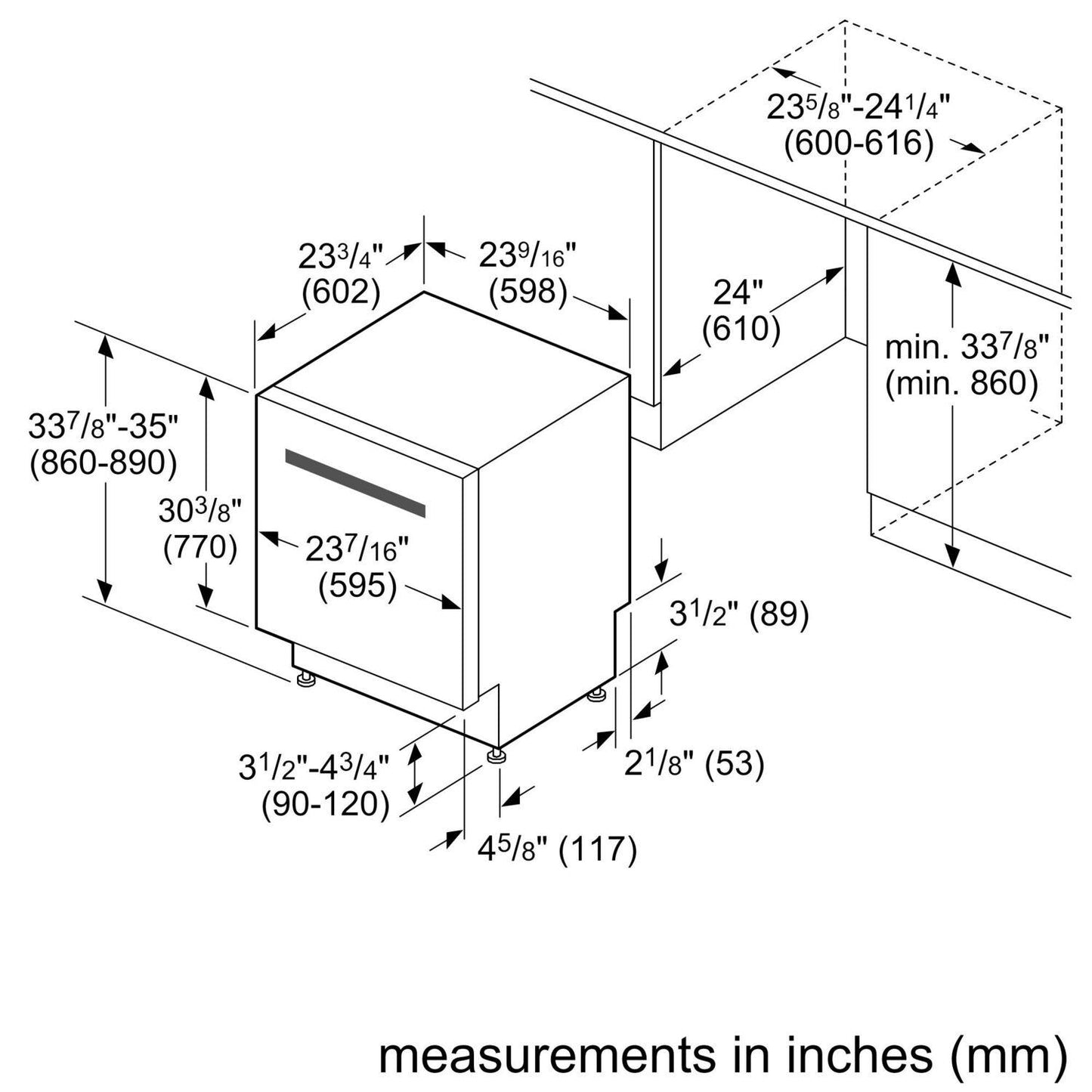

Dimensions & Capacity Width: 23.56"
Height: 33.875"
Depth: 23.75"
- Enhance your cleaning experience with Wi-Fi enabled Home Connect®
- Know when your dishwasher is running with InfoLight®
- Fit in tall items with RackMatic®
- 485 quality checks on every dishwasher
- This Bosch Dishwasher is ENERGY STAR® certified and energy efficient.
- 42 dBA -- the quietest dishwasher brand in the U.S.*
- The ultimate dry with CrystalDry™
- The deepest clean from PrecisionWash® with PowerControl™
- The Flexible 3rd Rack provides a versatile space for utensils
- EasyGlide™ rack system
| Features and Specifications | |
| General | |
| Appliance Width (in) | 23 9/16 |
| Height | 33 7/8 |
| Installation Type | Built-under |
| Number of Place Settings | 16 |
| List of Programs | Auto, Favorite, Heavy, Normal, Speed 60 |
| Cycle Options | Crystal Dry, Remote Start, Sanitize |
| Display | Yes |
| Silence Level | 42 dB(A) re 1 pW |
| 3rd rack | Flexible 3rd rack |
| Interior Light | No |
| Removable top | No |
| Power Cord Length | 67'' |
| Connectivity | |
| Home Connect™ | Yes |
| Home Connect Features | Remote Monitoring and Control |
| Size and weight | |
| Overall Appliance Dimensions (HxWxD) (in) | 33 7/8'' x 23 9/16'' x 23 3/4'' |
| Adjustable plinth | No |
| Net Weight | 96.000 lbs |
| Programmes | |
| Status indicator | End of program audible, Time remaining indic. internal |
| List of Programs | Auto, Favorite, Heavy, Normal, Speed 60 |
| Program 1 | Heavy |
| Program 2 | Auto |
| Program 3 | Normal |
| Program 4 | Speed 60 |
| Program 5 | Favorite |
| Reference program | Eco |
| Number of different wash temperatures | 6 |
| Temperature program 1 | 151-160 °F |
| Temperature program 2 | 127-140 °F |
| Temperature program 3 | 127-136 °F |
| Temperature program 4 | 122 °F |
| Temperature program 5 | 127-140 °F |
| Safety | |
| ChildLock | No |
| Consumption values | |
| Glass protection | No |
| Water consumption program 1 | 4.9-6.4 gal |
| Water consumption program 2 | 3.4-5.4 gal |
| Water consumption program 3 | 2.3-5.5 gal |
| Water consumption program 4 | 3.8 gal |
| Water consumption program 5 | 3.4-5.4 gal |
| Total Annual Water Consumption | 688 gal |
| Maximum temperature for water intake (°C) | 60 °C |
| Connection | |
| Watts | 1,440 W |
| Power Cord Length | 67'' |
| Fuse protection | 12 A |
| Plug type | Nema5-15P |
| Construction type | |
| Color / Material housing | Lacquered |
| Construction Type | Built-in |
| Drying System | Inherent heat, Zeolite |
| Height | 33 7/8 |
| Concealed heating element | Yes |
| Installation Type | Built-under |
| Tub material | Stainless steel |
| Water Softener | No |
| Appliance Width (in) | 23 9/16 |
