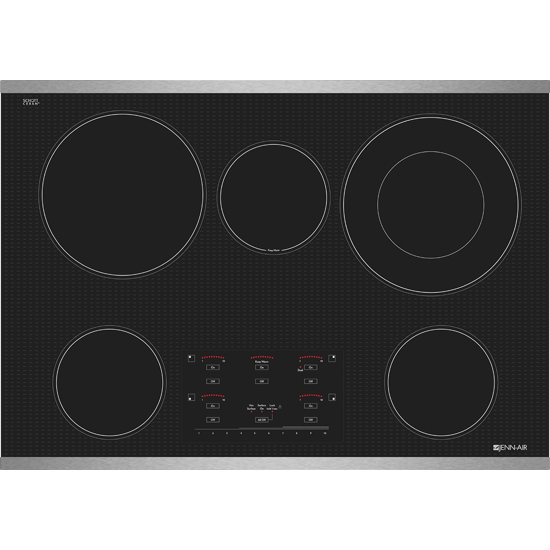

Jennair JEC4530YS Electric Radiant Cooktop With Electronic Touch Control, 30"

Overview This Jenn-Air® Luxury Electric Radiant Cooktop With Electronic Touch Controls Offers A Sleek Design And Responsive Performance. Its Glass Touch Controls And Five Radiant Elements Create A Smooth, Integrated Cooktop Surface, With A Number Of Element Sizes To Help You Achieve Optimal Heating For Different Cookware Sizes. Specifications Dimensions (Ul)(Li)Width: 30 13/16(/Li)(Li)Depth: 21 3/4(/Li)(Li)Cutout Width (In): 29 1/2(/Li)(Li)Cutout Depth (In): 20 1/2(/Li)(Li)Weight: 45(/Li)(/Ul) Electrical (Ul)(Li)Voltage: 240(/Li)(Li)Frequency: 60(/Li)(Li)Circuit Amps @ 240Vac: 40(/Li)(/Ul) Product Specifications (Ul)(Li)Fuel Type: Electric(/Li)(/Ul)

• Glass-Touch Electronic Controls - These sleek cooking controls feature a touch-responsive glass overlay integrated into the cooktop surface, with settings visible on an LED display.
• 10"/6" Dual-Choice Elements - Two element sizes allow you to match your cookware to the appropriate size, for more consistent and efficient heating.
• 6" Keep Warm Element - This element operates at a very low 100 watts and can be used as an area to keep cooked food warm until it's served or while other items finish cooking.
• Five Radiant Elements - These five fast-heating ribbon-shaped elements create heat from below the cooktop's sleek glass-ceramic surface.
• Two 6-Inch 1,200-Watt Elements - These elements, sized for optimal heating of smaller and medium-sized cookware, deliver 1,200 watts of cooking power.
• 9-Inch 2,200-Watt Elements - This luxury cooktop offers an ultra-high-powered 2,200-watt element, at an optimal size for medium-sized or large cookware.
• Simmer Function - This convenient Simmer Function provides the low, steady heat required for simmering sauces and soups.
• Environmentally Friendly Schott Ceran® Glass Surface - This high-performance glass cooktop can withstand intense heat while resisting cracking or chipping. It's also produced without releasing hazardous metals into the environment.
• "On" Indicator Light - The on indicator light signals when the cooktop power is activated.
• Built-In Oven Compatible - This luxury electric radiant cooktop can be installed over a single built-in wall oven, offering additional design flexibility.
