Summit ACF48WSSHVADA Built-In Undercounter Ada Compliant Frost-Free All-Freezer For General Purpose Use, With Digital Thermostat, White Cabinet, Stainless Steel Door, Thin Handle, And Lock
Summit ACF48WSSHVADA Built-In Undercounter Ada Compliant Frost-Free All-Freezer For General Purpose Use, With Digital Thermostat, White Cabinet, Stainless Steel Door, Thin Handle, And Lock
THIS ITEM QUALIFIES FOR FREE DELIVERY!
Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Summit ACF48WSSHVADA Built-In Undercounter Ada Compliant Frost-Free All-Freezer For General Purpose Use, With Digital Thermostat, White Cabinet, Stainless Steel Door, Thin Handle, And Lock
Accucold By Summit Appliance Carries A Range Of General Purpose And Medical All-Freezers Designed For Reliable, Frost-Free Storage Under The Counter. At 24" Wide And 32" High, The Acf48Wsshvada Is Ideally Sized For Various Institutional Settings With Ada Compliant Counters. The Front-Breathing Design Allows Built-In Installation, While The Fully Finished Cabinet Also Allows Freestanding Use. The User-Reversible Door Includes A Factory Installed Keyed Lock For Added Security. This Model Comes With A White Cabinet And Stainless Steel Wrapped Door With A Thin Pro Style Handle. It Includes A Hospital Grade Cord With A 'Green Dot' Plug For Added Security In High Traffic Areas. Full Frost-Free Operation Ensures Low Maintenance Operation, With An Internal Fan To Keep The Interior Evenly Cooled From Top To Bottom. A Digital Thermostat Is Located In The Front Kickplate, Letting Users Manage The Temperature Without Having To Open The Door. The Interior Includes Two Removable Steel Shelves. Made In The Usa, The Acf48Wsshvada Offers Quality Freezer Storage In A Conveniently Sized And Featured Unit. It Is Etl-S Listed To Nsf-7 Commercial Standards And Meets Ul-471.
- ADA compliant: 32" height is designed to fit under lower ADA compliant counters
- Slim undercounter dimensions: Sized at less than 24" wide and deep for an easy fit in space-challenged institutions
- Built-in capable: Make the best use of space by installing your appliance under the counter and flush with other cabinetry
- Frost-free operation: Low maintenance design ensures no frost buildup inside the unit
- Digital temperature control: Electronic controls located in the exterior kickplate for precise temperature management
- Stainless steel wrapped door: Durable design with easy cleanability
- Professional stainless steel handle: Thin 14mm diameter on stainless steel handle, mounted vertically for a sleek look
- Factory installed lock: Keyed lock for added security, located towards the top of the door to ensure convenient access

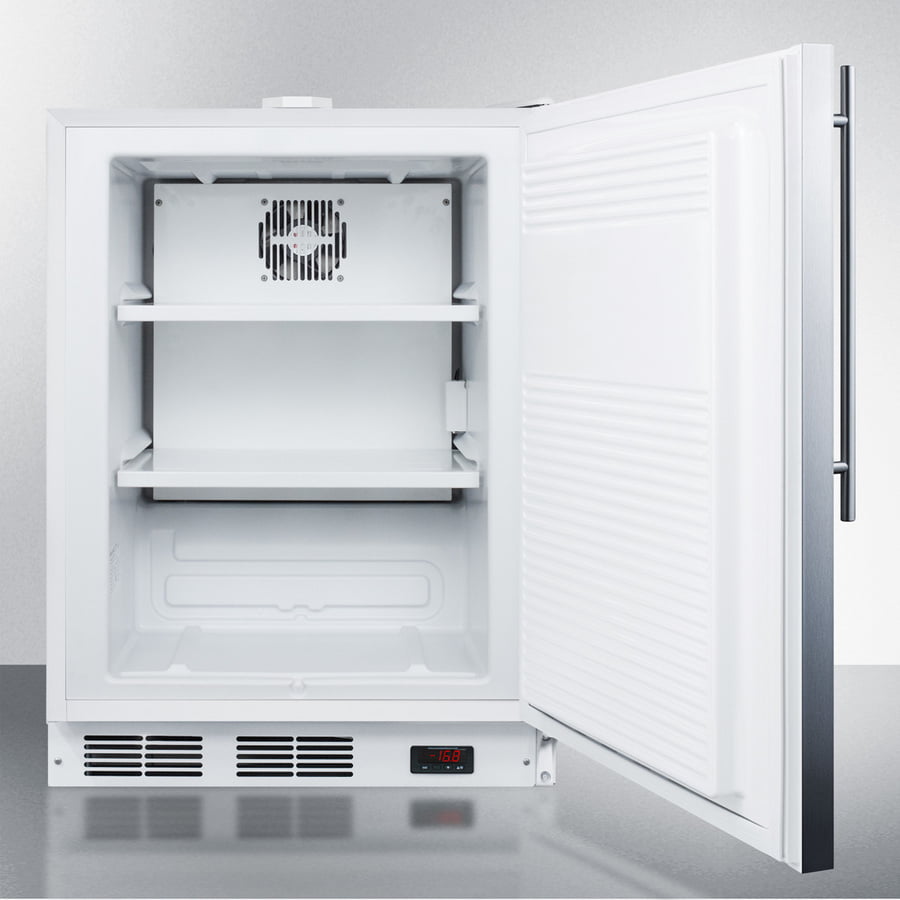

- Removable shelves: Includes two slide-out shelves made from durable steel
- Internal fan: Fan-forced cooling ensures the unit is evenly cooled from top to bottom
- Flat door liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Hospital grade cord: Secure three-pronged cord for added unit safety
- Fully finished white cabinet: Allows the unit to be used freestanding
- Matching refrigerator available: Pair with the FF7LBISSHVADA to create a matching set
- Foamed-in-place cabinet: Quality design ensures efficiently insulated interior
- Commercially approved: Design meets UL-471 and is ETL-S listed to NSF-7 commercial standards
- 100% CFC free: Environmentally friendly design does not contain ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 32.0' (81 cm) |
| Height to Hinge Cap | 32.25' (82 cm) |
| Width | 23.63' (60 cm) |
| Depth | 23.5' (60 cm) |
| Capacity | 3.1 cu.ft. (88 L) |
| Defrost Type | Frost-Free |
| Door | Stainless Steel |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.5 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 110.0 lbs. (50 kg) |
| Shipping Weight | 115.0 lbs. (52 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Freezer | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Shelf Type | Steel |
| Shelf Qty | 2 |
| Thermostat Type | Digital |
| Fan Type | Interior and Exterior |
| Refrigerant Type | R134a |
| Refrigerant Amount | 4.2 oz. |
| High Side PSI | 285.0 |
| Low Side PSI | 70.0 |
| Level Legs | 4 |
| Temperature Range | -5 to 10 F/-20 to -12 C |
| Door | |
| STO-Step-To-Open Door Pedal Step-to-open door pedal allows hands | free access to open the door 90 degrees |
| Handle | |
| TBC Copper Towel Bar Handle Upgrade Change this handle to a 12' vertically mounted towel bar style handle made from pure copper for antimicrobial protection | TBC Copper Towel Bar Handle Upgrade Change this handle to a 12' vertically mounted towel bar style handle made from pure copper for antimicrobial protection |
| Exterior | |
| Agion Cabinet Exterior cabinet and door treated with Agion silver antimcrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface | Agion Door Treat the door with Agion silver antimicrobial coating to reduce the growth of bacteria, fungi, molds, and other destructive microbes on appliance surface |
| LHD - Left hand door swing Door reversal to left hand swing | ODA - Open door alarm Add an open door alarm to audibly buzz when the door is left ajar. |
| SCD - Self-closing door Protect interior contents and reduce energy waste with the Self Closing Door Option | PH - Probe Hole Factory installed probe hole for customer supplied monitoring devices |
| Alarm Install a high/low temperature warning alarm with external temperature readout; meets most Health Dept. regulations | Latch for door Door latch requires manual release to open door. Ideal for yachts, RVs, coach buses, and other vehicles. |
| DL1 - Factory installed data logger USB Temperature Logger records interior temperature in 15 minute intervals to a USB flash drive for analysis on a PC or Mac | Extra key Extra keys available for purchase |
| SSK Stainless steel kickplate factory installed | DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
| Lock | |
| AC Keypad Keypad door lock powered by appliance power cord for keyless security | KEYPAD Battery-powered keypad door lock installed for keyless security |
