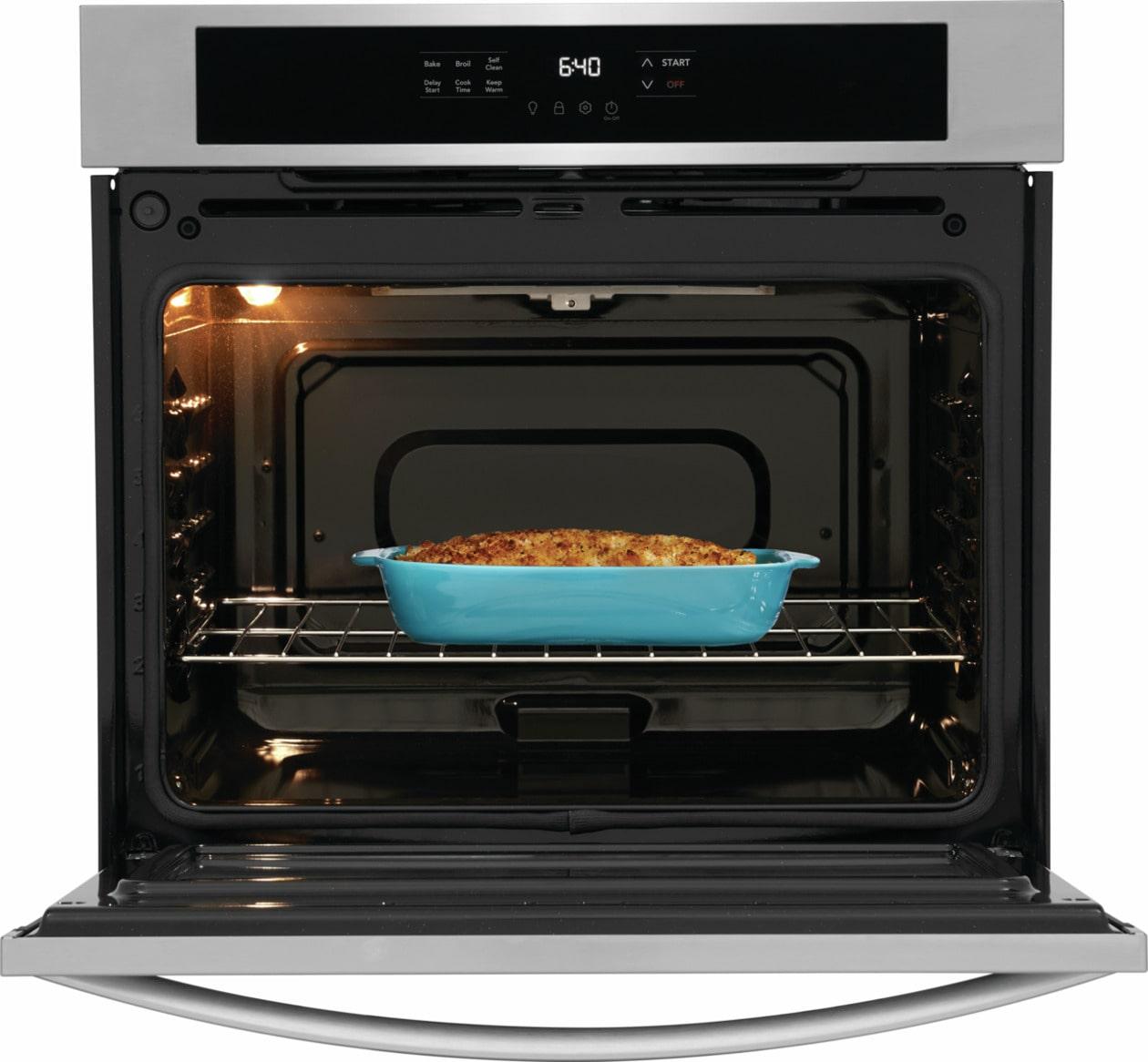

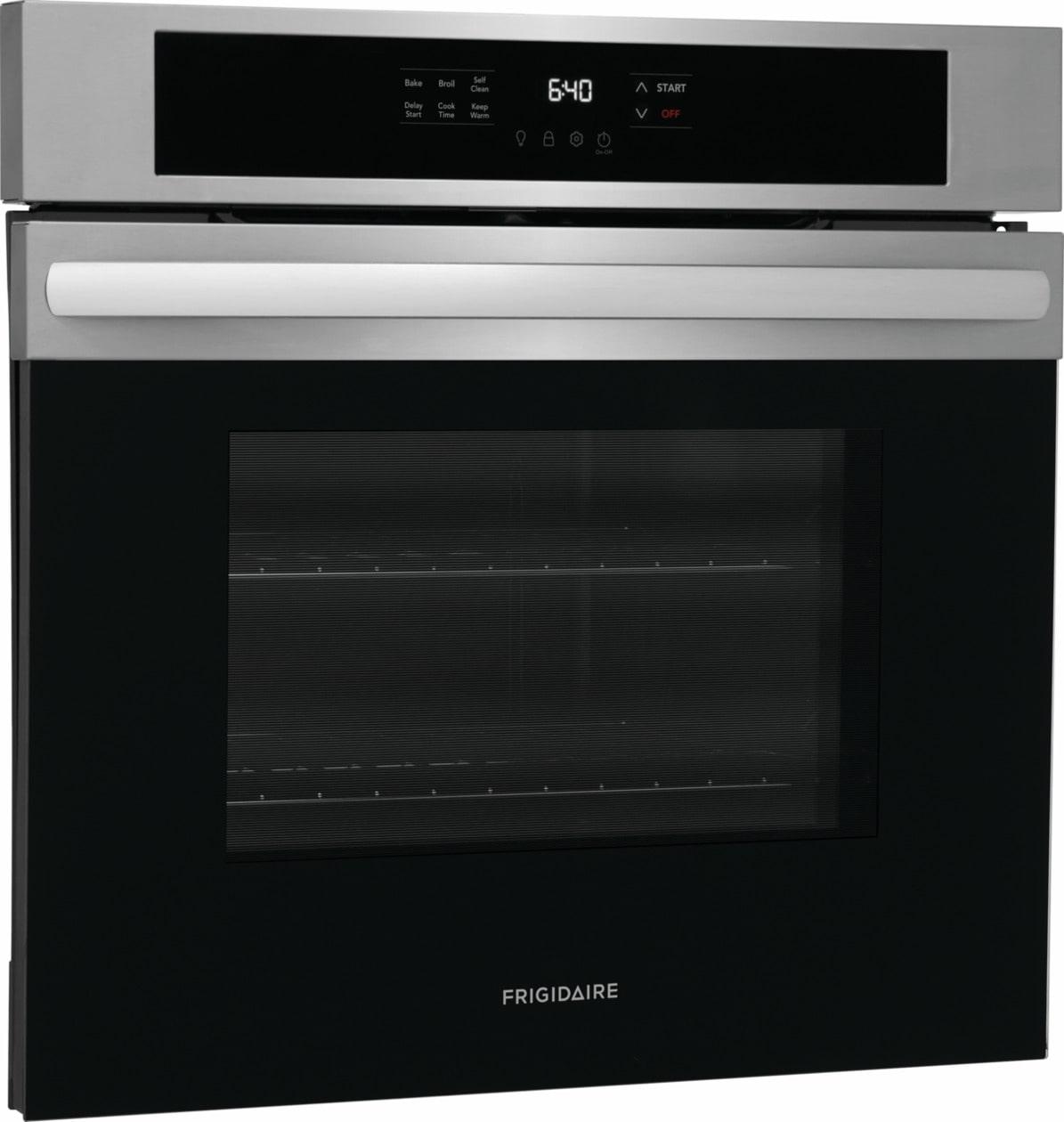

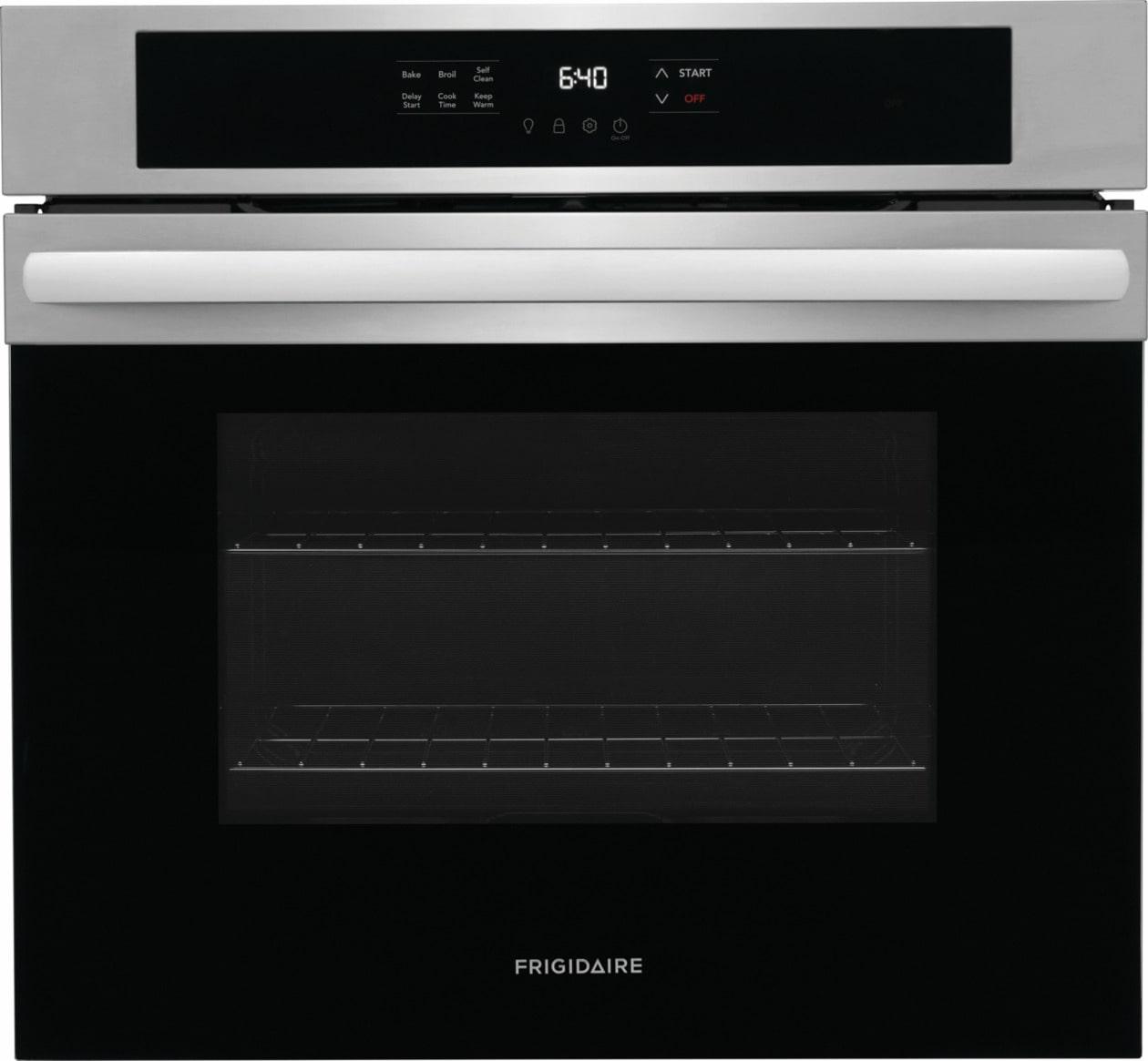

Frigidaire FCWS3025AS 30" Single Electric Wall Oven
Rebates &
Promotions
Exclusive savings on qualifying items. Receive up to a $300 rebate toward a cabinet cutout modifcation if your new qualifying Frigidaire 27in or 30in Built-In Wall Oven does not fit your current Wall Oven cutout. - Receive up to a $300 rebate toward a cabinet cutout modifcation if your new qualifying Frigidaire 27in or 30in Built-In Wall Oven does not fit your current Wall Oven cutout. Download Valid: 01/01/2Frigidaire Wall Oven Fit Promise Rebate - Receive up to a $300 rebate toward a cabinet cutout modifcation if your new qualifying Frigidaire 27in or 30in Built-In Wall Oven does not fit your current Wall Oven cutout. Download Valid: 01/01/2025-12/31/2025
Even Baking Technology
Designed to deliver even baking results, every time.
Self Clean Oven
Self Clean options available in convenient 2, 3 and 4-hour cycles.
Frigidaire® Fit Promise
We promise that your new 30" Frigidaire® single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.
Extra Large Oven Capacity
Cook more at once with our extra-large, 5.3 cu.ft. capacity oven.
The Frigidaire 30" Single Wall Oven Includes Our Even Baking Technology, Which Is Designed To Deliver Consistent Baking Results, Every Time. Plus, Cleanup Is Easier With Convenient 2, 3 And 4-Hour Self Clean Cycles. Plus, With Our Frigidaire Fit Promise, Have Peace Of Mind That This Oven Will Fit Your Existing Cutout, Or We Will Reimburse You Up To $300 For Cabinet Modification Costs.
- Even Baking Technology
- Self Clean Oven
- Frigidaire® Fit Promise
- Extra Large Oven Capacity
- Custom Broil Temp Settings
- Cook Time Setting
- Keep Warm Setting
- Hidden Bake
- ADA Compliant
| Product Line | Single Wall Oven |
| Size | 30' |
| Installation Type | Built-In |
| Factory | Springfield |
| Color | Stainless Steel |
| Cooking Controls | |
| Bake | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| Oven | |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |

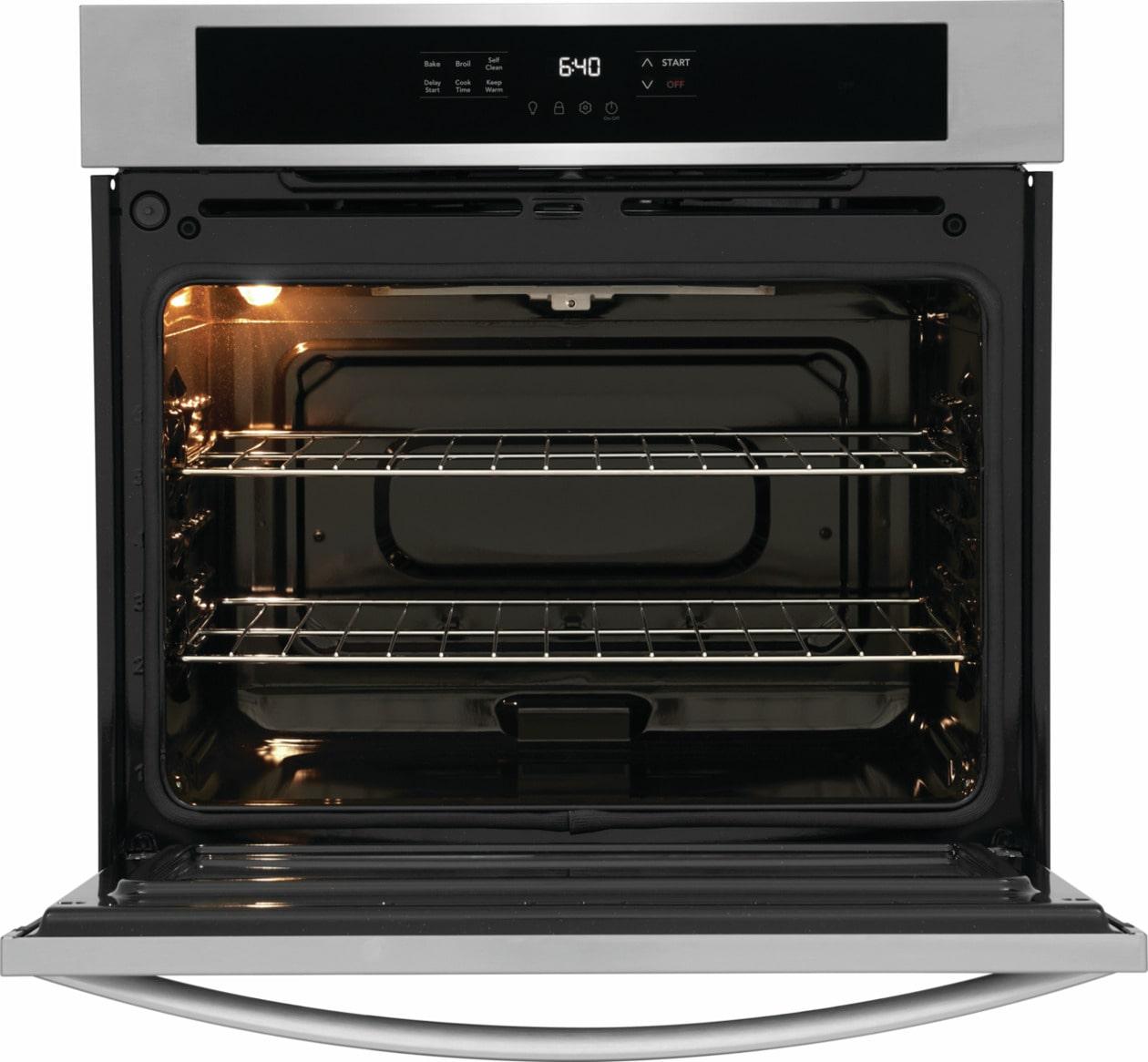

| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Display | |
| Display Interface Color | White |
| Display Light Color | White |

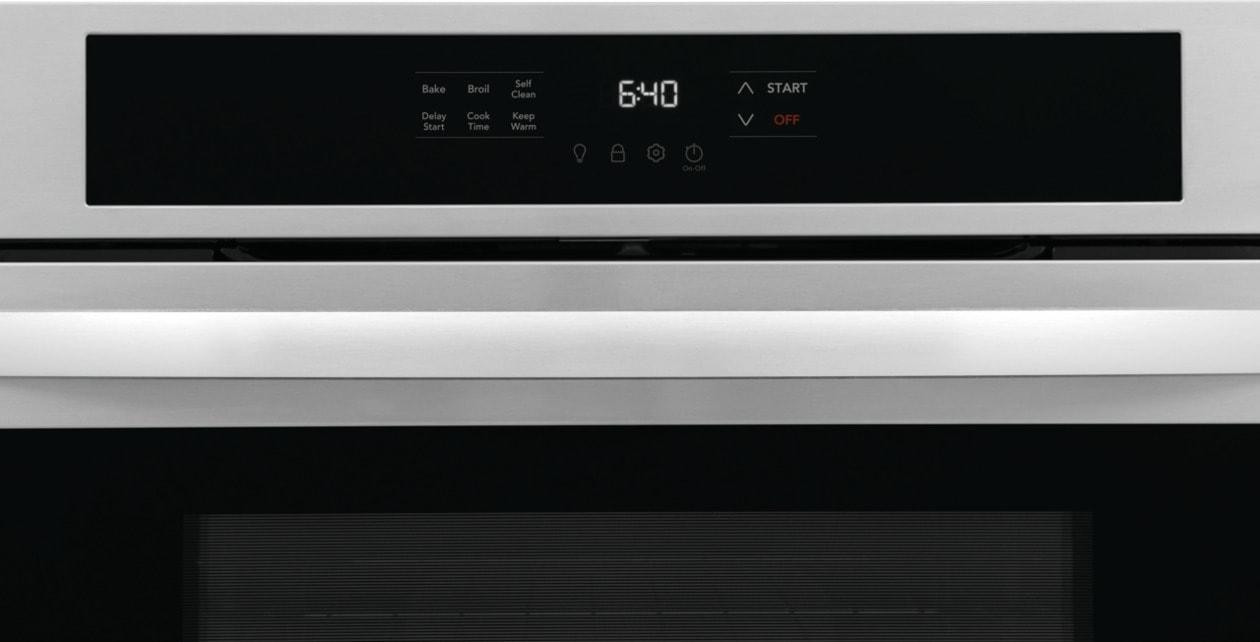

| Display Type | Capacitive Touch |
| Dimensions and Volume | |
| Height | 28' |
| Width | 29 7/8' |
| Depth | 25 3/16' |
| Depth With Door 90° Open | 48 3/16' |
| Depth With Handle | 27 3/5' |

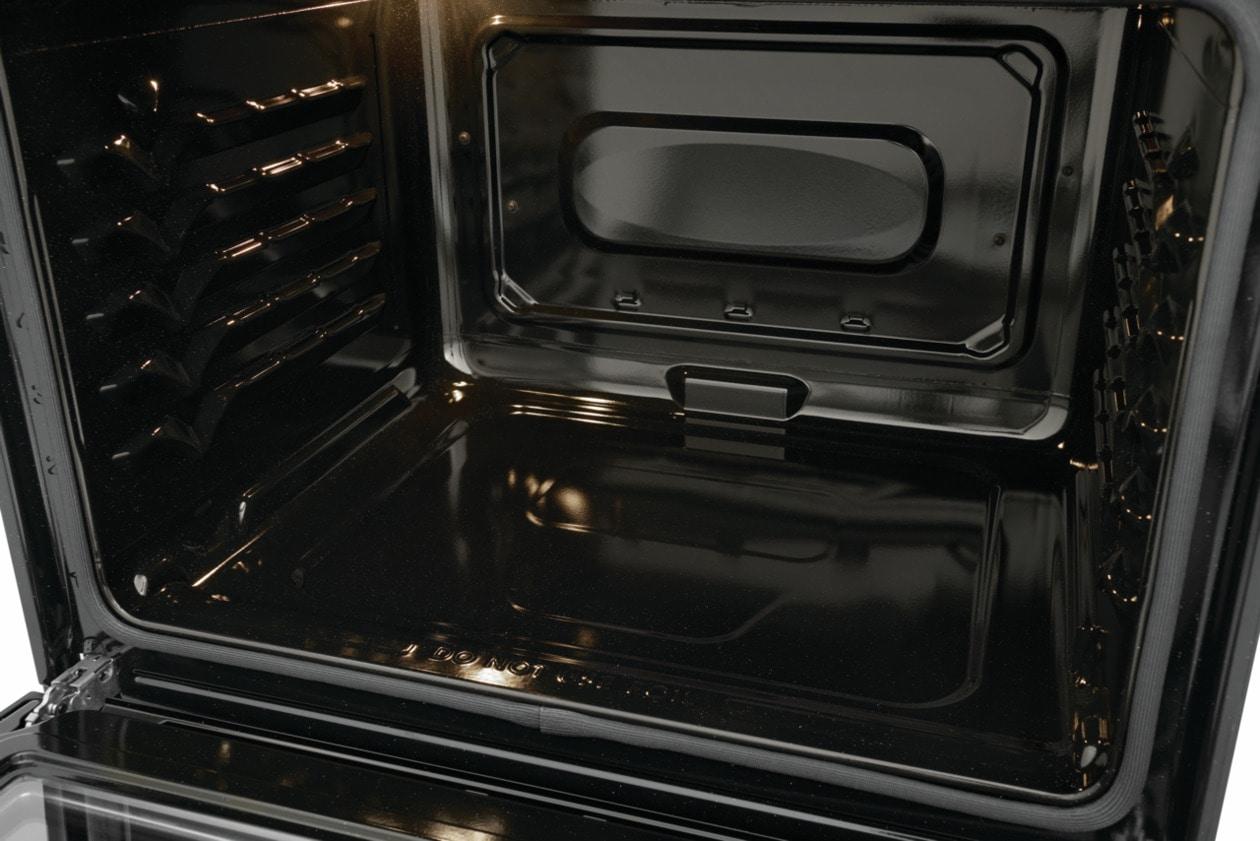

| Oven Interior Height | 18 1/8' |
| Oven Interior Width | 25 1/5' |
| Oven Interior Depth | 19 7/8' |
| Minimum Cutout Height | 26 3/4' |
| Minimum Cutout Width | 28 1/2' |
| Maximum Cutout Height | 28' |
| Maximum Cutout Width | 29' |
| Oven Capacity | 5.3 Cu. Ft. |
| Electrical Specifications | |
| Amps @ 240 Volts | 20 Amps |
| Minimum Circuit Required | 20 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 130 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| Installation | |
| Power Supply Connection Location | Top Left |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| RoHS | Yes |
| UL Listed | Yes |
