Thermador SGSXP305TS 30-Inch Masterpiece® Pedestal Star® Burner Gas Cooktop, Extralow® Select
Rebates &
Promotions
Enjoy exclusive savings with purchase of qualifying Thermador appliances. - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2025-12/31/2025
Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2025-12/31/2025
Thermador One Two Free Sales Event - Enjoy exclusive savings with purchase of qualifying Thermador appliances. Download Valid: 01/01/2025-12/31/2025

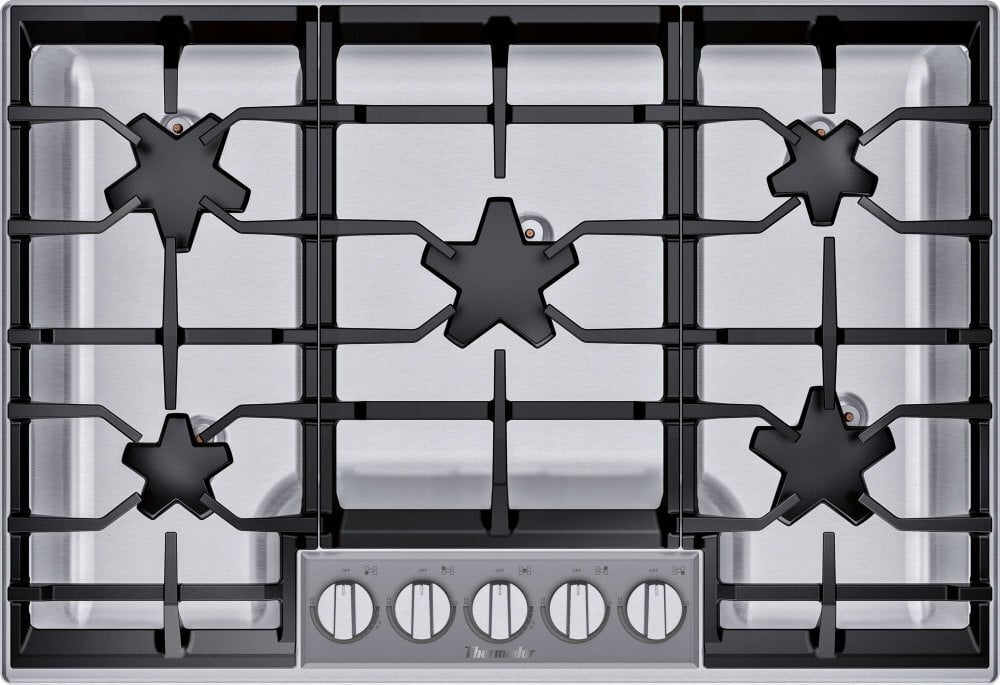

Thermador® Offers An Impressive 30-Inch Gas Cooktop With 5 Raised Pedestal Star® Burners, Including A Center-Mounted Power Burner, 2 Extralow® Simmer Burners, And 54,000 Btus Of Overall Heat Output.
- Patented Star(R) Burner's unique five-point design offers more ports and more flame distribution than a round burner
- QuickClean Base(R) with a teardrop emboss reduces food buildup near the base and contains liquid spills for quick cleaning
- Patented Pedestal burner enables a sponge to fit easily underneath to wipe the surface clean
- ExtraLow(R) Select burner with 5 precise settings is perfect for simmering or holding foods and melting chocolate without scorching or burning
- Progressive illuminated light ring around each knob indicates burners in use
| Technical Specification details | |
| Energy source | Gas |
| Type of control | sword knobs |
| Safety device | automatic reignition |
| Construction type | |
| Color of frame | Stainless Steel |
| Color of surface | Stainless Steel |
| Installation type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Size and weight | |

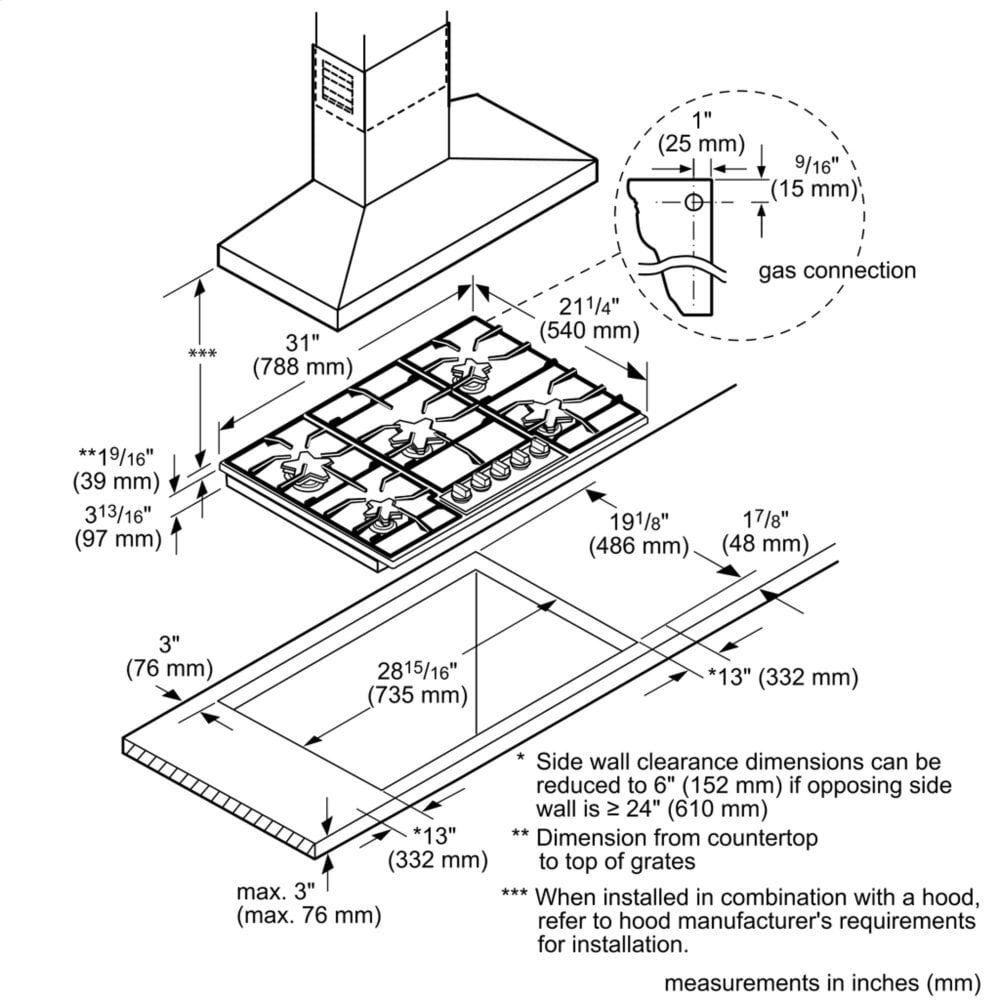

| Overall appliance dimensions (HxWxD) (in) | + 3 13/16'' x 31'' x 21 1/4'' |
| Net weight (lbs) | 42.000 |

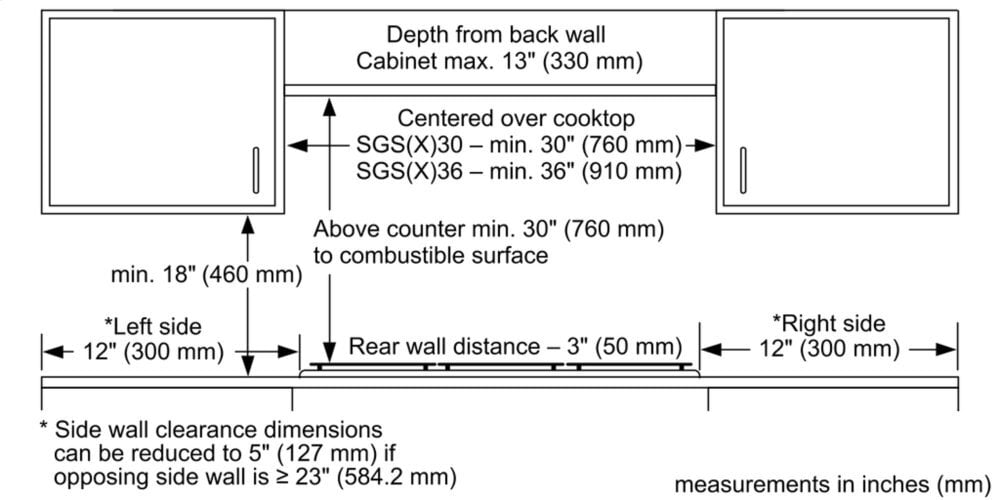

| Minimum distance from counter front (in) | 1 7/8'' |
| Minimum distance from rear wall (in) | 3'' |
| Cooking zone 1 | |
| Location of 1st heating element | Flexible |
| Safety | |
| Type of safety device for gas | Without |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Connection | |
| Gas connection rating (W) | 15,240 |
| Location of gas connection | bottom, rear, right |
| Frequency (Hz) | 60 |
| Energy source | Gas |
| Power Cord Length | 60'' |
| Watts (W) | 1,800 |
| Accessories | |
| Included accessories | 1 x cast iron pan support |
