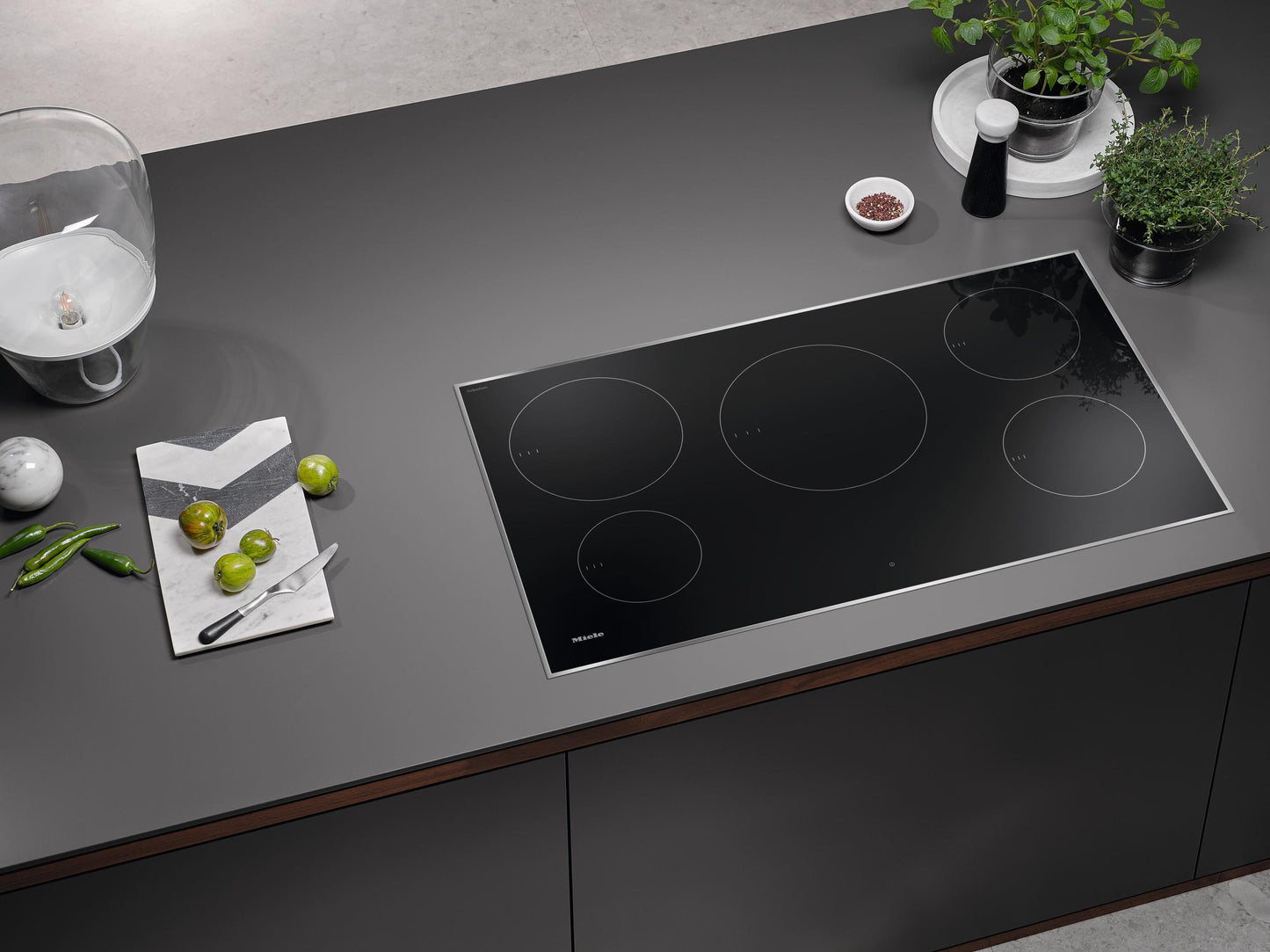

Miele KM7740FR Km 7740 Fr - Induction Cooktop With 5 Round Cooking Zones
Rebates &
Promotions
Receive a free premium all-steel pan set with purchase of a qualifying Miele Induction Range or Cooktop. - Receive a free premium all-steel pan set with purchase of a qualifying Miele Induction Range or Cooktop. Download Valid: 07/01/2025-12/31/2025
Receive a free premium all-steel pan set with purchase of a qualifying Miele Induction Range or Cooktop. - Receive a free premium all-steel pan set with purchase of a qualifying Miele Induction Range or Cooktop. Download Valid: 07/01/2025-12/31/2025
Miele Kitchen Package Rebate - Receive up to a 10% Rebate with purchase of 3 or more qualifying Miele Kitchen Appliances. Download Valid: 01/01/2025-12/31/2025
Permanent pan recognition
Automatic activation of control elements: Pans already in position are recognized when the cooktop is switched on.
Convenient additional functions
A variety of additional functions such as Stop & Go and timers make your work in the kitchen so much easier.
TwinBooster
Flexible power: Induction output can be individually distributed or used for one single zone.
Con@ctivity
Innovative convenience: The ventilation hood reacts automatically to settings on the cooktop.
Safety functions
The safety functions protect you from any nasty surprises - even if your mind is on other things.
SmartSelect
Quick and intuitive: power levels and times can be selected separately for each cooking zone.
Dimensions & Capacity Width: 36.125"
Height: 3.125"
Depth: 21.50"
- Intuitive quick selection via number sequences - Smart Select
- Versatile - 5 cooking zones, 1 extra large with diameter of 11 in
- With a width of 36 1/8 (915) in (mm) and stainless steel frame for proud-mounting
- Shortest heating-up times - TwinBooster
- Communication with the hood - automatic Con@ctivity function
| Type of heating | |
| Fuel type | Induction |
| Construction type | |
| Independent of oven | • |
| Design | |
| Elegant glass ceramic surface | • |
| Ceramic surface color | Black |
| All-round stainless-steel frame | • |
| Proud installation | • |
| Ring features | |
| No. of rings | 5 |
| Number of cooking areas | 0 |
| Maximum number of pans | 5 |
| 1st cooking zone/cooking area | |
| Position | front left |
| Type | Variable cooking zone |
| Size in mm | 100-160 |
| Max. rating in W | 1400 |
| Max. booster rating in W | 1700 |
| Max. TwinBooster rating in W | 2,200 |
| 2nd cooking zone/cooking area | |
| Position | rear left |
| Type | Variable cooking zone |
| Size in mm | 160-230 |
| Max. rating in W | 2300 |
| Max. booster rating in W | 3000 |
| Max. TwinBooster rating in W | 3700 |
| 3rd cooking zone/cooking area | |
| Position | Centered |
| Type | Variable cooking zone |
| Size in mm | 180-280 |
| Max. rating in W | 2600 |
| Max. booster rating in W | 3000 |
| Max. TwinBooster rating in W | 3700 |
| 4th cooking zone/cooking area | |
| Position | rear right |
| Type | Variable cooking zone |
| Size in mm | 140-190 |
| Max. rating in W | 1850 |
| Max. booster rating in W | 2500 |
| Max. TwinBooster rating in W | 3000 |
| 5th cooking zone/cooking area | |
| Position | front right |
| Type | Variable cooking zone |
| Size in mm | 140-190 |
| Max. rating in W | 1850 |
| Max. booster rating in W | 2500 |
| Max. TwinBooster rating in W | 3000 |
| Control panel | |
| Networking with Miele@home | • |
| Automatic function Con@ctivity 3.0 | • |
| Operation via touchpad sensors | Smart Select |
| Display color | Yellow |
| Permanent pan recognition | • |
| Pan/Pan-size sensors | • |
| Stop & Go function | • |
| Recall function | • |
| Minute minder | • |
| Automatic switch-off for all rings | • |
| AutoBoost | • |
| Keep-warm function | • |
| Individual setting options (e.g. acoustic signal tones) | • |
| Cleaning convenience | |
| Easy to clean ceramic glass | • |
| Safety | |
| Safety cut-out | • |
| Lock function | • |
| System lock | • |
| Integrated cooling blower | • |
| Overheating protection | • |
| Residual heat indicator | • |
| Technical data | |
| Width in in. (mm) | 36 1/8 (915) |
| Height in in. (mm) | 3 1/8 (78) |
| Built-in height with mains connection box in in. (mm) | 2 7/8 (71) |
| Depth in in. (mm) | 21 1/2 (544) |
| Cutout dimensions width in in. (mm) with proud-mounted installation | 34 1/2 (876) |
| Cutout dimensions depth in in. (mm) with proud-mounted installation | 20 1/2 (518) |
| Weight in lbs. (kg) | 46 (21) |
| Total connected load in kW | 9.90-11.50 |
| Voltage in V | 0 |
| Frequency in Hz | 60 |
