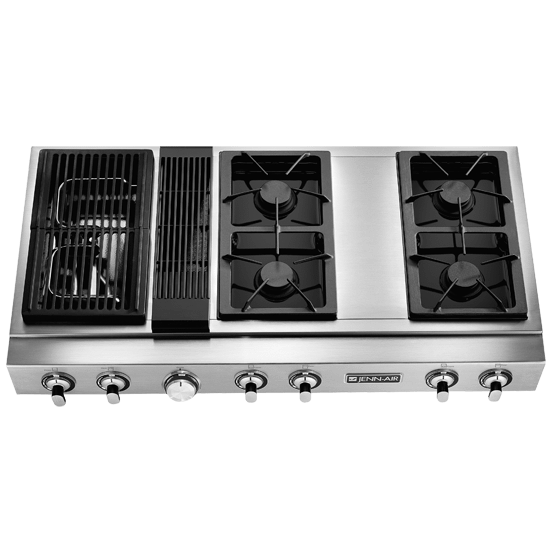

Jennair JGD8348CDP Pro-Style® Modular Gas Downdraft Rangetop, 48"

Overview This Versatile Jenn-Air® Pro-Style® Modular Gas Downdraft Rangetop Allows You To Reconfigure The Cooking Surface Based On Your Preferred Cooking Style. It Features An Indoor Grill Option As Well As A Built-In Downdraft Ventilation System That Captures Smoke Right At The Cooking Surface. Specifications Configuration And Overview (Ul)(Li)Cooktop Type: Modular Downdraft(/Li)(Li)Size: 48(/Li)(Li)Surface Material: Stainless Steel(/Li)(Li)Burner Or Element Style: Sealed Gas(/Li)(Li)Number Of Burners: 4(/Li)(Li)Number Of Open Bays: 0 Cartridges Sold Separately(/Li)(Li)Installs Over Built-In Oven: No(/Li)(Li)Ada Compliant: No(/Li)(Li)Fuel Type: Gas(/Li)(/Ul) Controls (Ul)(Li)Digital Display: No(/Li)(Li)Downdraft Vent: Yes(/Li)(/Ul) Cooktop Features (Ul)(Li)Left Front Power: 8000 Btu(/Li)(Li)Left Front Type: Grill(/Li)(Li)Left Rear Power: 8000 Btu(/Li)(Li)Left Rear Type: Grill(/Li)(Li)Center Rear Power: 10,000 Btu(/Li)(Li)Center Front Power: 10,000 Btu(/Li)(Li)Right Front Power: 10,000 Btu(/Li)(Li)Right Rear Power: 10,000 Btu(/Li)(/Ul) Dimensions (Ul)(Li)Depth: 24 9/16(/Li)(Li)Height: 16(/Li)(Li)Width: 46 13/16(/Li)(Li)Cutout Depth: 22(/Li)(Li)Cutout Width: 45 3/8(/Li)(/Ul)

• Modular Design - Modular cartridges allow you to reconfigure this cooktop to suit your cooking preferences. An additional grill assembly or gas cartridge can be purchased.
• Downdraft Ventilation with Two-Speed Fan - This powerful ventilation system captures smoke and odors right at the surface as you cook, clearing the air beautifully without a hood
• Replaceable E-ven Heat™ Grill Assembly - This luxury downdraft rangetop's "E"-shaped burner delivers even heat across the entire grill surface, providing beautifully even indoor grilling.
• Two Two-Burner Modules - This modular rangetop's initial configuration features two separate two-burner modules. These can be easily updated with other modules offering different cooking functions.
• Four Sealed Burners - The sealed burners, which prevent spills and drips from entering the burner box, make it easy to maintain a pristine cooking surface.
• Indoor Grilling Capability - The left side of this modular cooktop is designed to accommodate a grill module, giving you the option for indoor grilling.
• Convertible to LP - This rangetop allows you to easily adapt your energy source from natural gas to propane.
• Countertop/Island/Peninsula Install without Hood - Because it features a built-in downdraft ventilation system and doesn't require a hood, the rangetop offers exceptional design flexibility.
• Oversized Stainless-Steel Knobs - These over-sized knobs offer a bold look and include handle pieces for enhanced control.
• Electronic Ignition and Flame-Sensing™ Re-ignition - Electronic ignition and Flame-Sensing™ re-ignition ensure a continuous flame that reignites automatically if blown out - even at the lowest setting.
• Infinite Burner Control Settings - Enjoy precise controls by selecting your preferred burner setting - from low to high and everywhere in between.
• Porcelain-on-Cast-Iron Continuous Grates - These heavy-duty grates, which feature a porcelain coating to withstand high temperatures, form a continuous grid across the cooktop, allowing you to easily slide heavy pans from one burner to another.
• Excalibur® Nonstick Grill Grate Finish - A finish on Jenn-Air® grill grates that produces superior release capabilities through a four-step manufacturing process. It keeps food from sticking to the grill, making grilling and cleanup easy.
