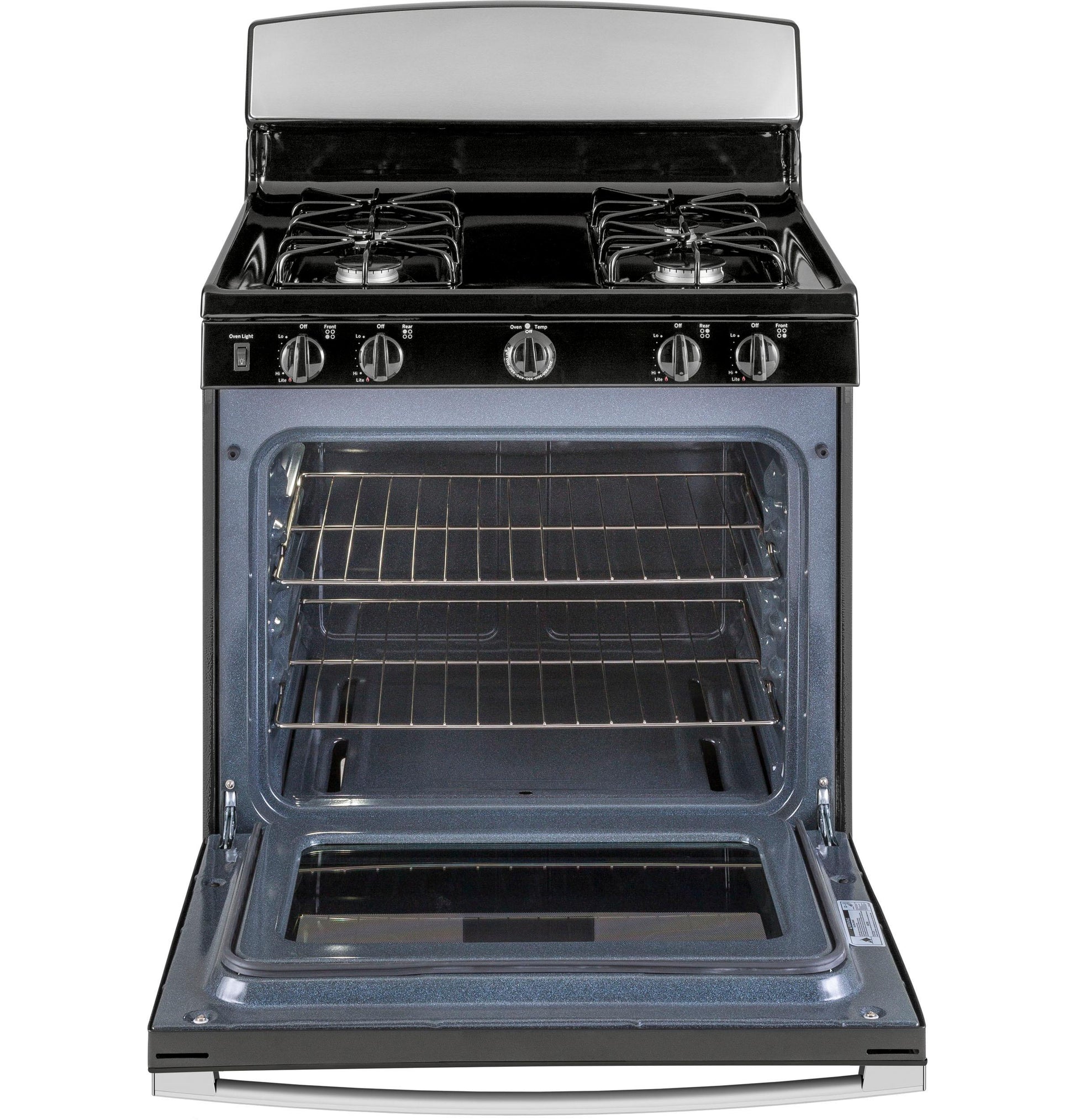

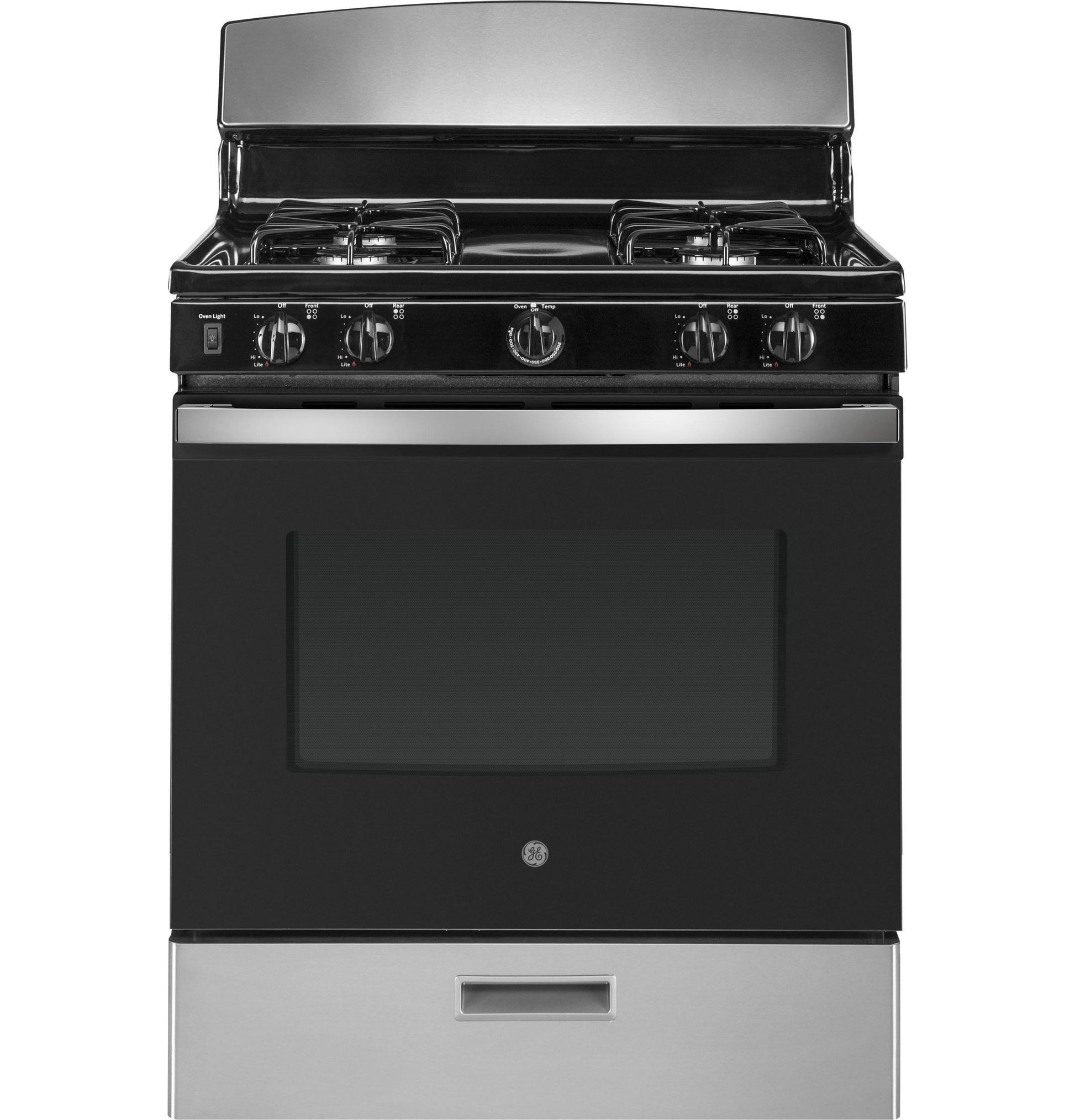

Ge Appliances JGBS30RETSS Ge® 30" Free-Standing Gas Range

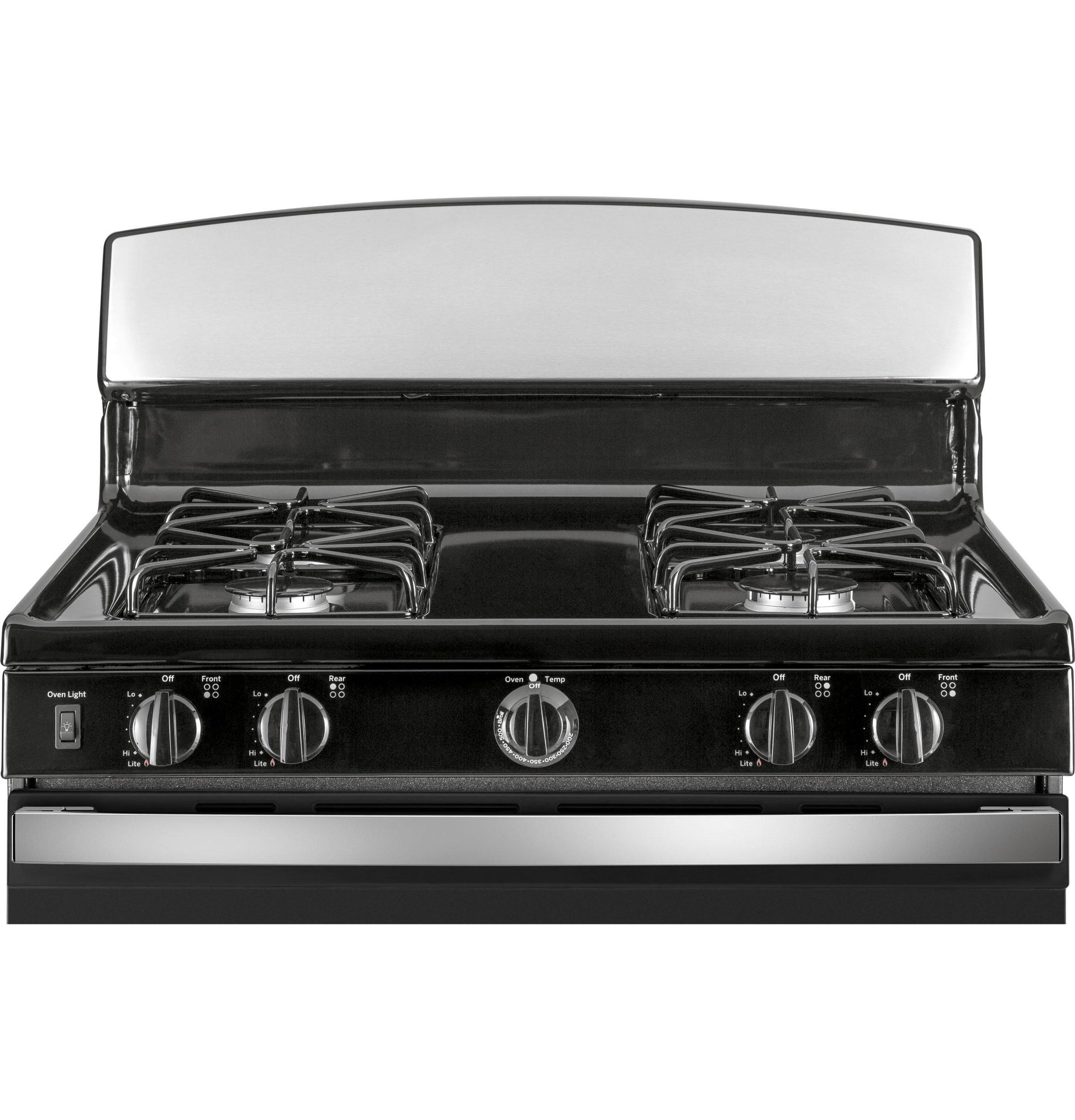

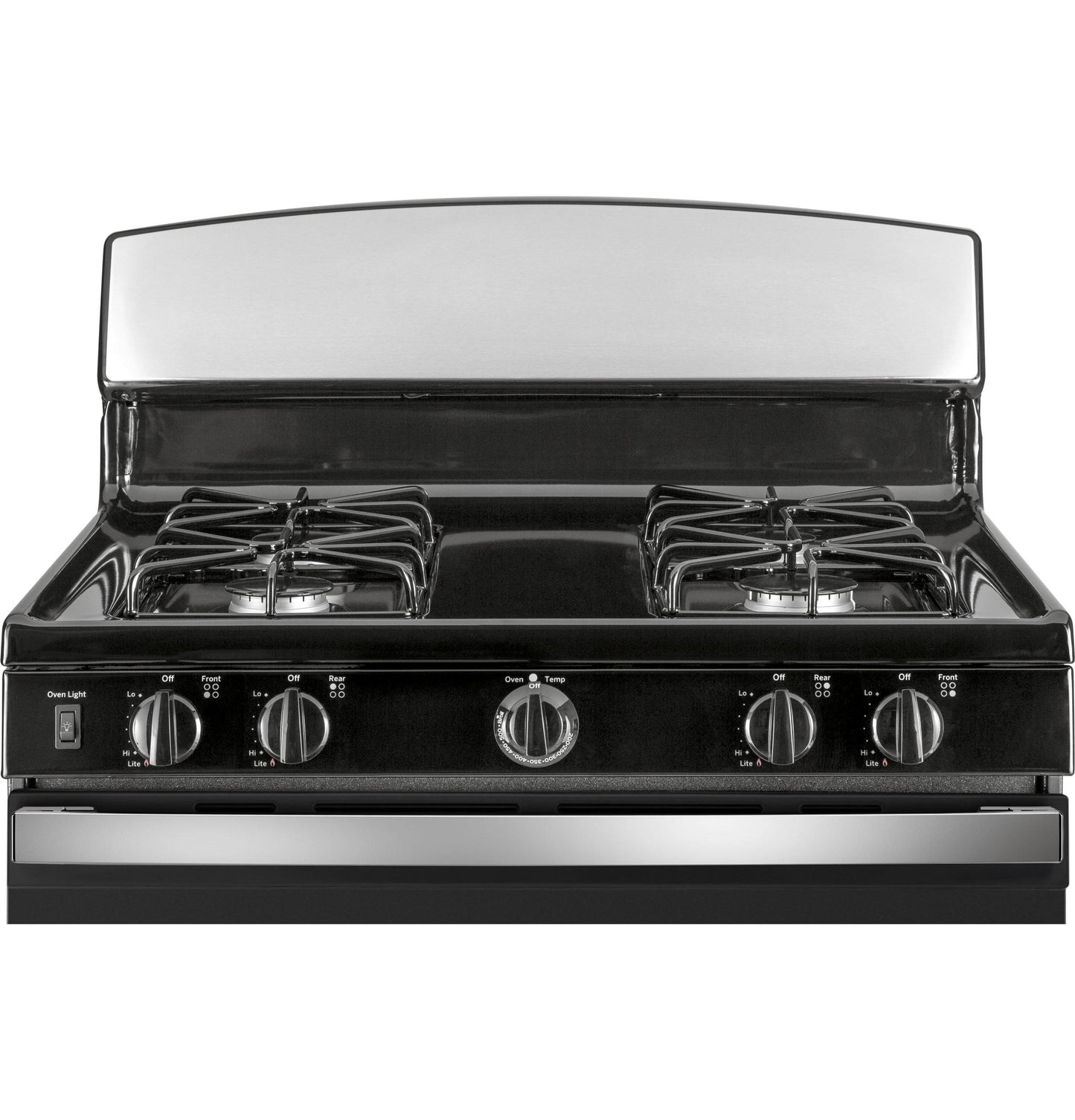

Sealed cooktop burners
Contains spills and make cleaning quick and easy

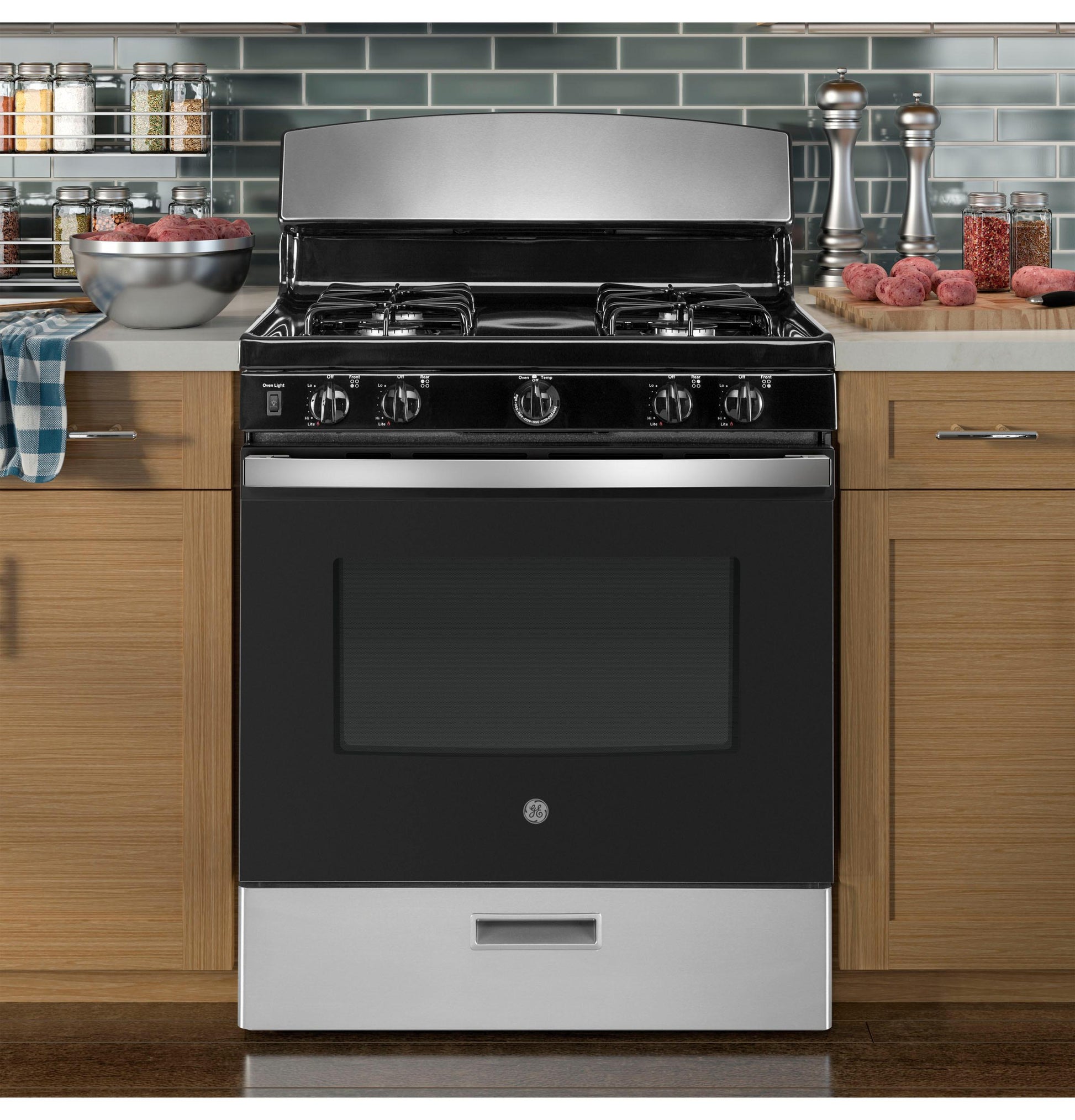

Finish your kitchen with this gas range by GE. The cooktop features 4 sealed burners including a simmer burner for preparing delicate food and sauces.

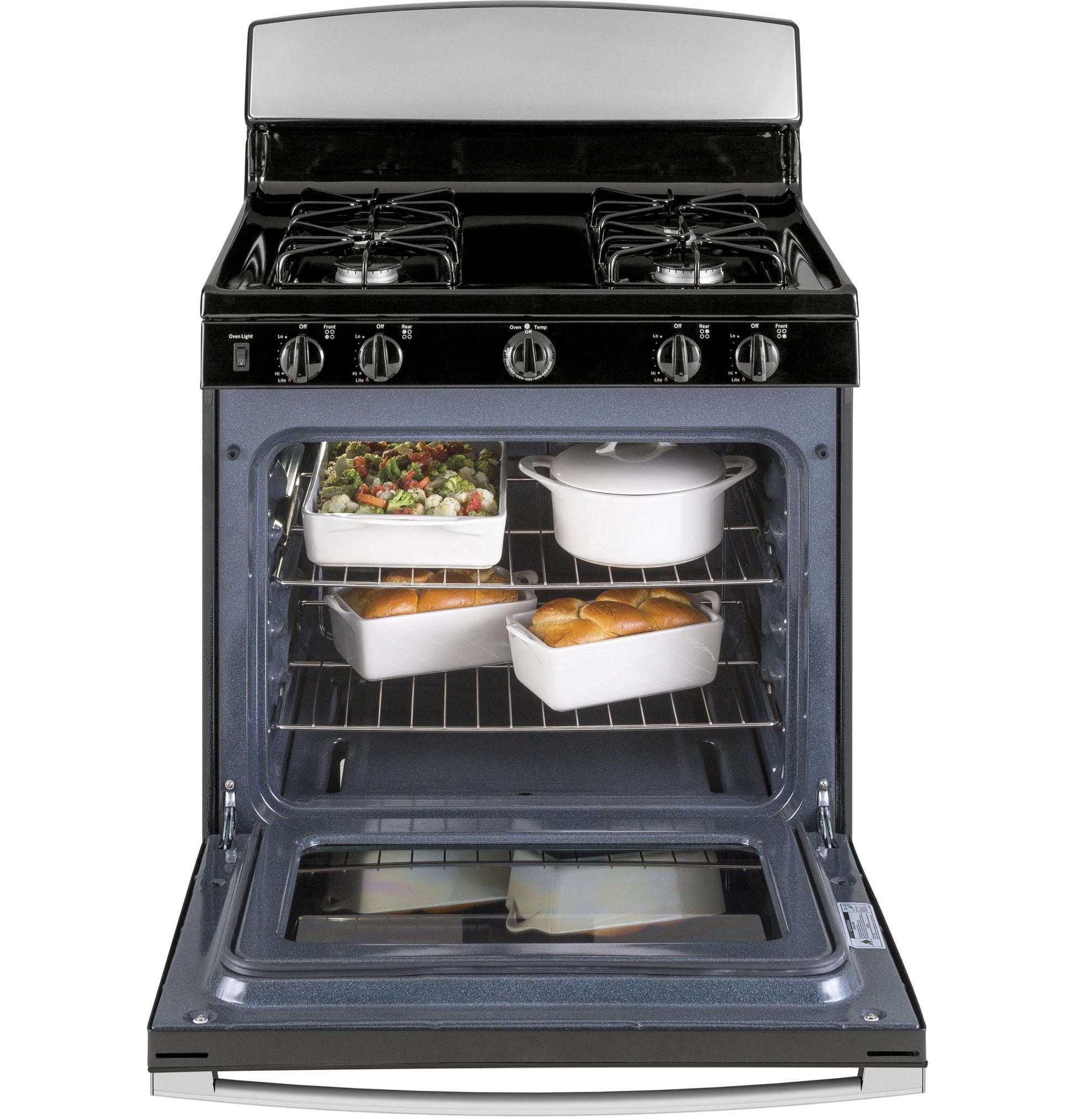

The oven offers 4.8 cu. ft. capacity, allowing you to prepare a variety of meals.
Use the broiler drawer to achieve high concentrated heat to perfectly crisp and brown your food.
Dimensions & Capacity Width: 30"
Height: 46 1/4"
Depth: 28 3/4"
The oven offers 4.8 cu. ft. capacity, allowing you to prepare a variety of meals.
Use the broiler drawer to achieve high concentrated heat to perfectly crisp and brown your food.
Dimensions & Capacity Width: 30"
Height: 46 1/4"
Depth: 28 3/4"
- 13,000 BTU burner
- Big view window
- Precise Simmer burner
- Sealed cooktop burners
- Black gloss steel grates
- 4.8 cu. ft. oven capacity
| CAPACITY | |
| Total Capacity (cubic feet) | 4.8 |
| APPEARANCE | |
| Control Knobs | Gloss Black |
| Handle | Designer Style |
| Handle Color | Stainless Steel |
| Cooktop Burner Grate Color | Black Gloss |
| Oven Door Features | Big View Oven Window |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 12.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 18.0 Bake |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 13.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120v; 60Hz; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 16.0 Bake |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 149.0 |
| Height to Cooking Surface (in.) | 36 - 36 1/4 |
| Depth Without Handle | 26.25 |
| Overall Depth | 28.75 |
| Depth with Door Open | 46.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24 x 18-1/2 x 19 |
| Overall Width | 30.0 |
| Overall Height | 46.25 |
| Approximate Shipping Weight | 171.0 |
| Cabinet Width | 30.0 |
| FEATURES | |
| Burner - Right Front | 13,000 BTU |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 5,000 BTU |
| Oven Rack Features | 2 Flat Nickel Racks 6 Rack Positions |
| Sabbath Mode | Yes |
| Fuel Type | Natural Gas (factory set) |
| Cooking Technology | Traditional |
| Cooktop Surface | Black One-Piece Upswept Porcelain-Enamel |
| Configuration | Range with Broiler Drawer |
| Burner - Left Front | 9,500 BTU |
| Cooktop Burner Grate Material | Heavy Steel |
| Control Type | Knob |
| Ignition System | Electronic |
| Product Type | Free-Standing Single Oven |
| Drawer Type | Broiler |
| Interior Oven Light | 1 Incandescent |
| Cooktop Type | Standard Grates |
| Control Location | Front |
Precise Simmer burner
