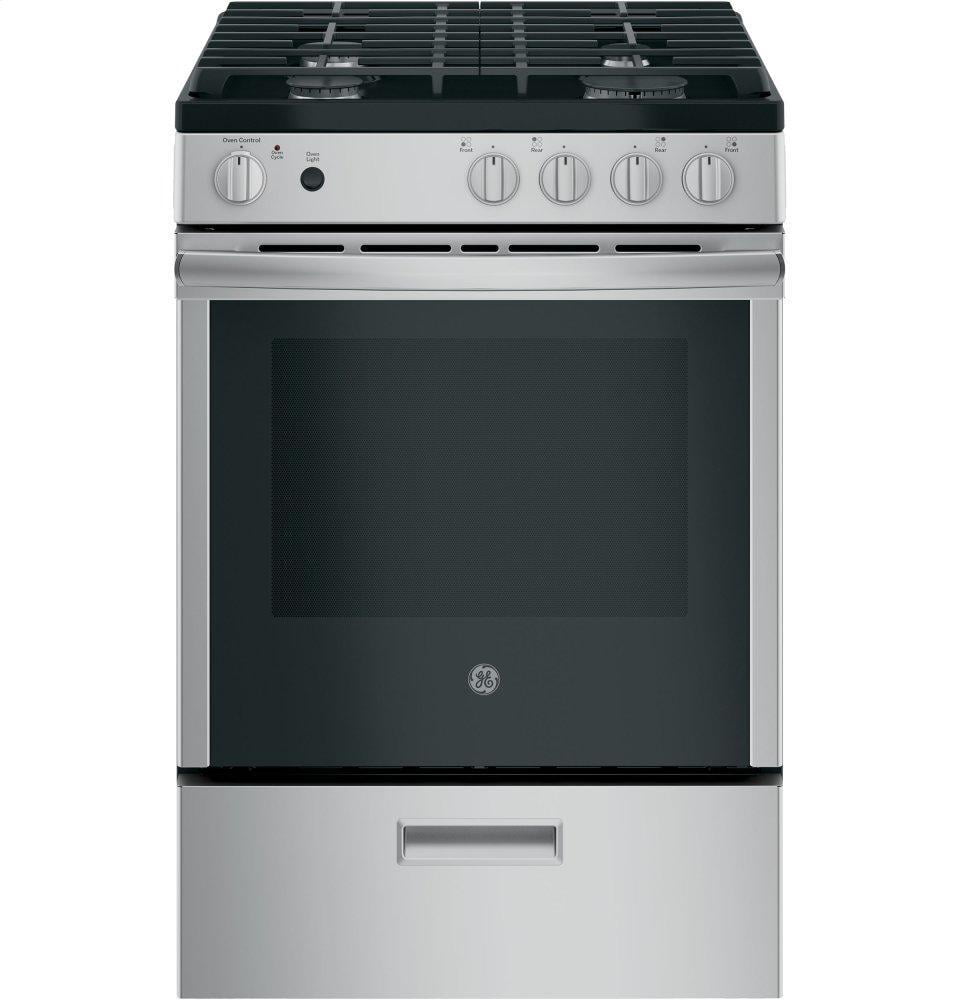

Ge Appliances JGAS640RMSS Ge® 24" Steam Clean Free-Standing/Slide-In Gas Range

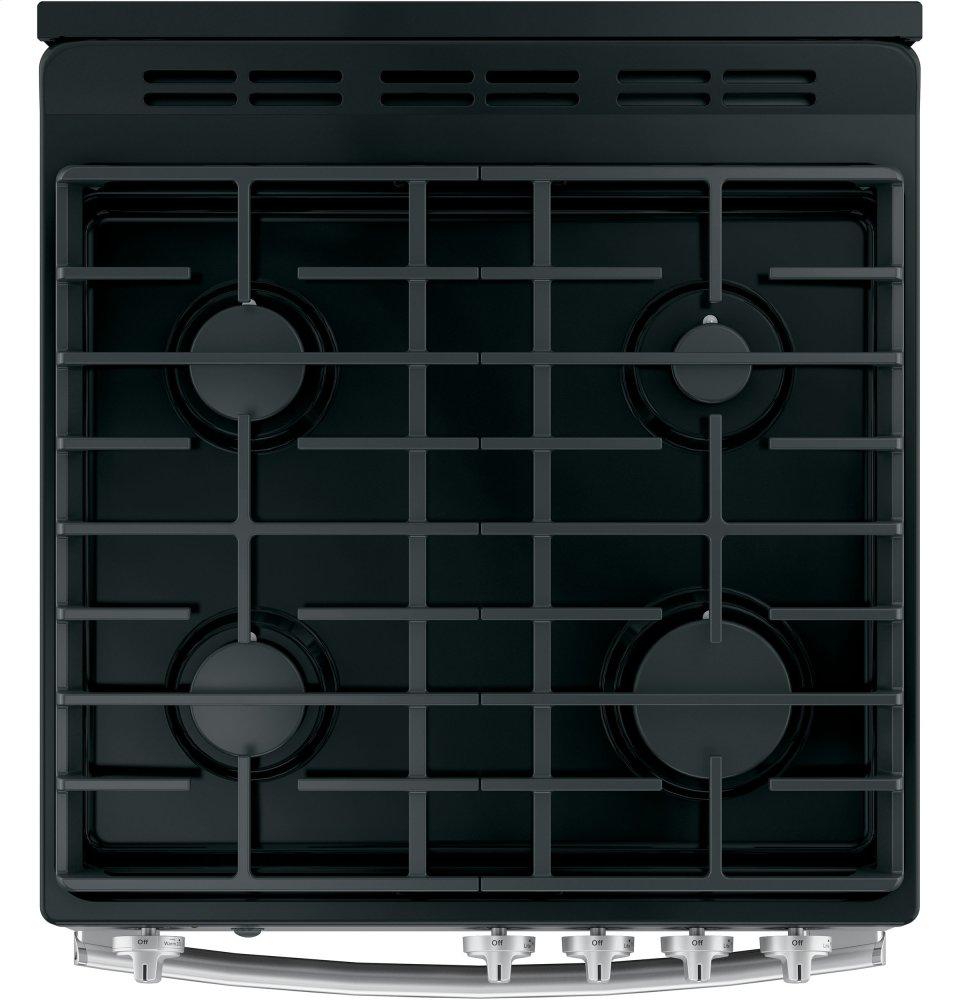

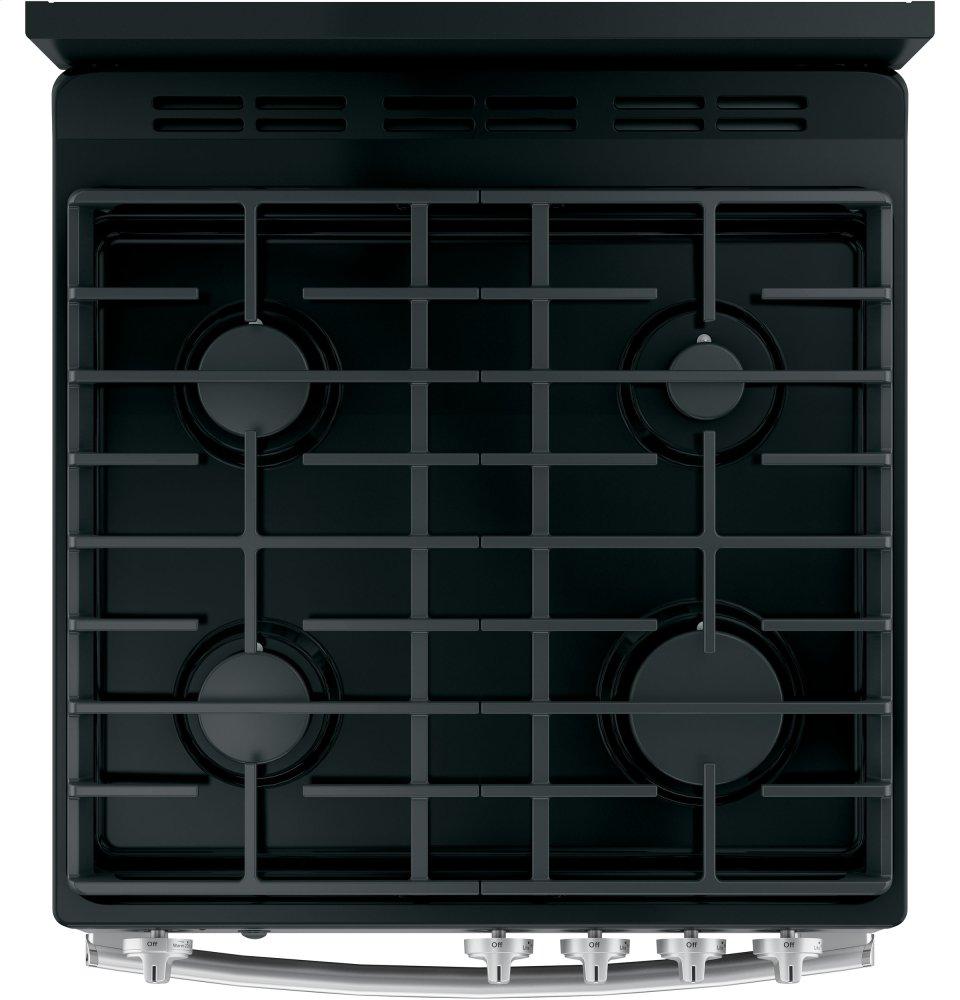

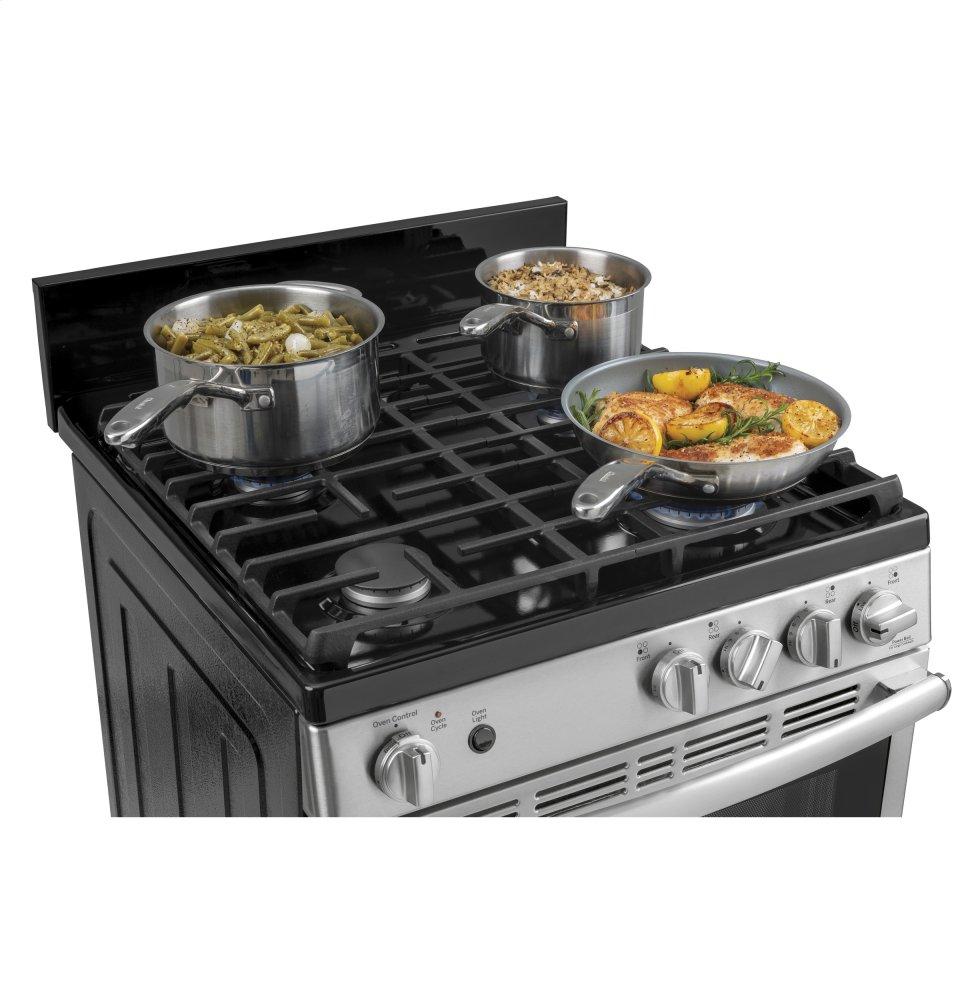

Edge-to-edge cooktop with heavy-cast grates

Enjoy the versatility of a large cooking surface on the stove that can handle lots of cookware combinations

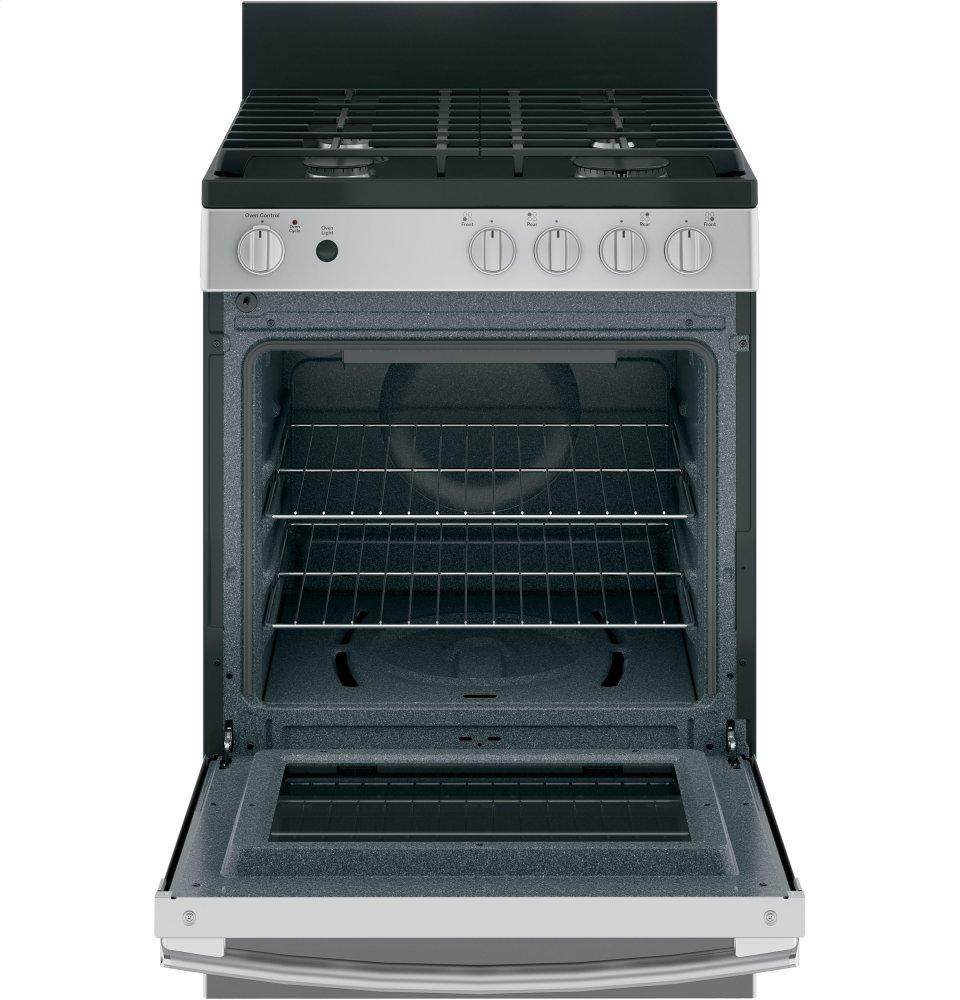

In-oven broil

Healthy meals are hassle-free with in-oven broiling

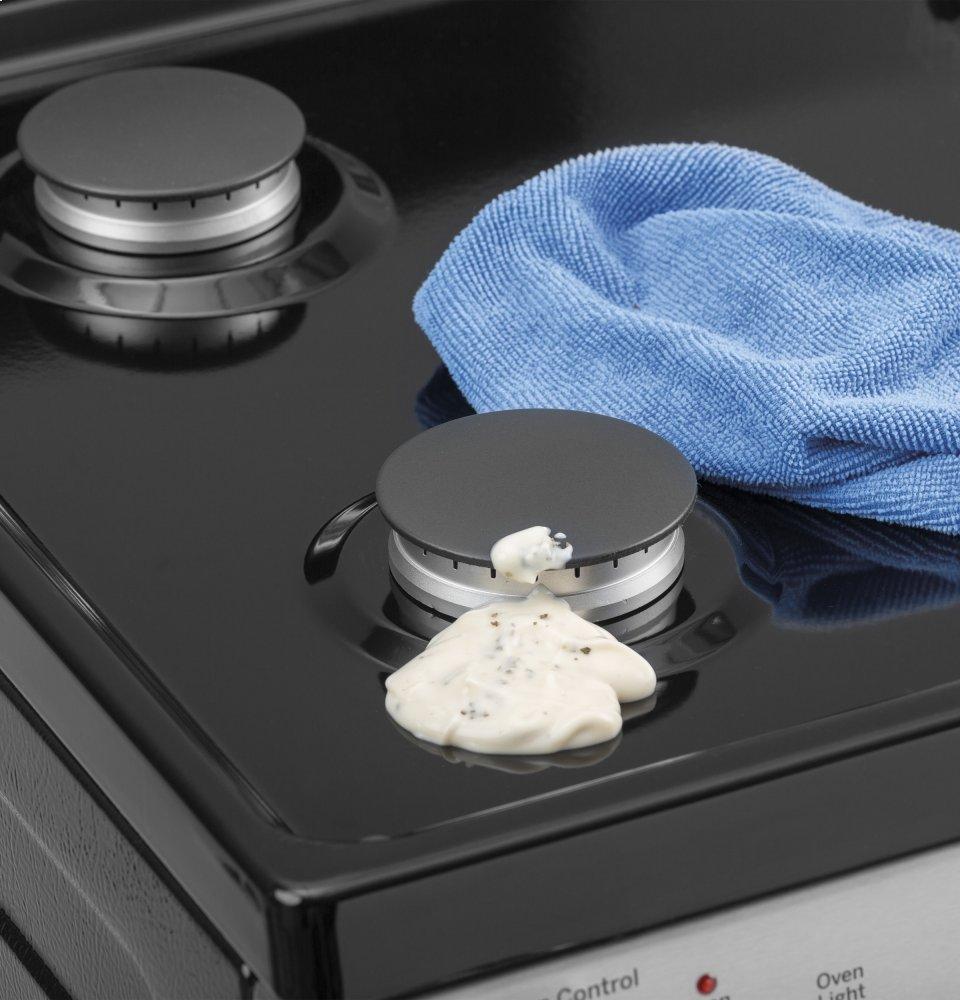

Sealed cooktop burners

Contains spills and make cleaning quick and easy
Front ControlsEasily-Assessable Controls Make It Simple To Control The Stovetop And Oven Edge-To-Edge Cooktop With Heavy-Cast GratesEnjoy The Versatility Of A Large Cooking Surface On The Stove That Can Handle Lots Of Cookware Combinations In-Oven BroilHealthy Meals Are Hassle-Free With In-Oven Broiling Sealed Cooktop BurnersContains Spills And Make Cleaning Quick And Easy Steam CleanThe Power Of Steam Eliminates Oven Scrubbing With Just A 30-Minute Cycle Modular BackguardVersatile Design Gives You The Option Of A Traditional Look, Or Flip Down To Create A Slide-In Appearance

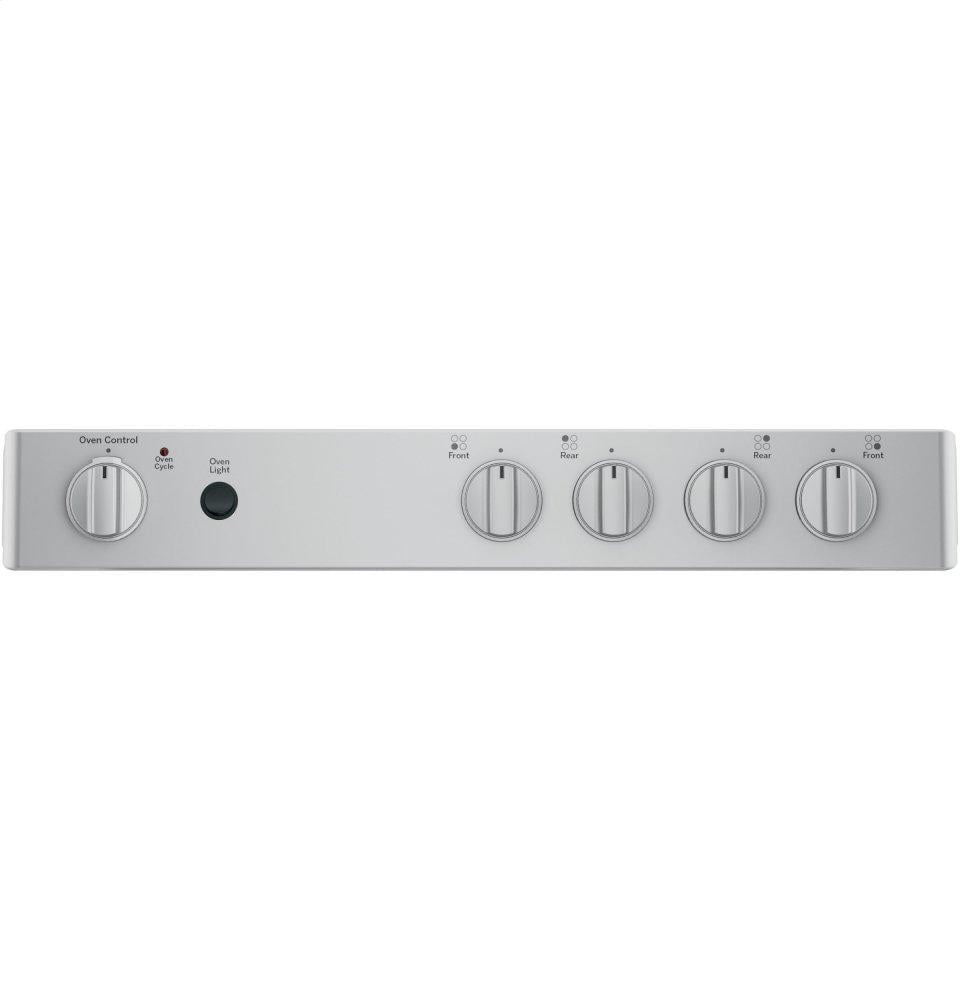

- Front controls
- Edge-to-edge cooktop with heavy-cast grates
- In-oven broil
- Sealed cooktop burners
- Steam clean

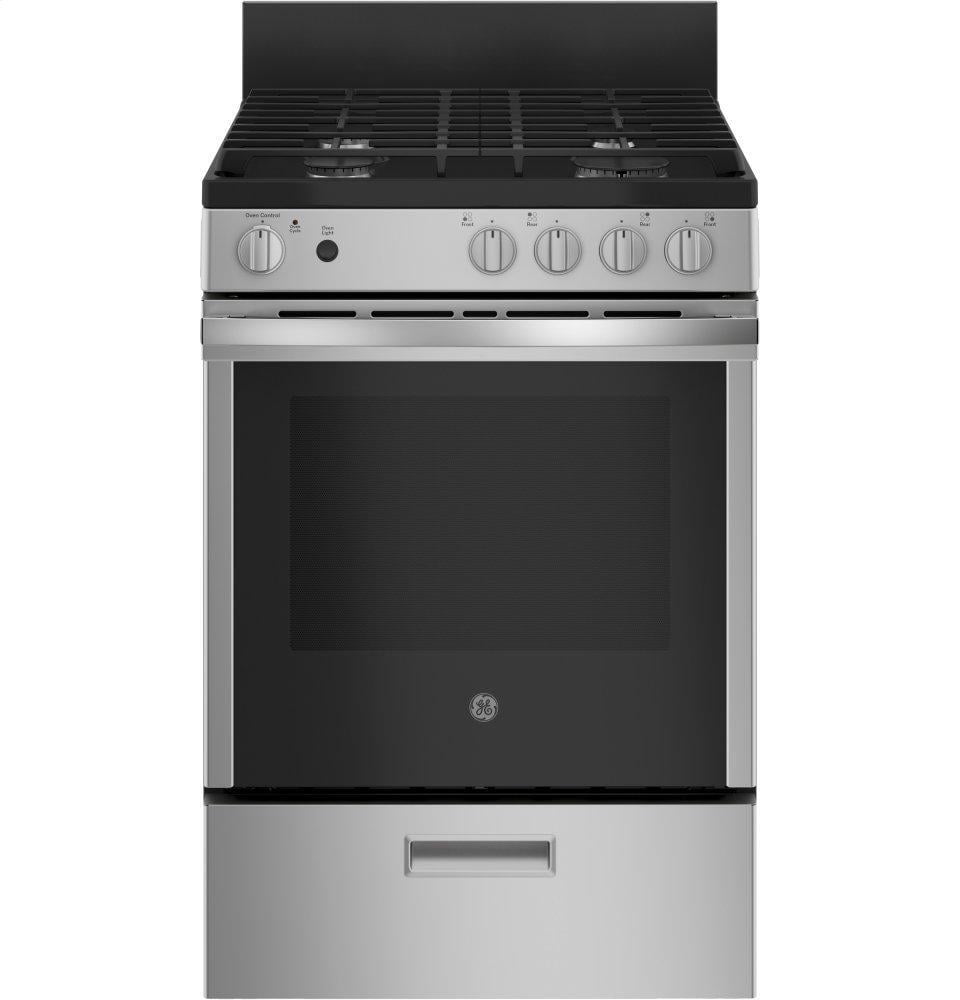

- Modular backguard
| CAPACITY | |
| Total Capacity (cubic feet) | 2.9 |
| FILTER | |
| App Filter - Cleaning Type | Manual |
| App Filter - Control Type | Rotary knobs |
| App Filter - Cooktop Type | Standard Grates |
| App Filter - Cooking Technology | Traditional |
| App Filter - Cabinet Width | Cooking 24 in. |
| App Filter - Product Type | Ranges Free-Standing Single Oven |
| App Filter - Convection | No |
| App Filter - Fuel Type | Gas |
| APPEARANCE | |
| Control Knobs | Stainless Steel |
| Handle | Designer Style Stainless Steel |
| Oven Door Features | Oven Window |
| Color Appearance | Stainless Steel |
| Door Swing | Pull-Down |
| POWER / RATINGS | |
| Top Burner BTU Rating - LP (000's BTU's) | (1) 15.0; (2) 9.5; (1) 5.0 |
| Bake/Broiler BTU Rating - Nat. Gas (000's BTU's) | 13.0 |
| Top Burner BTU Rating - Nat. Gas (000's BTU's) | (1) 15.0; (2) 9.5; (1) 5.0 |
| Volts/Hertz/Amps | 120V ; 60Hz ; 15A |
| Bake/Broiler BTU Rating - LP (000's BTU's) | 13.0 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Optional Backguard | Included |
| LP Conversion Kit | Included |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 107.0 |
| Height to Cooking Surface (in.) | 36 1/4 +/- 1/4 |
| Depth Without Handle | 25.875 |
| Overall Depth | 28.125 |
| Depth with Door Open | 45.625 |
| Oven Interior Dimensions (W x H x D) (in.) | 19 x 15-3/8 x 17-1/8 |

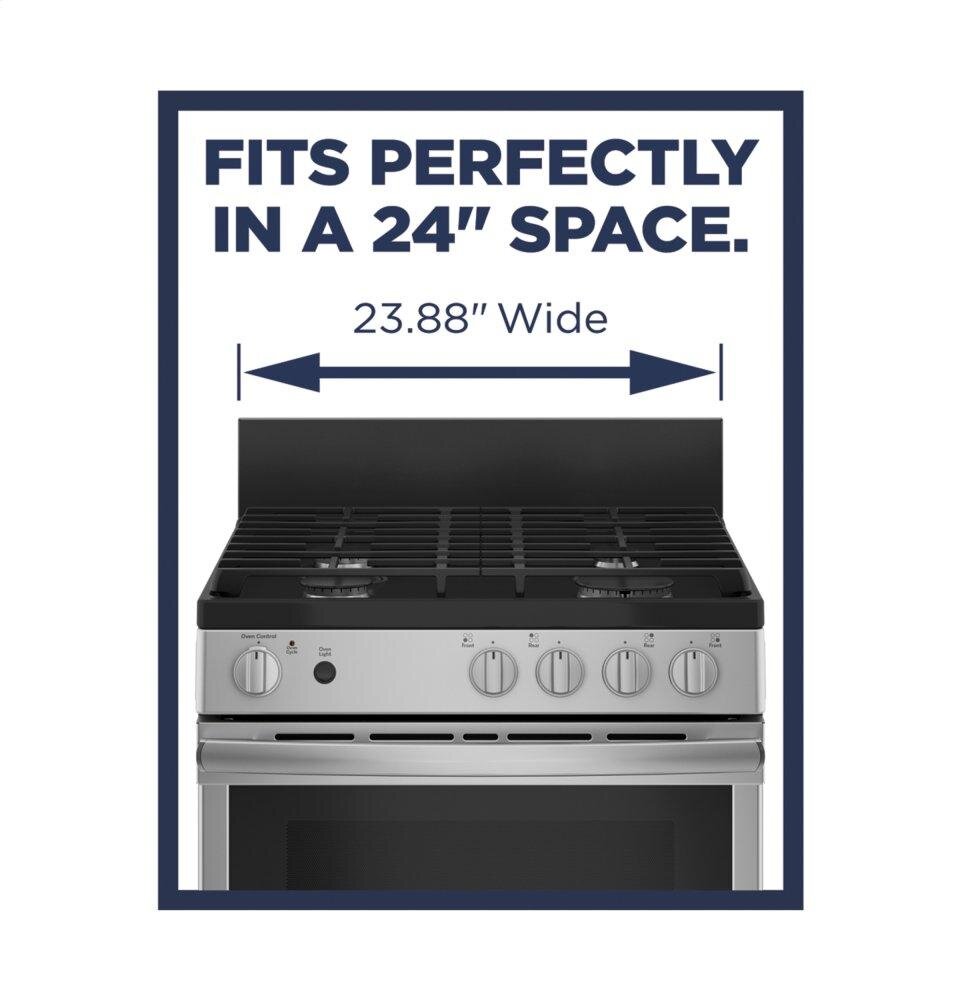

| Overall Width | 24.0 |
| Overall Height | 41.0 |
| Approximate Shipping Weight | 120.0 |
| Cabinet Width | 24.0 |
| FEATURES | |
| Burner - Right Front | 15,000 BTU |
| Burner - Left Rear | 9,500 BTU |
| Oven Cleaning Type | Standard Clean |
| Cooktop Burner Type | Sealed |
| Burner - Right Rear | 5,000 BTU |
| Valves (Degree of Turn) | 270 |
| Oven Interior | 1 Incandescent Light Blue Gray |

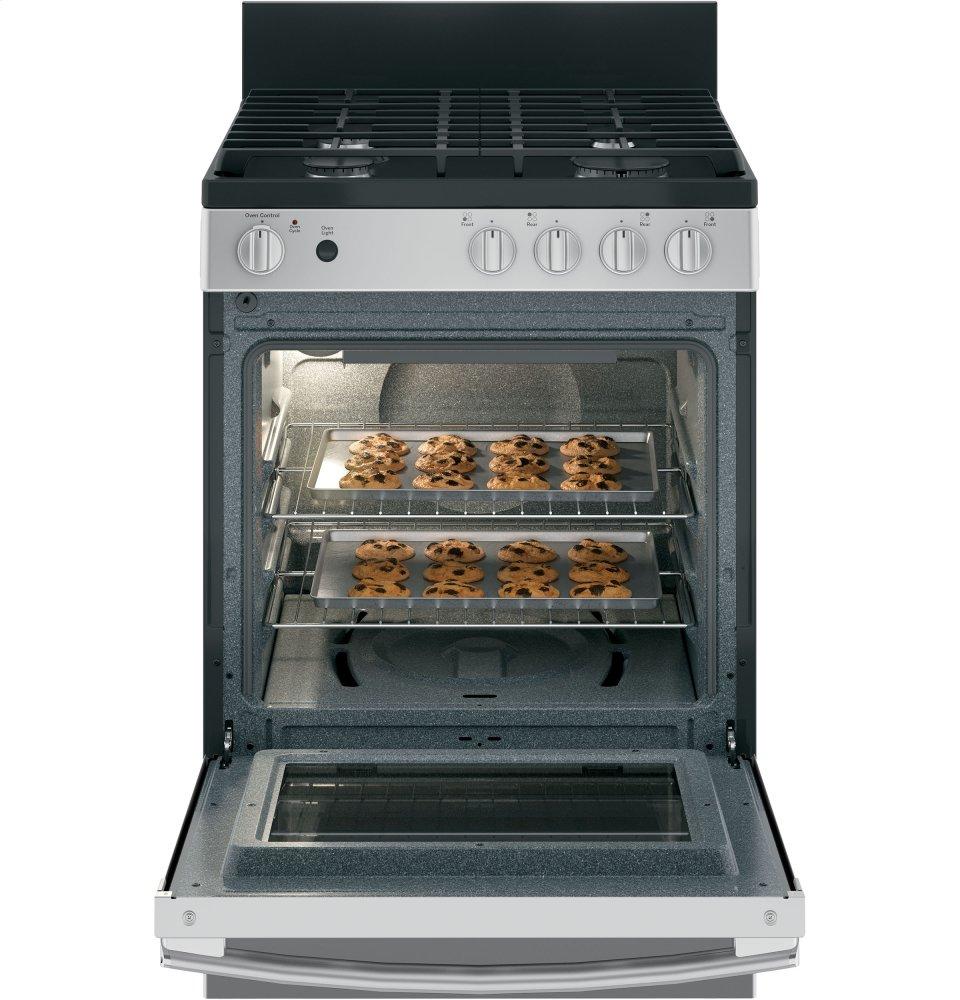

| Oven Rack Features | 2 Flat Nickel Racks 4 Rack Positions |
| Fuel Type | Natural Gas (factory set) |
| Cooking Technology | Traditional |
| Cooktop Surface | Porcelain-Enamel |
| Configuration | Range with In Oven Broil |
| Leveling System | 4 Leveling Legs |
| Burner - Left Front | 9,500 BTU |
| Cooktop Burner Grate Material | Cast-Iron |
| Oven Cooking Modes | Bake Broil |
| Ignition System | Electronic |
| Product Type | Free-Standing Single Oven |
| Cooktop Type | Standard Grates |
| Control Location | Front |
