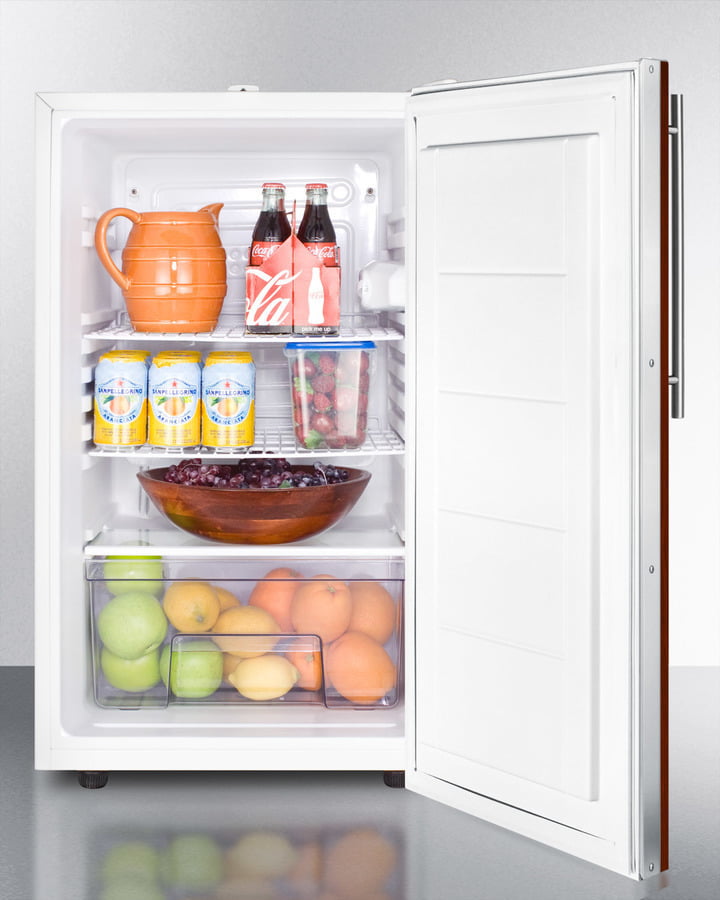

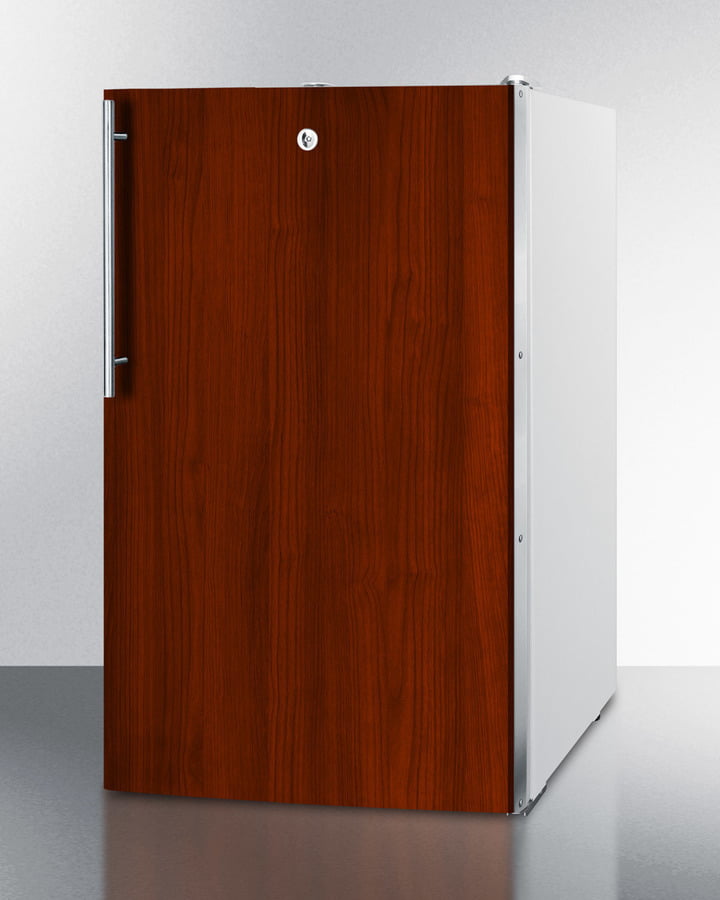

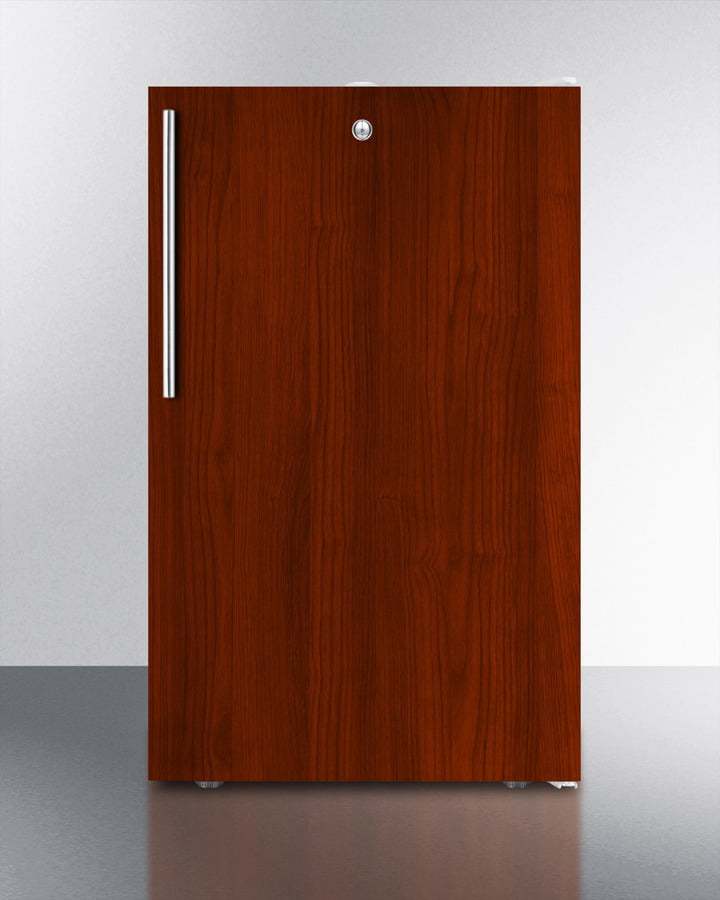

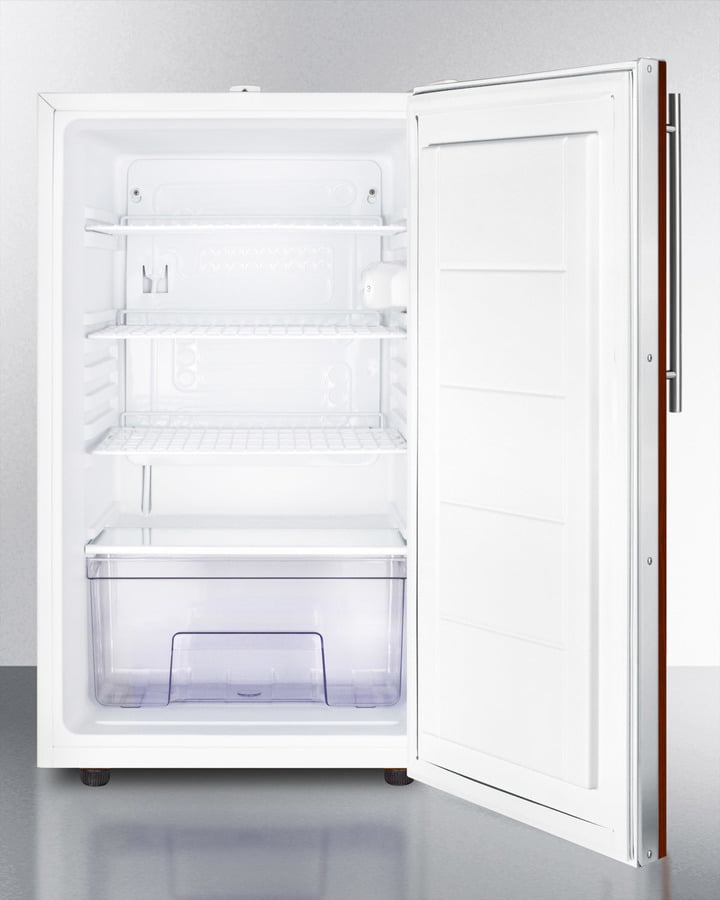

Summit FF511LBI7IF Commercially Listed 20" Wide Built-In Undercounter All-Refrigerator, Auto Defrost With A Lock And Integrated Door Frame For Full Overlay Panels
(Ul)(Li)Etl-S Listed For Commercial Use(/Li)(Li)Flexible Design Allows Built-In Or Freestanding Use In 20" Wide Spaces(/Li)(Li)Factory Installed Lock Provides Security You Can Count On(/Li)(Li)Save Time And Energy With Low Maintenance Automatic Defrost(/Li)(Li)Door Can Accept A Full Overlay Panel For A Seamless Look That Blends Into Cabinetry(/Li)(Li)Includes A Hospital Grade Cord With A 'Green Dot' Plug(/Li)(/Ul) Accucold By Summit Appliance Offers A Wide Range Of Undercounter All-Refrigerators For General Purpose Storage. The Commercially Listed Ff511Lbi7 Series Features High Performing 20" Wide All-Refrigerators Designed For Built-In Use In Commercial Applications. The Etl-S Listed Ff511Lbi7If Features A Full 4.1 Cu.Ft. Capacity. This All-White Refrigerator Includes A Factory Reversible Door With An Easy-To-Clean Flat Interior Liner. An Integrated Door Frame Lets Users Mount Full Overlay Panels For A True Customized Look, With A Factory Installed Lock Located At The Top Of The Door For Convenient Security. Designed For Built-In Use, The Ff511Lbi7If Can Also Be Used Freestanding. Inside, This Auto Defrost Refrigerator Includes Three Adjustable Wire Shelves. A Bottom Crisper Drawer Offers Added Storage Options. Additional Features Include An Adjustable Thermostat And A Switchable Interior Light. At Just 20" Wide, The Ff511Lbi7If Is Ideal For Any Space In Need Of Reliable Refrigeration And Can Be Perfectly Matched With Our Fs407Lbi7If All-Freezer.
- Commercially listed: ETL-S listed to NSF standards for commercial use
- Slim 20" width: Full 4.1 cu.ft. capacity inside conveniently slim footprint
- Built-in capable: Make the best use of space by installing your appliance under the counter
- Fully finished white cabinet: Allows the unit to be used freestanding
- Factory installed lock: Top-mounted for convenient security
- Integrated door frame: Stainless steel door frame accepts overlay panels for users to create a custom look over the front (panel size: 19 1/2" W x 31 1/2" H and at least 3/4" thick; maximum weight: 10 lbs.)
- Hospital grade cord with 'green dot' plug: Secure three-pronged cord for added unit safety
- Automatic defrost: Reduced maintenance with auto defrost system
- Adjustable shelves: Rearrange refrigerator space to accommodate all sizes or remove shelves for simple cleanup
- Crisper drawer: Get the longest life and best taste out of produce by storing greens in a bottom crisper
- Interior light: Turn the light on and off with a convenient rocker switch
- Flat door liner: Easy to clean, with more depth for storage
- Adjustable thermostat: Manage the temperature with ease and accuracy
- Matching freezer available: Combine any FF511LBIIF with a matching FS407LBIIF for a complete undercounter set
- 100% CFC Free: Environmentally friendly design with no ozone-damaging chemicals
| Overview | |
| Height of Cabinet | 33.5' (85 cm) |
| Height to Hinge Cap | 34.0' (86 cm) |
| Width | 19.25' (49 cm) |
| Depth | 21.38' (54 cm) |
| Depth with door at 90° | 39.5' (100 cm) |
| Capacity | 4.1 cu.ft. (116 L) |
| Defrost Type | Automatic |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Sanitation | ETL-S |
| Amps | 1.3 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 64.0 lbs. (29 kg) |
| Shipping Weight | 67.0 lbs. (30 kg) |
| Estimated Time to Ship | 2 to 4 days |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| Refrigerator Features | |
| Door Swing | RHD |
| Reversible | Factory Reversible |
| Crisper Qty | 1 |
| Crisper Finish | Transparent |
| Crisper Cover | Glass |
| Shelf Type | Wire |
| Shelf Qty | 2 |
| Full Door Shelf Qty | 1 |
| Half Door Shelf Qty | 2 |
| Adjustable Shelves | Yes |
| Can Storage | Yes |
| Thermostat Type | Dial |
| Refrigerant Type | R134a |
| Refrigerant Amount | 1.9oz. |
| High Side PSI | 250.0 |
| Low Side PSI | 110.0 |
| Level Legs Qty | 2 |
| Interior Light | Yes |
| Dimensions | |
| Interior Height | 28.5' (72 cm) |
| Interior Width | 15.75' (40 cm) |
| Interior Depth | 18.0' (46 cm) |
| Compressor Step Height | 8.0' (20 cm) |
| Compressor Step Width | 16.5' (42 cm) |
| Compressor Step Depth | 5.5' (14 cm) |
| Exterior | |
| DL2B - Factory installed NIST calibrated digital data logger (DDL) USB digital data logger with internal memory, user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout | DL2 - Factory installed NIST calibrated data logger USB data logger with user-set recording intervals, high/low temperature alarm, and NIST calibrated temperature readout |
| SCD - Self | closing door Protect interior contents and reduce energy waste with the Self Closing Door Option |
