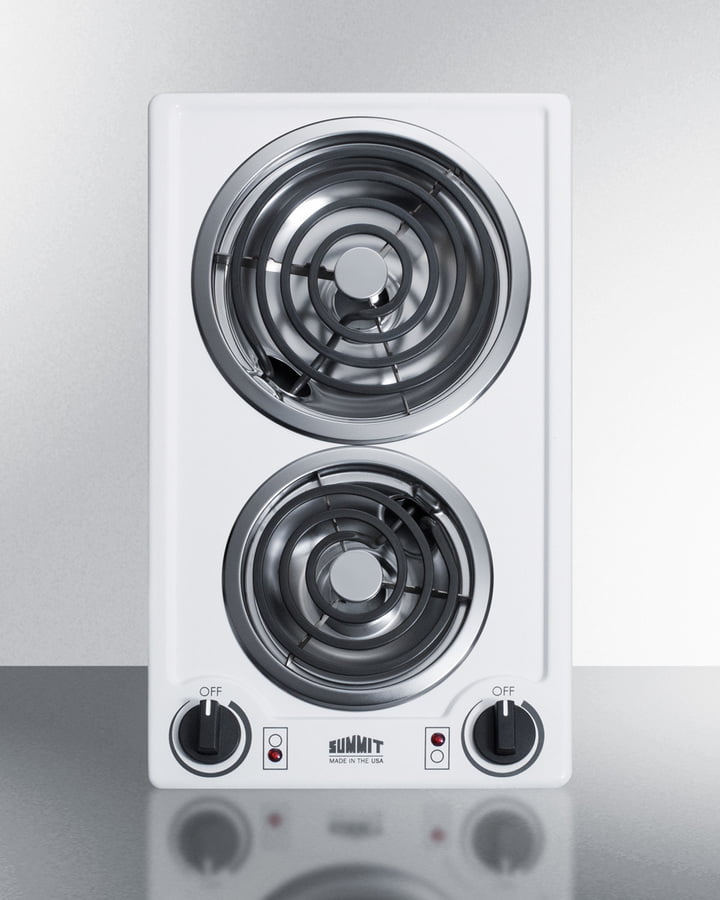

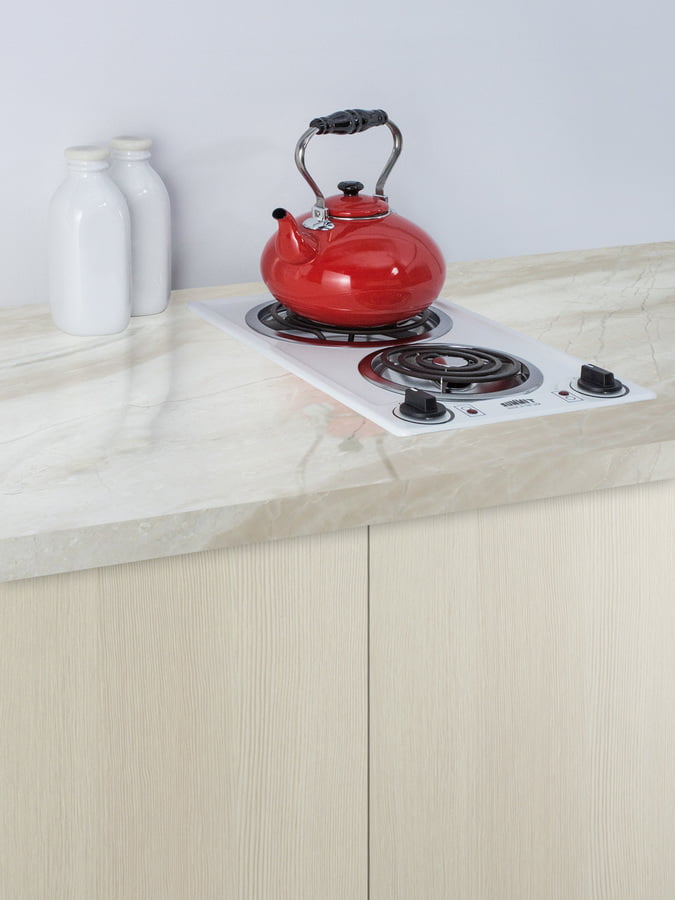

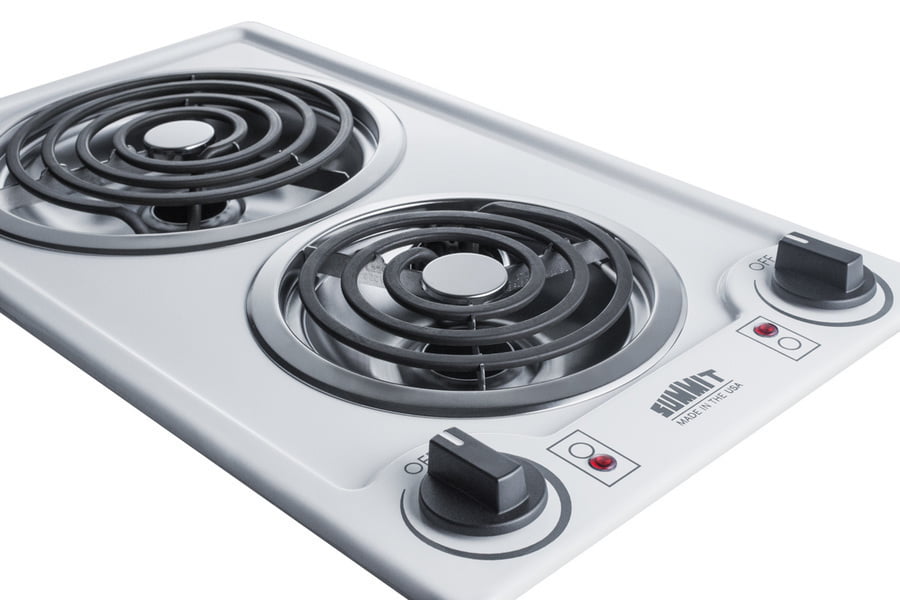

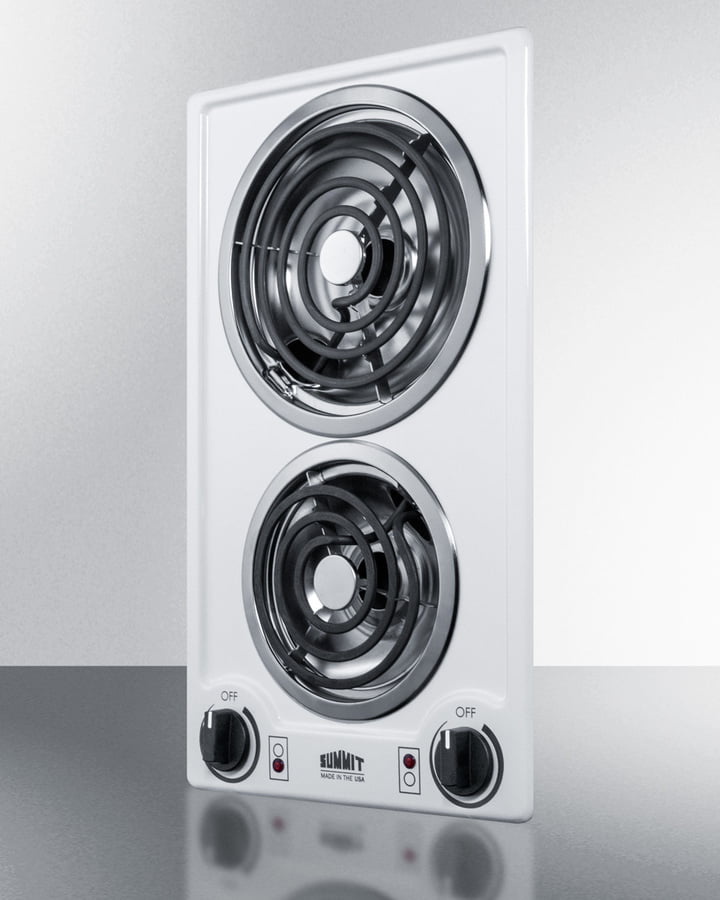

Summit CCE225WH 12" Wide 230V 2-Burner Coil Cooktop
Slim 12" Width Is An Ideal Fit For Hotels, Tiny Homes, And Other Kitchens With Limited Counter Space. Recessed Surface In A White Porcelain Finish Brings Cleaner Style To The Kitchen. Coil Elements For Long-Lasting Durability. 240V Operation Made In The USA Summit Offers An Extensive Selection Of Slim-Fitting Cooktops Designed And Manufactured In The USA. The Cce225Wh Is A 240V Cooktop With A Porcelain Surface In A Classic White Finish. Two Coil Elements (6" 675W In Front And 8" 950W In Rear) Offer Durable Heating, With Removable Chrome Drip Pans Included. The Push-To-Turn Knobs Are Simple And Intuitive, With Indicator Lights That Show Which Burner Is In Use For Added Safety. The Recessed Design Helps To Contain Spills For A Cleaner Cooking Experience. This Cooktop Is Designed To Fit Common 11 1/8" W X 19 1/8" D Counter Cutouts. This Unit Does Not Ship With A Power Cord And Must Be Hard-Wired By A Professional. Additional Choices Are Available In 115V, As Well As Black And Stainless Steel. Browse Our Website For Our Complete Selection Of Slim-Fitting Cooking Appliances.
- Coil elements : Traditional design offers reliable heating and strong durability for everyday cooking
- Chrome drip bowls : Removable drip pans for easier cleanup
- Recessed top : Curved design helps to contain spills on the surface
- White porcelain surface : Durable design holds up to heavy duty use
- 8" rear element : Larger element is ideal for heating wider pots and pans
- 6" front element : Standard burner accommodates most heating needs
- Indicator lights : Upfront lights illuminate to show which burners are in use
- Push-to-turn controls : Knobs require a small amount of force for added safety
- Fits popular cutout size : Designed for 11 1/8" W x 19 1/8" D cutouts for an easy fit in smaller kitchens
- ADA compliant design : Upfront controls and easy-to-operate knobs offer easier accessibility
- 240V operation : Requires a 15 amp circuit; power cord not included
| Overview | |
| Height of Cabinet | 3.25' (8 cm) |
| Width | 12.0' (30 cm) |
| Depth | 19.75' (50 cm) |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 7.0 |
| Voltage/Frequency | 230 V AC/60 Hz |
| Weight | 14.0 lbs. (6 kg) |
| Shipping Weight | 20.0 lbs. (9 kg) |
| Parts & Labor Warranty | 1 Year |
| Electric Cooktop | |
| Surface | Porcelain |
| Element Type | Coils |
| Number of Elements | 2 |
| controls | Dial |
| Countertop Cutout Height | 5.0' (13 cm) |
| Countertop Cutout Width | 11.13' (28 cm) |
| Countertop Cutout Depth | 19.13' (49 cm) |
| Power Source | 230V |
| Element #1 Size | 6.0' (15 cm) |
| Element #1 Wattage | 675.0 |
| Element #2 Size | 8.0' (20 cm) |
| Element #2 Wattage | 950.0 |
