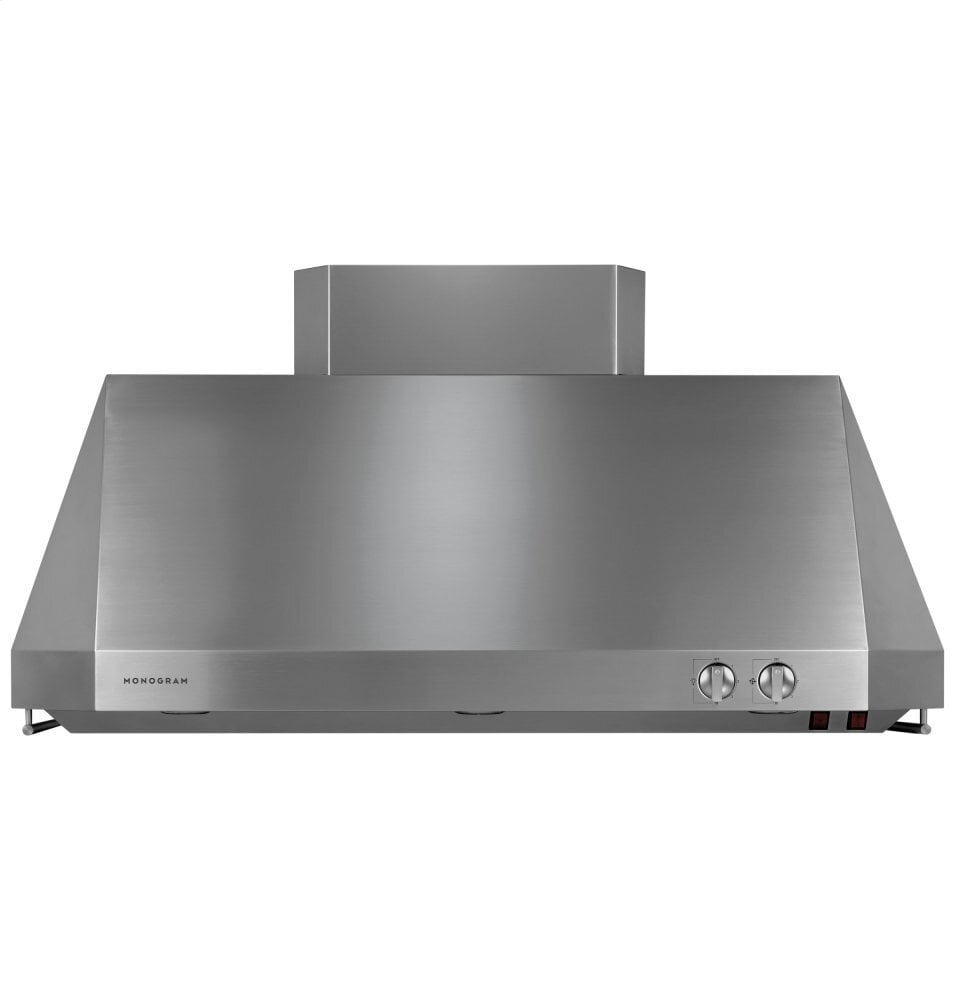

Monogram ZV48TSFSS Monogram 48" Stainless Steel Professional Hood
Monogram ZV48TSFSS Monogram 48" Stainless Steel Professional Hood
SKU: ZV48TSFSS
UPC: 84691076414
Colors:
Stainless SteelCall us at (800) 288-1647 for expert assistance in finding the perfect alternative.
Couldn't load pickup availability
When Will I Get My Order?
x
Monogram ZV48TSFSS Monogram 48" Stainless Steel Professional Hood
1090 Cfm Vertical Exhaust With Dual Blowers 3 Halogen Lamps With 4 Lighting Levels Infrared Warming Lamp(S) Utensil Racks Removable Grease Trays Dishwasher-Safe Removable Baffle Stainless Steel Filters Variable Speed Fan Control
- 1090 CFM vertical exhaust with dual blowers
- 3 halogen lamps with 4 lighting levels
- Infrared warming lamp(s)
- Utensil racks
- Removable grease trays
- Dishwasher-safe removable baffle stainless steel filters
- Variable speed fan control
| APPEARANCE | |
| Exterior Design | Tapered Sides |
| Design Style | Professional |
| Color Appearance | Stainless Steel |
| WARRANTY | |
| Warranty Notes | For models produced on or after January 1, 2006 See written warranty for full details |
| Parts Warranty | Limited 2-year entire appliance |
| Labor Warranty | Limited 2-year entire appliance |
| POWER / RATINGS | |
| Amps at 110V | 12.5 |
| ACCESSORIES | |
| Optional 12' Duct Cover | ZX48DC12 |
| Optional 6' Duct Cover | ZX48DC6 |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 130.0 |
| Overall Depth | 25.0 |
| Overall Width | 48.0 |
| Overall Height | 18.0 |
| Approximate Shipping Weight | 130.0 |
| Cabinet Width | 48.0 |
| FEATURES | |
| Utensil Rod | Brushed Stainless Steel |
| Welded / Finished Seams | Yes |
| Removable Filter | Yes |
| Vertical Exhaust Blower Rating (CFM) | 1090 |
| Recirculating Capable | No |
| Double Wall Construction | Yes |
| Dual Blowers | Yes |
| Indicator Lights | 'ON' |
| CFM/ Sones Rating | 1090/13.0 |
| Lighting Levels | 4 |
| Variable Speed Fan | Yes |
| Baffle Stainless Steel Filters | 3 |
| Exhaust Options | 10' Round Duct |
| Cooktop Lighting | 3 Halogen |
| Infrared Warming Lamps | 2 |
| Grease Tray | 3 |
| Damper in Transition | Yes |
| Required Duct Size | 10-in. Round |
| Working Speed CFM/Sones | 430/2.5 |
