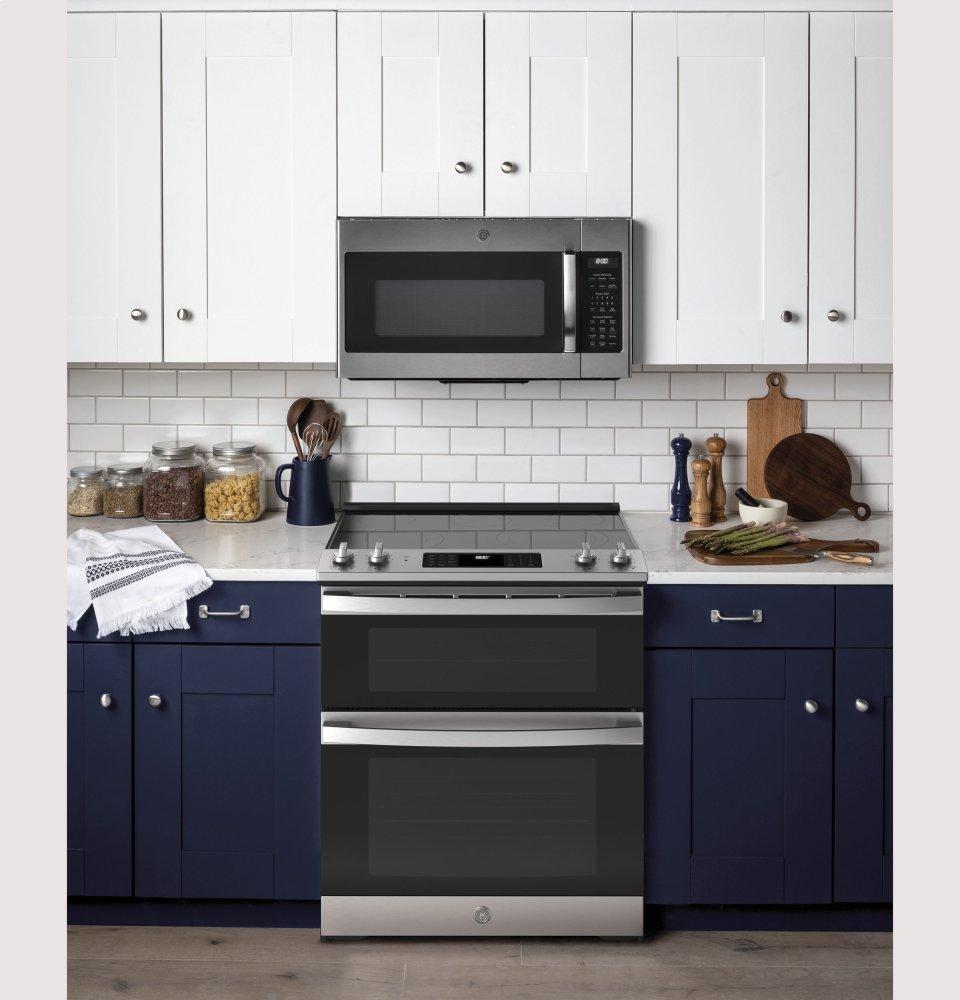

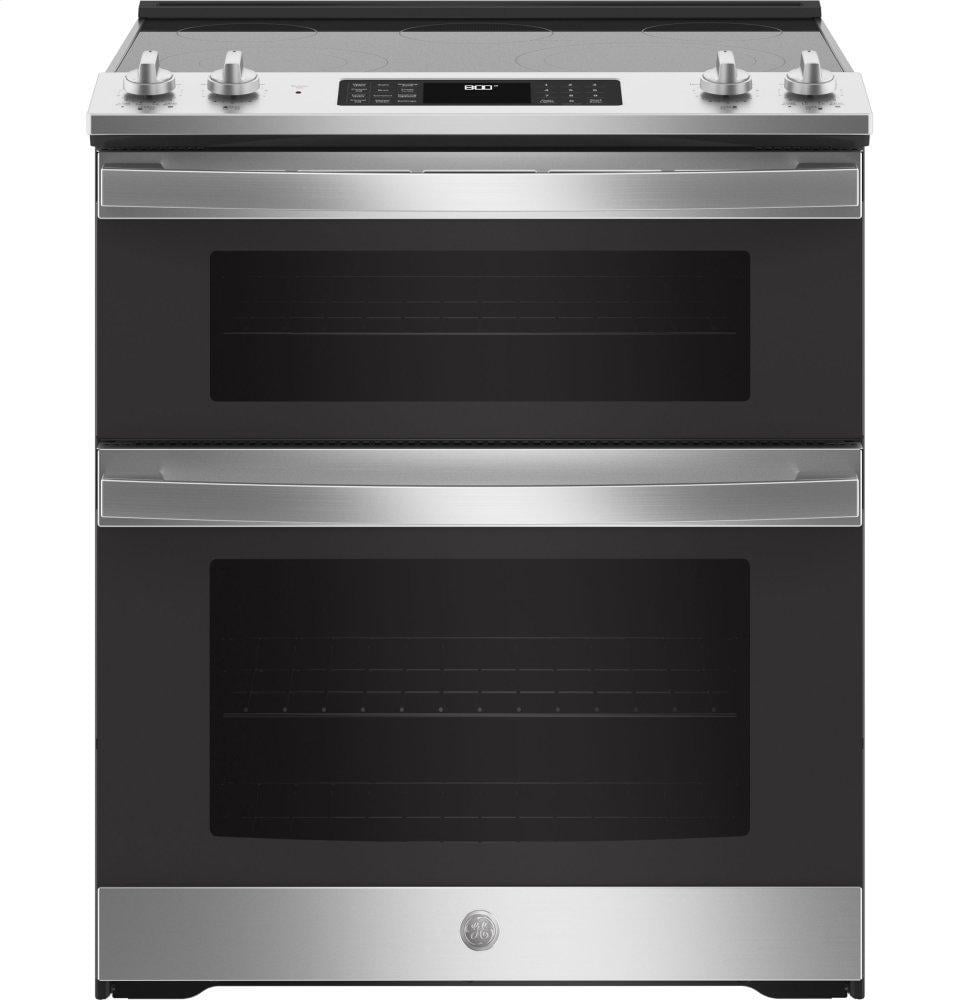

Ge Appliances JSS86SPSS Ge® 30" Slide-In Electric Convection Double Oven Range
Rebates &
Promotions
Replace your Cooktop or Wall Oven with a qualifying GE Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 installation rebate. - Replace your Cooktop or Wall Oven with a qualifying GE Cooktop, Wall Oven, Advantium Oven, or Slide In Range and receive up to a $300 installation rebate. Download Valid: 07/01/2025-12/31/2025
Fit Guarantee

This electric range will fit your existing 30" cut-out, or GE Appliances will help pay for modifications up to $300. See offer criteria and details

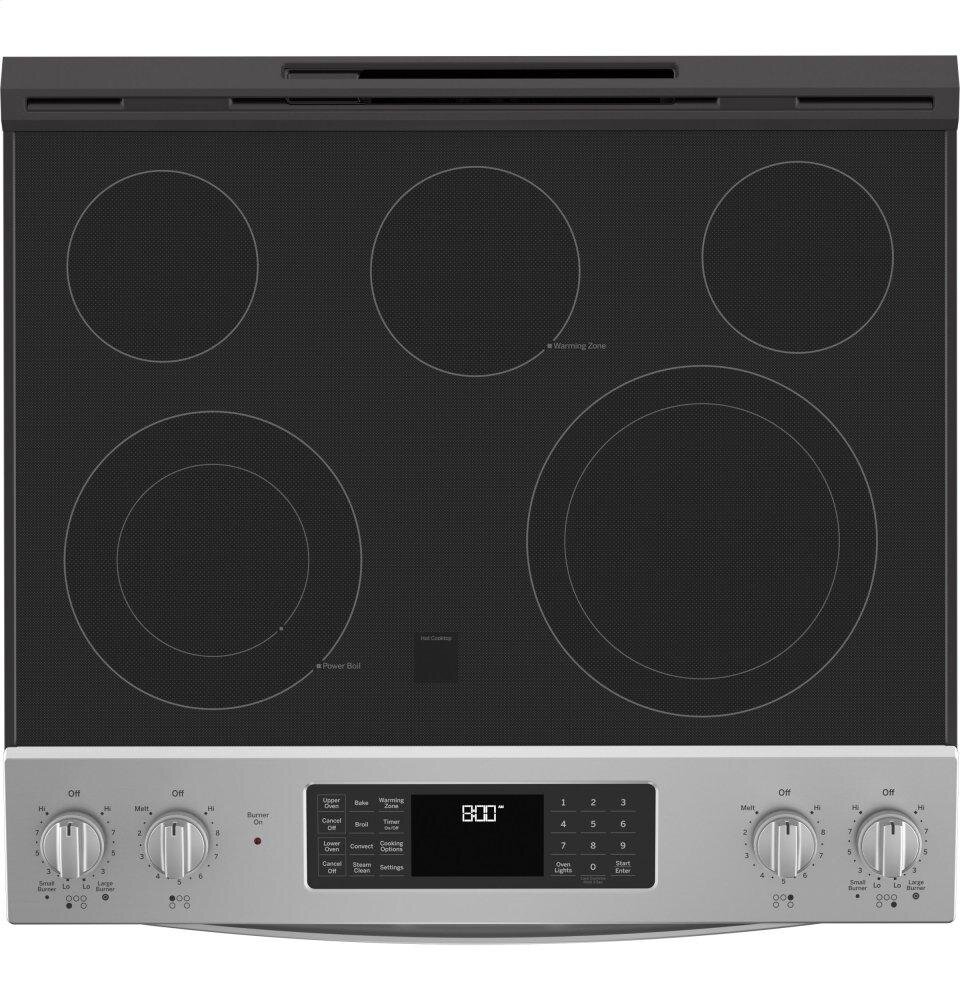

12"/9" dual element

A dual burner cooktop lets you choose between 12-inch and 9-inch electric elements for a more convenient cooking experience
Fifth element warming zone

A convenient low-heat warming zone provides even temperature control for foods on the cooktop
Fast preheat

Preheat the oven quickly and cut down on preheat time with a speedy preheat feature
Hidden baking element

This oven features a hidden baking element that gets rid of hard-to-reach areas and makes cleanup easier

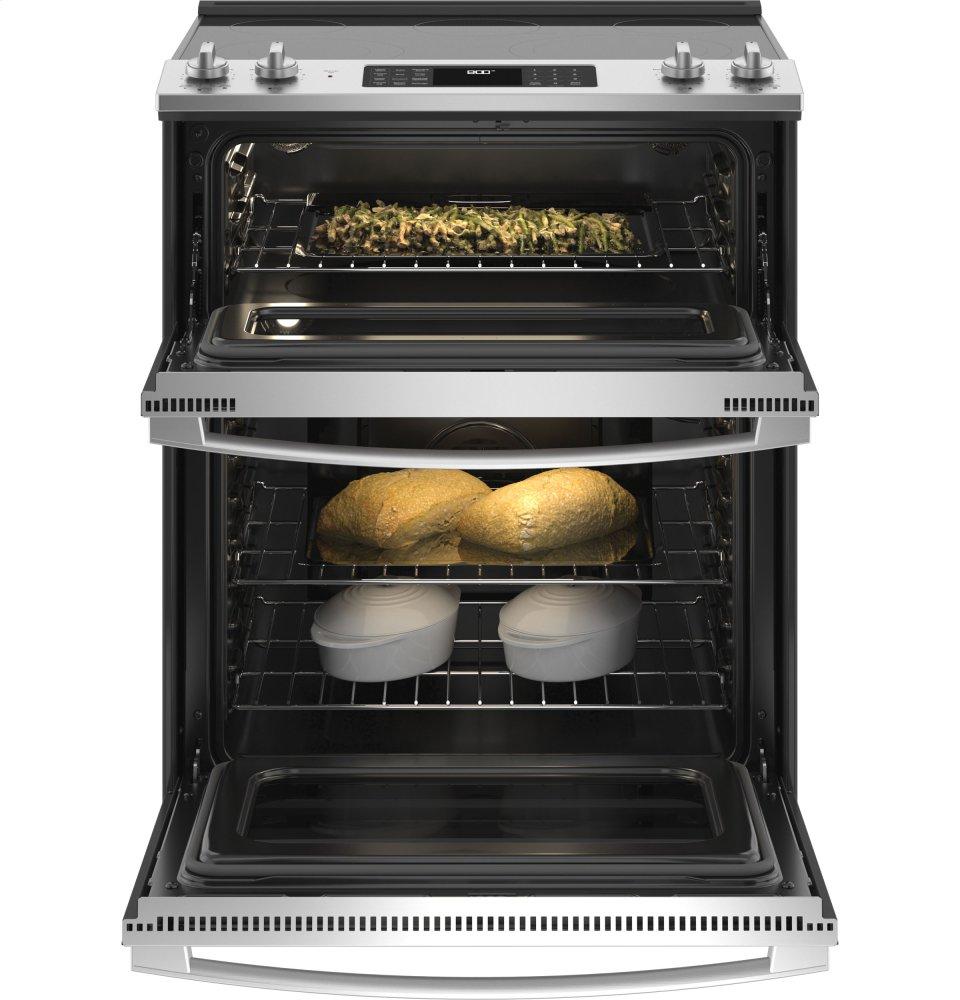

Large capacity double oven

Cook an entire meal at once with a 6.7 cubic foot total capacity double oven which provides enough room for multiple dishes
- Fit Guarantee
- 12"/9" dual element
- True Convection
- 9"/6" Power boil element
- Fifth element warming zone
- Fast preheat
- Steam clean
- Hidden baking element

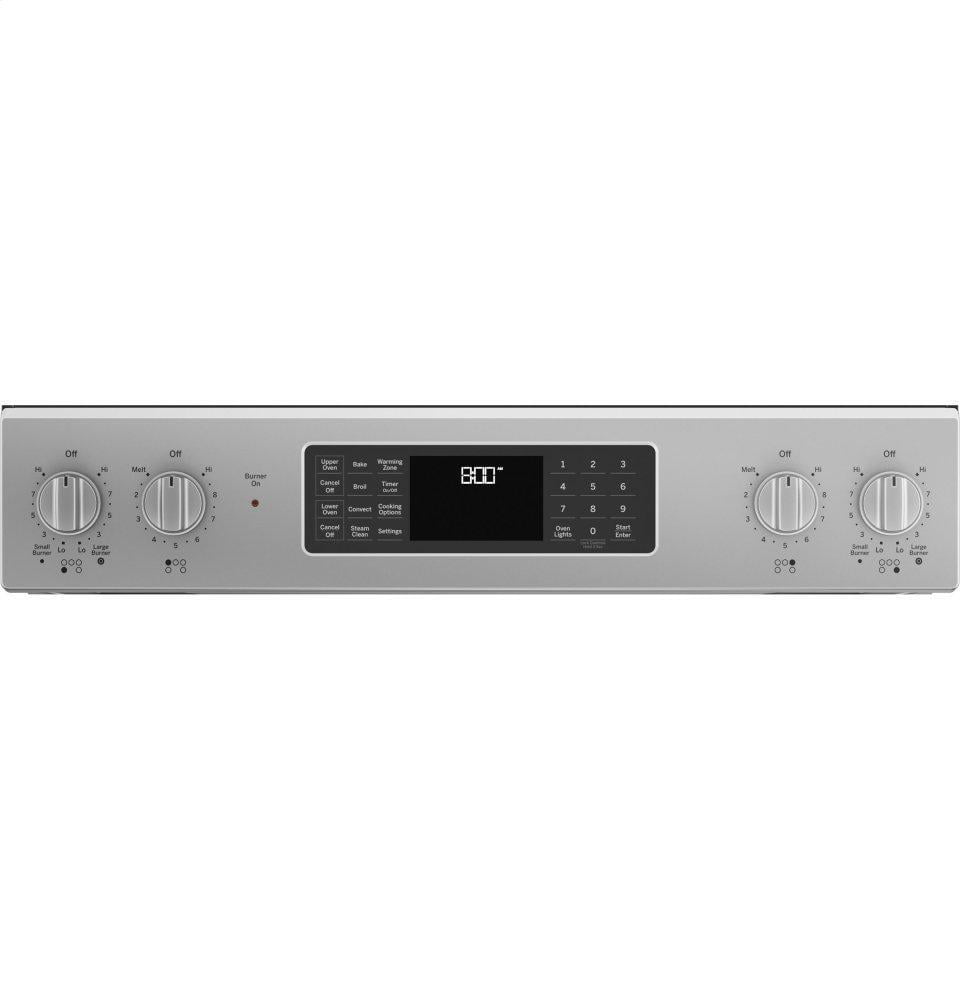

- Glass Touch Controls
- Large capacity double oven
| CAPACITY | |
| Total Capacity (cubic feet) | 6.6 |
| Capacity (Cu. Ft.) | 2.2 Upper / 4.4 Lower |
| FILTER | |
| App Filter - Cleaning Type | Steam and Self-Clean |
| App Filter - Control Type | Electronic touchpad |
| App Filter - Cooktop Type | Radiant Smoothtop |
| App Filter - Voltage | 240V |
| App Filter - Cooking Technology | Convection |
| App Filter - Cabinet Width | Cooking 30 in. (Standard) |
| App Filter - Product Type | Ranges Slide-In Double Oven |
| App Filter - Convection | Yes |
| App Filter - Fuel Type | Electric |
| APPEARANCE | |
| Control Knobs | Stainless Steel Appearance |
| Handle | Stainless Steel |
| Textured Steel Side Panels | Yes |
| Oven Door Features | Big View Oven Window Clearview Glass Door Full-Wrapped Stainless |
| Color Appearance | Stainless Steel |
| POWER / RATINGS | |
| KW Rating at 208V | 10.2 |
| Bake Wattage | 2650W |
| KW Rating at 240V | 13.6 |
| Convection Wattage | 1500W |
| Broiler Wattage | 3600W |
| Amp Rating at 208V | 40 |
| Amp Rating at 240V | 40 |
| WARRANTY | |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| ACCESSORIES | |
| Trim Kit | JXFILLR1BB Optional |
| Cooktop Cleaning | Cream Included Sponge |
| WEIGHTS & DIMENSIONS | |
| Net Weight | 170.0 |
| Height to Cooking Surface (in.) | 36 |
| Depth Without Handle | 27.375 |
| Overall Depth | 28.25 |
| Depth with Door Open | 48.25 |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/2 x 19-3/8 |
| Overall Width | 29.875 |
| Overall Height | 37.25 |
| Approximate Shipping Weight | 191.0 |
| Cabinet Width | 30.0 |
| Height to Top of Rear Vent Trim | 37.25 |
| FEATURES | |
| Oven Cleaning Type | Steam Clean |
| Hot Surface Indicator Lights | 1 |
| Cooktop Burner Type | Radiant Smoothtop |
| Cooking System | True Convection with Precise Air |
| Oven Interior | 1 Incandescent Light Black |
| Element - Center | 6' 100W Warming Zone |
| Element - Left Front | 9'/6' 3100W Power Boil |

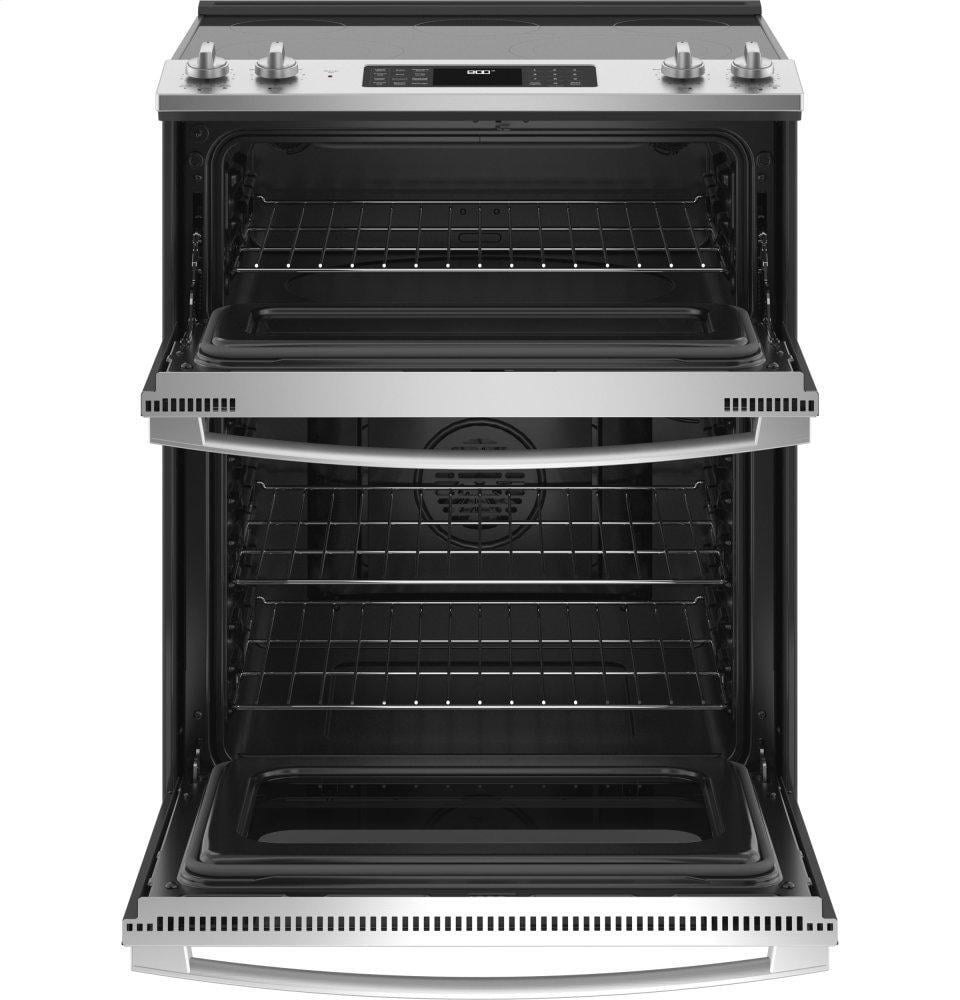

| Oven Rack Features | 3 Oven Racks 6 Rack Positions |
| Melt Setting | Yes |
| Oven Features | 4-Pass Bake Element 8-Pass Broil Element Hidden Bake |
| Fuel Type | Electric |
| Cooking Technology | Convection |
| Cooktop Surface | Black Ceramic Glass |
| Configuration | Double Oven Range |
| Control Type | Digital Temperature Display Electronic Touchpads |
| Element - Right Front | 12'/9' 3000W |
| Oven Control Features | Audible Preheat Signal Auto Oven Shut-Off with Override Auto Recipe Conversion Certified Sabbath Mode Control Lock Capability Convection Bake Delay Bake Option (Time Bake) Electronic Clock & Kitchen Timer Fast Preheat Hi / Low Broil Oven 'ON' Light |
| Product Type | Slide-In Double Oven |
| Interior Oven Light | 1 Halogen Preheat Notification |
| Cooktop Type | Radiant Smoothtop |
| Control Location | Front |
| Element - Right Rear | 6' 1200W |
| Heating Element 'ON' Indicator Light | 1 |
| Element - Left Rear | 6' 1200W |
