Broan 124 Broan® Heater, 750/1500W 120Vac, 1125W 208Vac, 1500W 240Vac

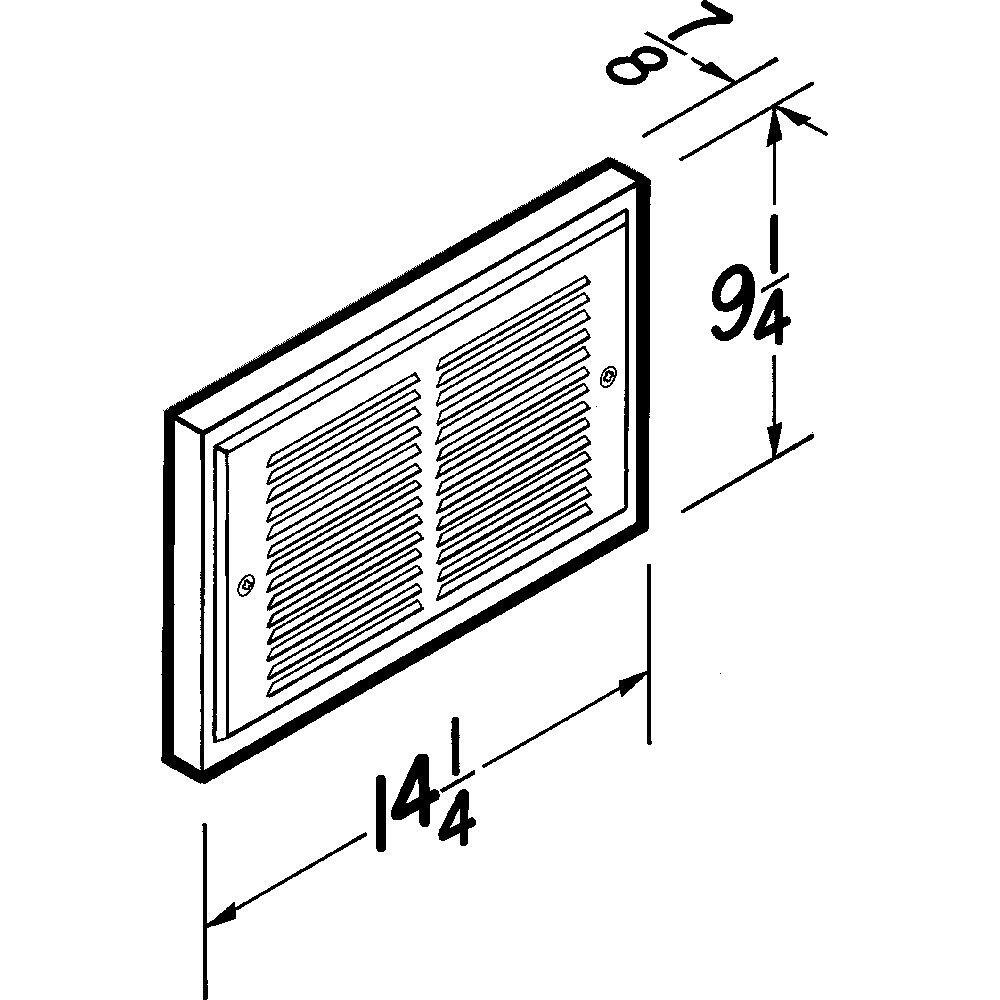

Broan® Heater, 750/1500W 120Vac, 1125W 208Vac, 1500W 240Vac The 14-19/64 In. X 9-19/64 In. 1,500-Watt White Wall Heater Is A Convertible Unit That Can Produce 750 Watts At 120 Volts, 1,125 Watts At 208 Vac Or 1,500 Watts At 240 Vac. This Wall Heater Features Louvers That Direct Air Down Towards The Floor To Distribute Heat Evenly. The Factory-Wired Design Of This Heater Provides Thermal Over-Load Protection.
- 1,500-watt heater at 120 volts can be converted to produce 750 watts at 120 volts, 1,125 watts at 208 VAC or 1,500 watts at 240 VAC
- Manual reset
- Operates from convenient wall-mounted line-voltage Broan model 87W thermostat (not included)
- Thermal over-load protection
- Factory wired
- Sturdy, 1-piece steel grille
- Louvers direct air downward for even heat distribution
- UL listed
| Auto Shut-off | Yes |
| cUL Listed | No |
| Heater Type | Fan-Forced Wall |
| Number Of Heat Settings | On-Off |
| Project Pack | No |
| Thermostat | No |
| UL Listed | No |
| Coverage Area (sq ft) | 100-150 |
| BTU/hr at 120 Volts | 5120 |
| BTU/hr at 208 Volts | 3840 |
| BTU/hr at 240 Volts | 5120 |
| Color Finish | White Enamel Steel |
| Grille Dimensions - Width | 14.25 |
| Housing Length/Depth | 3.75 |
| Watts And Amps At 120 Volts | 12.5 |
| Watts And Amps At 208 Volts | 5.41 |
| Watts And Amps At 240 Volts | 6.25 |
| Watts at 120 VAC | 1500 |
| Watts at 208 VAC | 1125 |
| Watts at 240 VAC | 1500 |
| Manufacturer Warranty | 1 Year |
