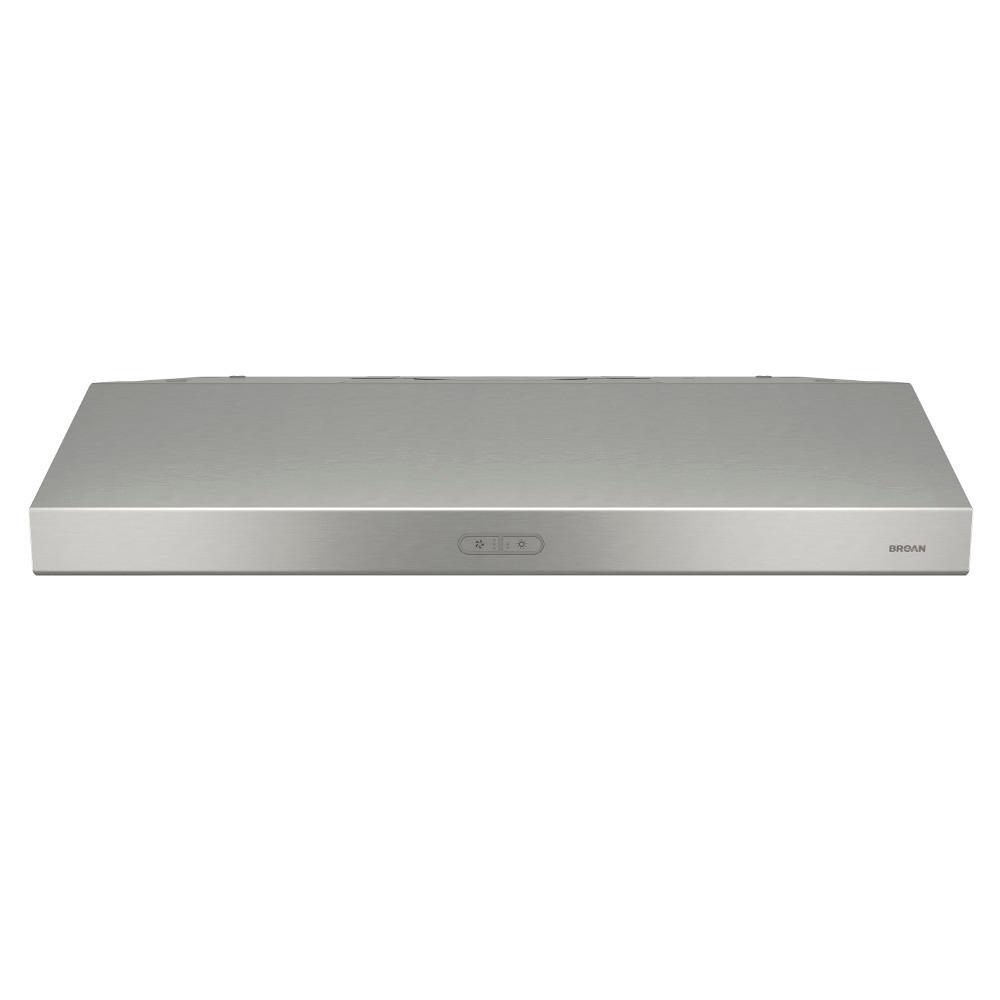

Broan BCDF136SS Broan® Glacier 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower Cfm, Stainless Steel
Broan® Glacier 36-Inch Convertible Under-Cabinet Range Hood, 375 Max Blower Cfm, Stainless Steel This Under-Cabinet Convertible Range Hood Features A Clean, Contemporary Shape To Complement Nearly Any Kitchen Design. Equipped With The Exclusive Broan Captur™ System, Which Combines Advanced Blower Design With New Filter Technology, This 375 Max Blower Cfm-Rated Hood Provides 98.1% Removal Of Smoke And Odor To Protect Your Home And Family From Airborne Pollutants Caused From Cooking. The Quiet-Running Glacier Is Also Designed With Smooth Flow Technology, Which Streamlines The Path Of Air For Improved Efficiency And Noise Reduction. Tap Touch Electronic Controls Operate The 3 Fan Speeds And Advanced Led Lighting System. Using The Included Ez1® System, Glacier Can Easily Be Installed By One Person In Up To Half The Time Of A Standard Install.
- Convertible range hood can be installed as venting or non-venting to fit a variety of installation needs
- Tap-touch capacitive control features a smooth, easy-to-clean surface
- Captur™ system and 375 max blower CFM is 98.1% efficient in removal of smoke and odor from cooking
- Smooth-flow blower wheel design and high flow filters ensure quiet operation, 2.0 Sones, at normal speed
- Dishwasher-safe, micromesh filters with clean reminder provide efficient grease removal
- Bright, 2-level LED modules are supported by a 3-year warranty and illuminate evenly (Modules included)
- Hidden louvers on top of hood exhaust away from cabinetry
- EZ1® system makes it easy for single-person installation in less than half the time of traditional methods
- Limited 1 year warranty
- Can be installed for ADA Compliance with the purchase of a wall switch (not included) and Broan-NuTone model HAWRK3 Low Voltage Wiring Kit for ADA Application (purchase separately)
- Non-duct capable with use of charcoal filters (model HPF36 [service part #S97020467]), sold separately
- Comparable to NuTone model AHDA136SS
- Range hood is installed as hardwired or with an optional power cord kit (SHCK44; sold separately)
Filter Type | Micro Mesh |
Heat Sentry™ | No |
HVI Certified | Yes |
Lighting Type | LED |
Sound Level (Sones) | 1.5 |
UL Listed | Yes |
ADA Compliance | Yes |
Damper Included | No |
ENERGY STAR® certified | No |
Light Bulb Wattage | 4.5 |
Light Bulbs Included | Yes |
Light Levels | 2 |
Material | Steel |
Nightlight Or Nighlight Setting | No |
Ductless Recirculation Capable | Yes |
Ductless Filter Or Kit Included | No |
Remote Operation Capable | No |
Speed Levels | 3 |
Switch Control Type | Capacitive Touch |
Rated Voltage | 120 |
Boost Mode | No |
Color Finish | Stainless Steel |
Rated Amps | 0.65 |

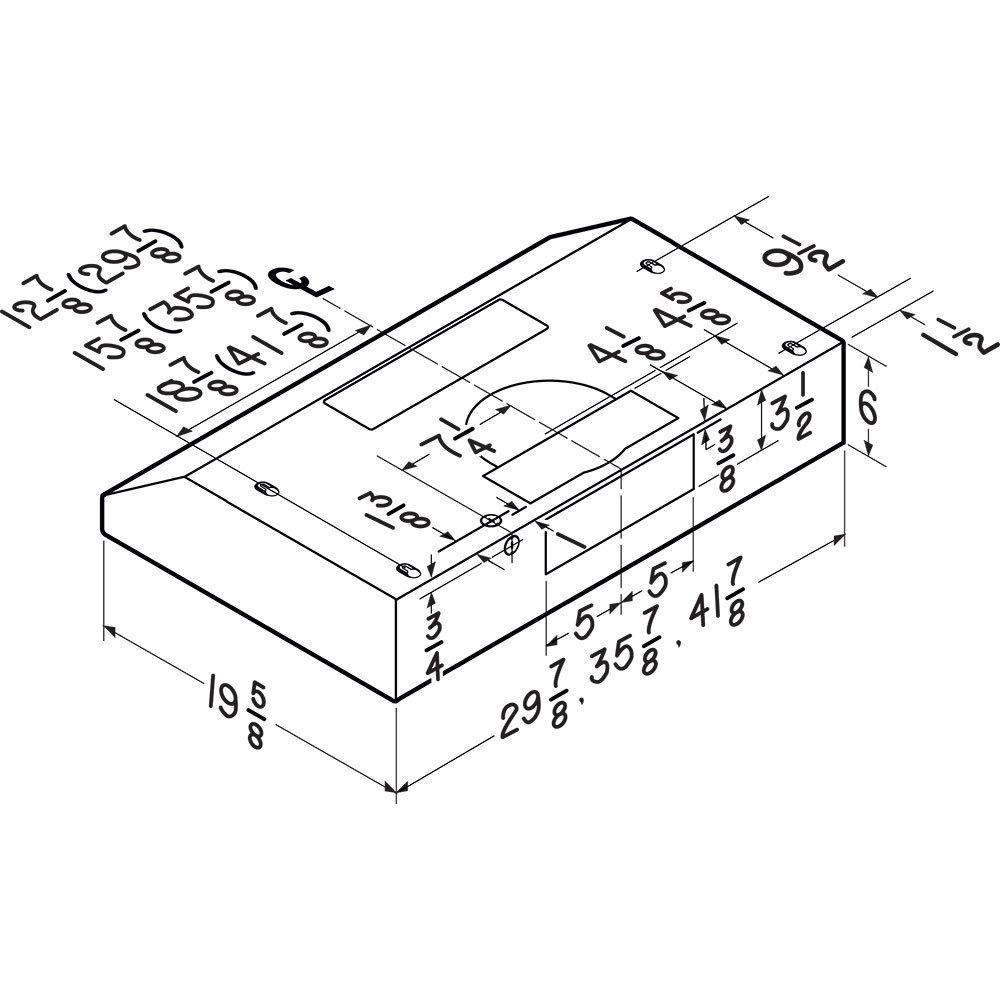

Product Depth | 19.625' |
Product Height | 6' |
Product Width | 36' |
Built-In Timer | No |
Capture Efficiency | 98.1 |
CFM | 375 Max |
Diameter | 7' Round |
Vent Type | Convertible Built-In |
Duct Direction | Horizontal/Vertical |
Bulb (Recommended Type) | Integrated LED Module |
Light Color Temp | 3000 |
Manufacturer Warranty | 1 Year, 3 Year LED module |
Wattage | 78 |
