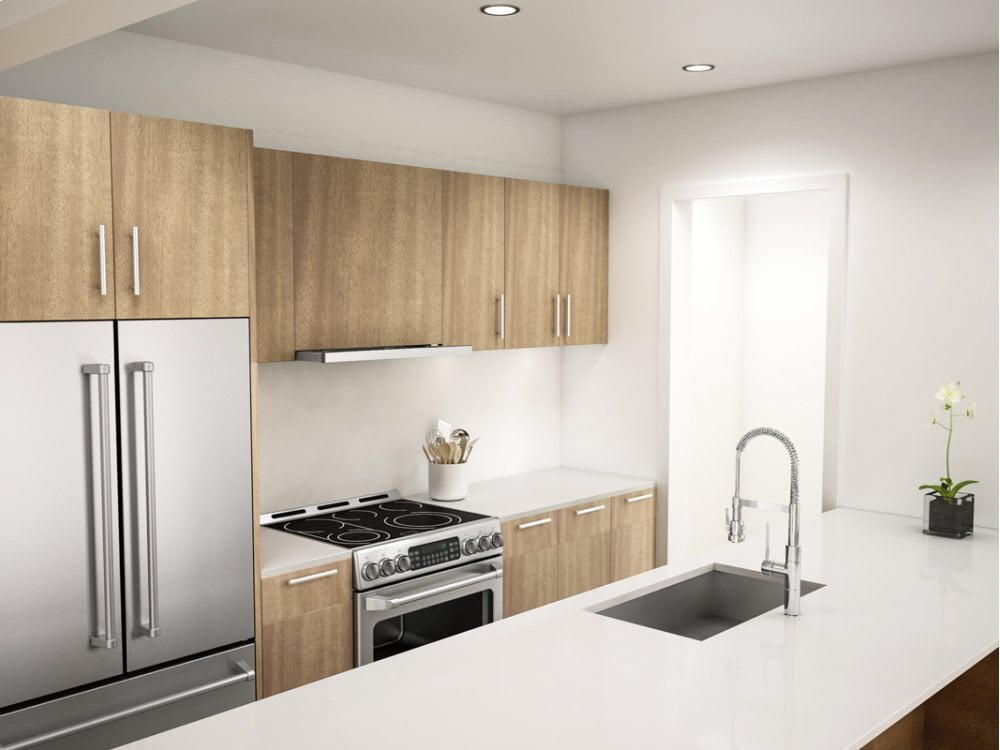

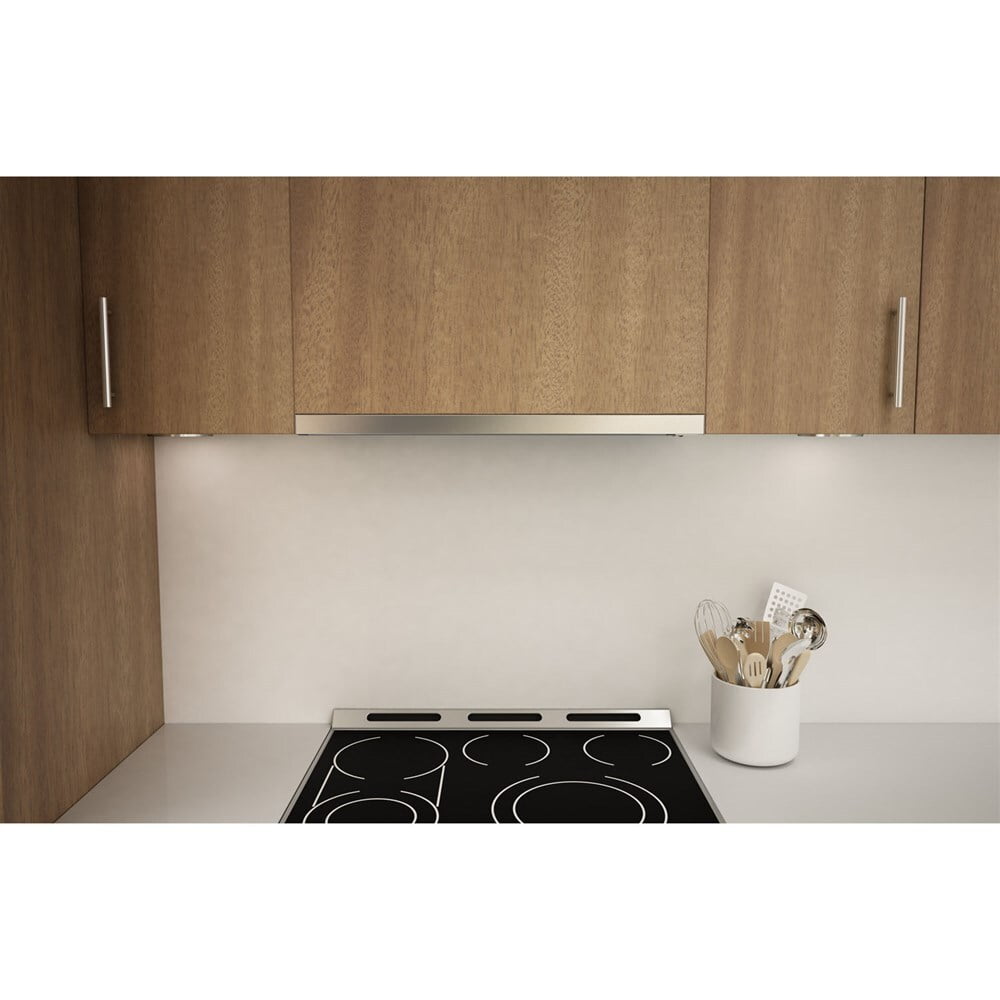

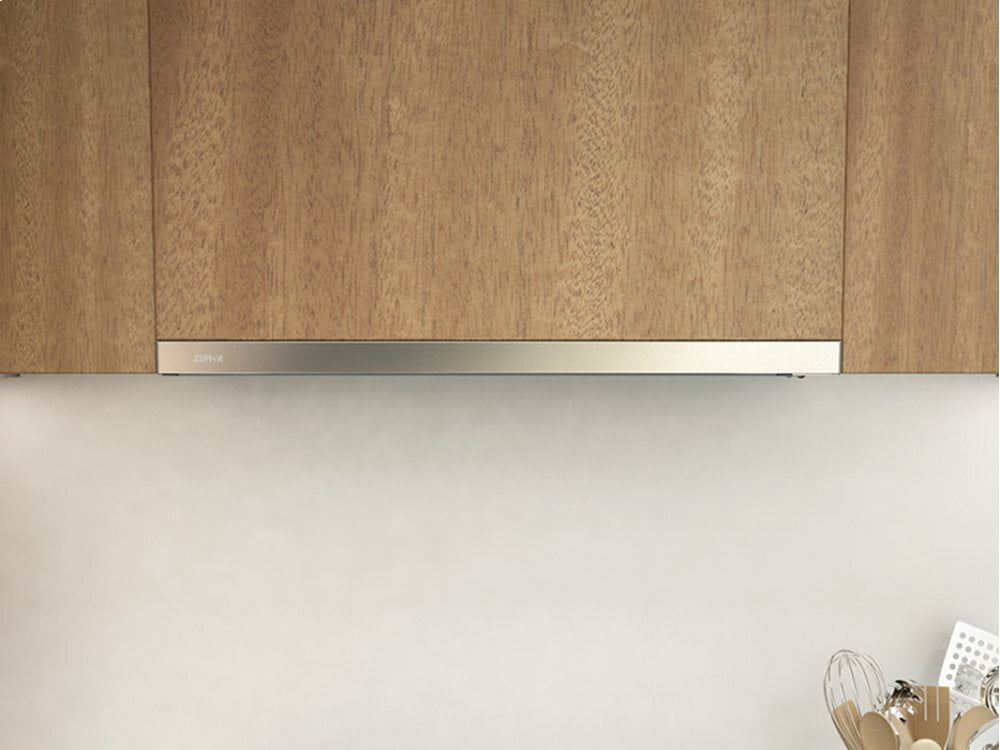

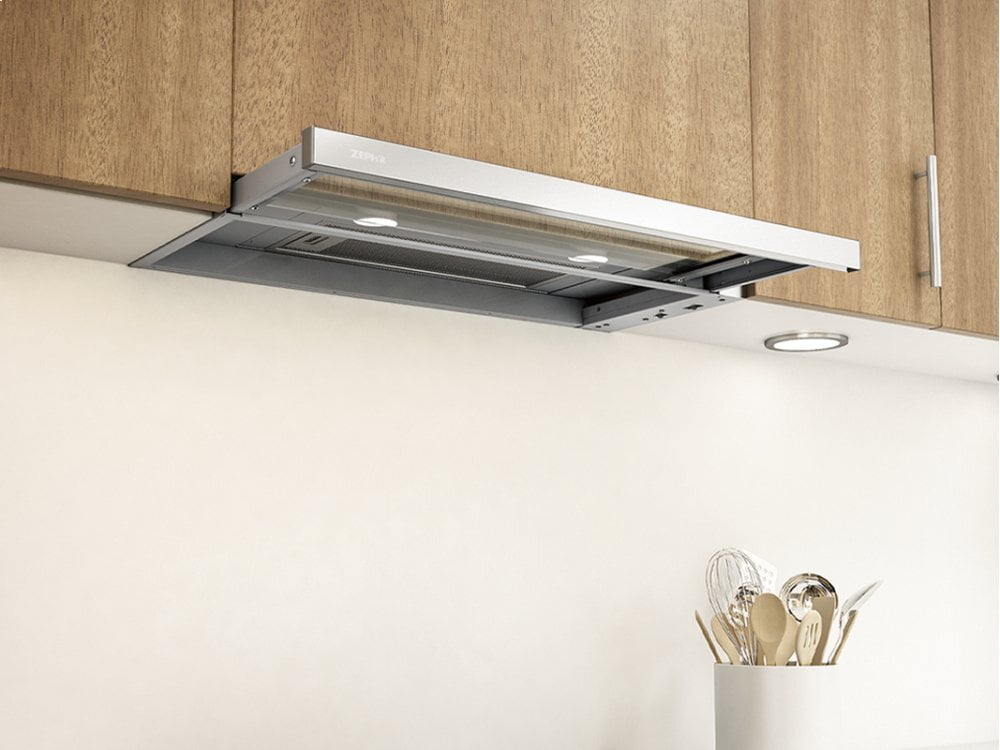

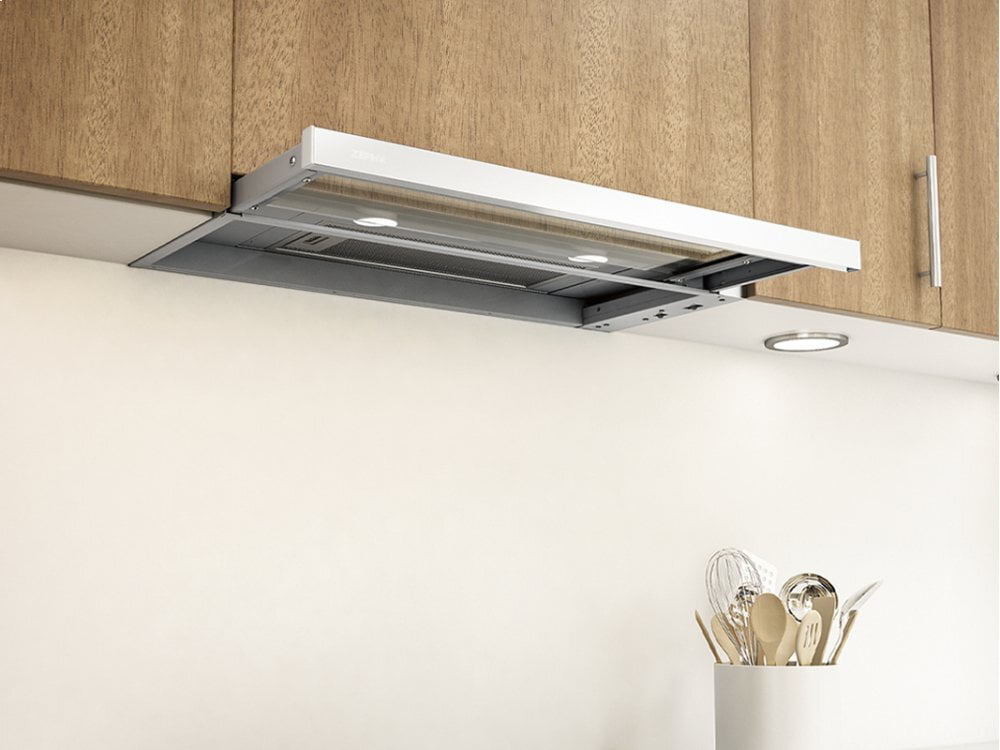

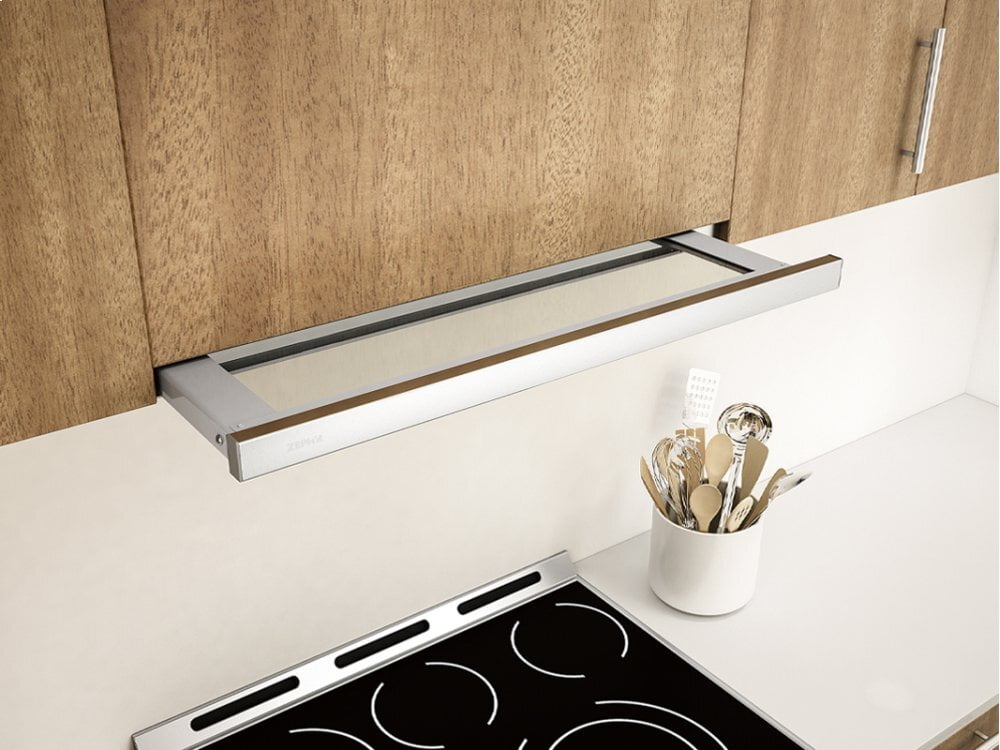

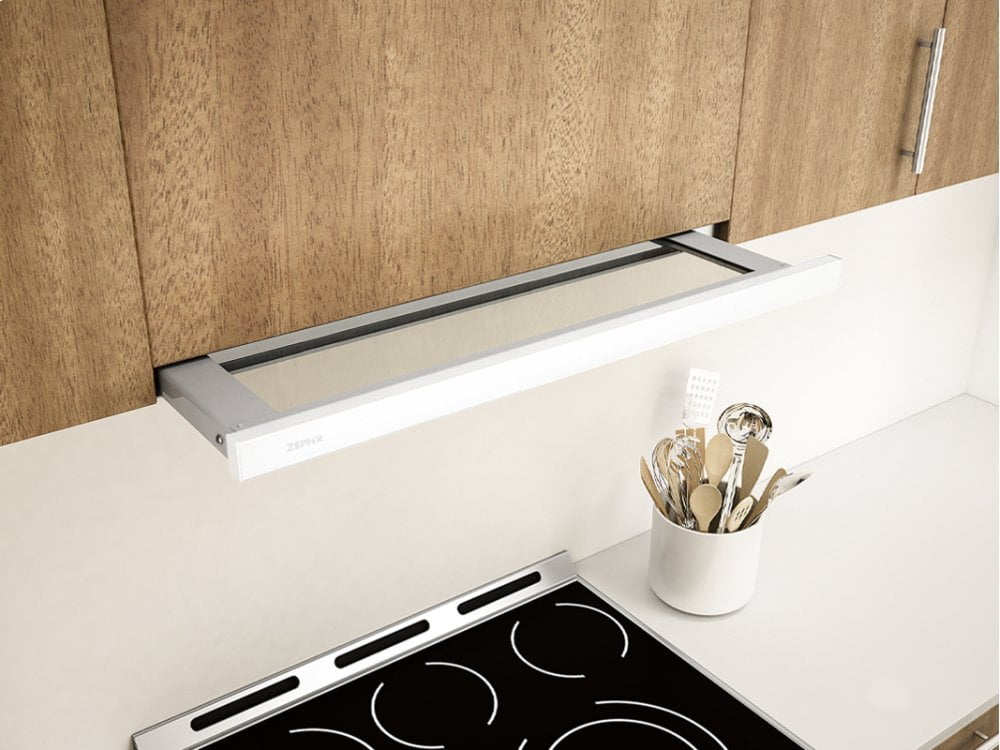

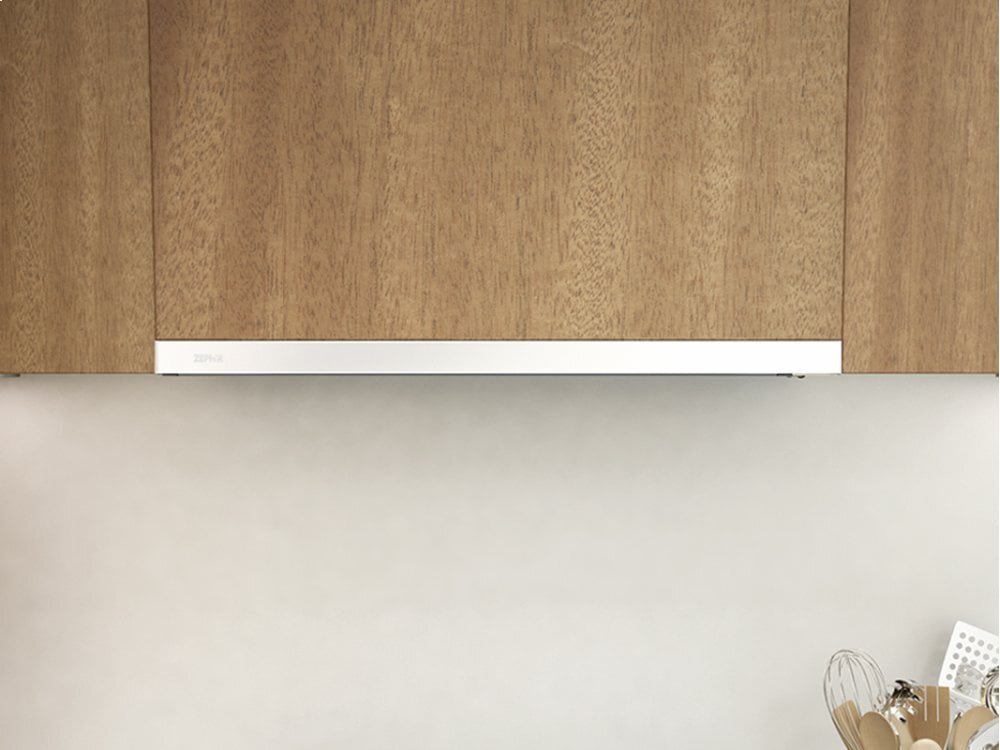

Zephyr ZPIE30AG290 30" Pisa Under-Cabinet
Tucked Neatly Out Of Sight Within Your Cabinetry, Pisa Is A Minimal Alternative To Your Typical Under-Cabinet Range Hood. Powered By The Strength Of A 500-Cfm Or 290-Cfm Blower, Pisa'S Low-Profile Body Delivers Stunning Design And Quality Performance. Its Retractable Visor Helps In The Capture Of Air And Puts Control At Your Fingertips. Pisa Is Perfect For Kitchens That Require A More Discreet Look.
- 290 CFM
- Recirculating
- Mesh Filter
- Stainless Steel
- Vertical and Horizontal Ducting
- Max Sones 3.2
- Halogen Lighting
- Aluminum Mesh Filters
- Low-Profile Body
- Mechanical Slide Controls
- Multiple Color Options
- Optional Recirculating Kit
- Value Driven
- Vertical or Horizontal Ducting
UPC | 646328003554 |
BLOWER INCLUDED YES/NO | yes |
INTERNAL BLOWER 1 CFM | 290 |
INTERNAL BLOWER 1 SONES | 3.2 |
CONTROLS TYPE | Mechanical slide |
BLOWER SPEEDS | 3 |
AUTOMATIC DELAY-OFF | no |
CLEANAIR FUNCTION | no |
LIGHTS TYPE (INCLUDED) | halogen |
LIGHTS QUANTITY | 2 |
WATTS PER BULB | 50 |
LIGHTS LEVELS | 2 |
FILTER TYPE | mesh |
DUCT DISCHARGE | vertical or horizontal |
DUCT SIZE, VERTICAL, INCHES | 6 |
DUCT SIZE, HORIZONTAL, INCHES | NA |
MOUNTING HEIGHT ABOVE COOKTOP, INCHES | 24 - 32 |
INPUT VOLTAGE | 120 |
MAXIMUM AMPERAGE | 1.55 |
NOMINAL WIDTH, INCHES | 30 |
NET WIDTH, INCHES | 29.9375 |
DEPTH, INCHES | 11.9375 - 18.75 |
HEIGHT, INCHES (for chimney hoods, heights include duct covers) | 1.5 |
WEIGHT, LBS | 29.6 |
SHIPPING HEIGHT, INCHES | 16.34 |
SHIPPING WIDTH, INCHES | 33.27 |
SHIPPING LENGTH, INCHES | 15.55 |
SHIPPING WEIGHT, LBS | 36.7 |
