Summit C48ELGLASSPUMP 48" Wide All-In-One Kitchenette, No Plumbing Needed

Summit C48ELGLASSPUMP 48" Wide All-In-One Kitchenette, No Plumbing Needed

Summit Brings Innovation And Convenience To Non-Traditional Kitchen Spaces With A New Line Of All... Read more...

x

  • Installation and Removal

    x

    When Will I Get My Order?

    x

    THIS ITEM QUALIFIES FOR FREE DELIVERY!

    List Price: $3,540.00
    Our Price: $3,540.00
    EXTENDED PROTECTION

    5 year plan

    $414.99

    3 year plan

    $236.99
    Shipping calculated at checkout.

    Availability : Temporarily Out Of Stock
    Secure your place in line for this item. As it becomes available it will be fulfilled on a first come first serve basis. We are doing everything we can to expedite orders.

    View full details

    x

  • Installation and Removal

    x

    When Will I Get My Order?

    x

    Summit C48ELGLASSPUMP 48
    Summit C48ELGLASSPUMP 48" Wide All-In-One Kitchenette, No Plumbing Needed

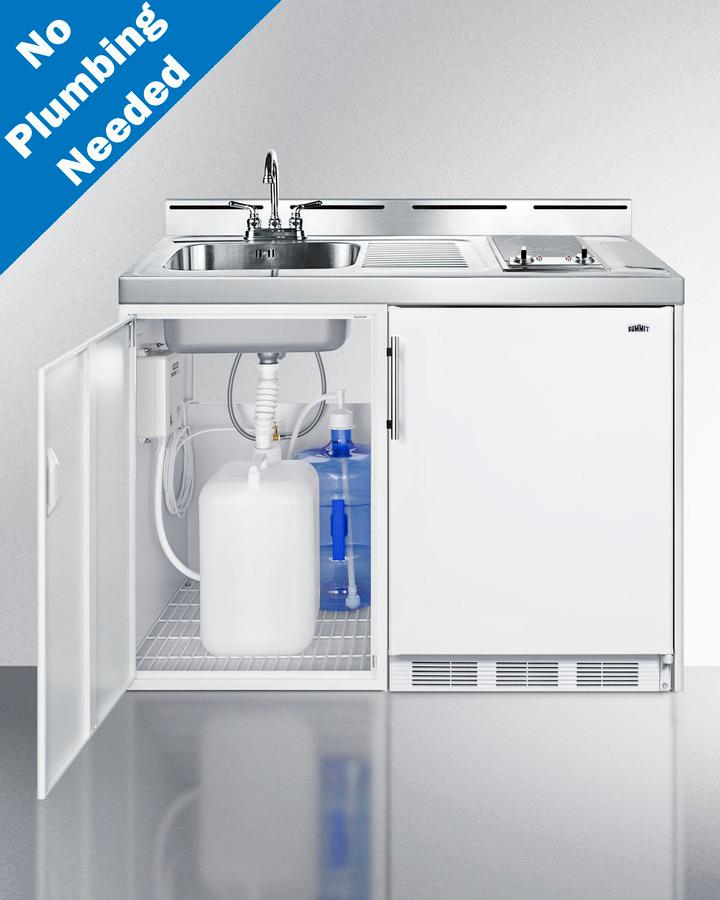

    Summit Brings Innovation And Convenience To Non-Traditional Kitchen Spaces With A New Line Of All-In-One Kitchenettes Designed For Use In Settings Without Standard Water Lines. Great For Efficiency Housing, Off-Grid Living, And Temporary Or Basement Kitchens, The C48Elglasspump Is A 48 Inch Wide Kitchenette Composed Of A Refrigerator-Freezer, 2-Burner Radiant Cooktop, Sink, And Storage Cabinet That Can Be Used As A Portable Water Station. We Include Ckpumpkit, A Package That Features Everything You Need To Connect The Sink To A Removable 5 Gallon Water Jug To Pump Your Fresh Water Through The Included Faucet. The Kit Comes With A 5 Gallon Jug, 6 Gallon Waste Water Container, 110V Water Pump, And All Of The Hardware And Tubing You Need To Install Your Own "No Plumbing" Sink. The C48Elglasspump Features A Smooth 2-Burner Readiant Cooktop In Black Glass For Convenient Stovetop Heating. The Cooktop Includes Its Own Pre-Installed 3-Prong Cord For Easy Setup. It Ships With Our Popular Ct661W European Refrigerator-Freezer, Offering 5.1 Cu.Ft. Of Storage Capacity With Adjustable Glass Shelves, Door Racks, A Scalloped Steel Wine Shelf, And Large Crisper Drawer Ideal For Keeping Produce At Its Best. Sized Just Under 48 Inches Wide, The C48Elglasspump Comes In A Shallow 24 Inch Depth Ideal For Smaller Kitchens. It Features A Classic White Cabinet Finish With A Durable Stainless Steel Work Surface And Backguard. For More Storage Options, Add Our Apss48 Appliance Station Shelf Or Our Selection Of Wall Cabinets. This Unit Ships On One Pallet In Three Overboxed Packages (Kitchenette, Refrigerator, And Pump Kit). Just Slide The Refrigerator In, Install The Pump Kit, Plug In The Appliances, And Enjoy Your Fully Functional Efficiency Kitchen With No Plumbing Required!

    • Includes a refrigerator-freezer, 2-burner cooktop, sink, and water pump kit to meet all of your basic kitchen needs
    • Allows you to create your own portable handwash station without a direct water line connection or drain
    • Includes SUMMIT CT661W, a refrigerator-freezer with dual evaporator cooling, adjustable glass shelves, a crisper, and more
    • Over 5 cu.ft. of storage space inside, with a compact freezer compartment included
    • Easy to install 110V pump system to connect the included fresh water jug to your sink
    • Large cabinet interior can fit up to two standard 5 gallon jugs (1 included with kit)
    • Connects to your sink drain for easy cleanup
    • CKPUMPKIT ships with all of the pieces you need to connect the water jug and waste container to your sink
    • Includes a 5 3/4" 600W front element and 7" 900W rear element in a smooth black finish for easier cleanup and safer cooking
    • Operating indicators light up to show which burner is in use
    • Cooktop knobs require a small amount of force to turn the elements on, helping to prevent accidents
    • Both the cooktop (12 amps) and refrigerator (1.2 amps) include 3-pronged cords for easy setup
    • Attractive surface in a durable stainless steel finish
    • Kitchenette, refrigerator, and pump kit are individually overboxed and ship on a single pallet for transportation convenience
    • Just 24" deep for an easy fit in efficiency kitchen spaces
    • Includes a 4" high backguard to complete the look and offer added protection to your walls
    • Refrigerator-freezer utilizes eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations
    • Available in 12" or 18" wide sizes, with powder-coated metal construction in white or black finishes
    • Add more storage convenience with the APSS48 Appliance Station, a stainless steel shelving system designed for easy installation on this unit
    • Environmentally friendly design without ozone-damaging chemicals

    Overview
    Height of Cabinet 40.0' (102 cm)
    Width 47.25' (120 cm)
    Depth 24.0' (61 cm)
    Depth with door at 90° 44.25' (112 cm)
    Capacity 5.1 cu.ft. (144 L)
    Defrost Type Cycle
    Door White
    Cabinet White
    US Electrical Safety ETL
    Canadian Electrical Safety ETL-C
    Amps 25.0
    Voltage/Frequency 115 V AC/60 Hz
    Weight 250.0 lbs. (113 kg)
    Shipping Weight 271.0 lbs. (123 kg)
    Parts & Labor Warranty 1 Year
    UPC 761101086286
    Kitchenette
    Refrigerator Included CT661W
    Refrigerator Door Swing RHD
    Reversible Yes
    Adjustable Shelves Yes
    Shelf Type Glass
    Shelf Qty 3
    Crisper Qty 1
    Crisper Finish Transparent
    Crisper Cover Glass
    Full Door Shelves 3
    Thermostat Type Dial
    Interior Light Yes
    Refrigerant Type R600a
    Refrigerant Amount 0.92 oz.
    Cooking Type Smooth-Top Cooktop
    Number of Burners 2
    Cooktop Controls Dial
    Interior Height 1 19.5' (50 cm)
    Interior Width 1 20.5' (52 cm)
    Interior Depth 1 17.0' (43 cm)
    Interior Height 2 5.0' (13 cm)
    Interior Width 2 19.0' (48 cm)
    Interior Depth 2 11.5' (29 cm)
    Compressor Step Height 7.0' (18 cm)
    Compressor Step With 20.5' (52 cm)
    Compressor Step Depth 5.0' (13 cm)
    Sink Height 5.88' (15 cm)
    Sink Width 16.75' (43 cm)
    Sink Depth 14.88' (38 cm)
