Summit AR5IF 24 Inch Wide Ada Compliant Built-In Undercounter All-Refrigerator For Residential Use, Auto Defrost With Panel-Ready Door And Black Cabinet

Summit AR5IF 24 Inch Wide Ada Compliant Built-In Undercounter All-Refrigerator For Residential Use, Auto Defrost With Panel-Ready Door And Black Cabinet

THIS ITEM QUALIFIES FOR FREE DELIVERY!

Call us at (800) 288-1647 for expert assistance in finding the perfect alternative.

Shipping calculated at checkout.
View full details

When Will I Get My Order?

x

Summit AR5IF 24 Inch Wide Ada Compliant Built-In Undercounter All-Refrigerator For Residential Use, Auto Defrost With Panel-Ready Door And Black Cabinet
Summit AR5IF 24 Inch Wide Ada Compliant Built-In Undercounter All-Refrigerator For Residential Use, Auto Defrost With Panel-Ready Door And Black Cabinet
32" Height For Use Under Lower Ada Compliant Counters Flexible Design Allows Built-In Or Freestanding Use In 24" Spaces Automatic Defrost Ensures Minimum User Maintenance Customizable Door Front Accepts Full Overlay Panels For A Seamless Look That Can Blend Into Cabinetry Deluxe Interior With Glass Shelves, Door Storage, And A Scalloped Wine Shelf Made In Europe Summit Offers The Industry'S Largest Selection Of Ada Compliant Built-In Undercounter Refrigeration, With A Range Of Choices To Best Meet The Needs Of Any Home Or Facility With Height Limitations. Sized With A 24" Footprint And 32" Height, The Ar5If Is An All-Refrigerator With A Front-Breathing System That Allows Built-In Installation Under Lower Ada Compliant Counters. The Fully Finished Cabinet Also Enables Freestanding Use. This Model Comes With A Black Cabinet Finish. The Door Includes An Integrated Stainless Steel Frame Designed To Accept Full Overlay Panels, Allowing You To Create A Custom Look That Blends Into Your Own Cabinetry. Customers Provide Their Own Handle. Panels Should Be Sized At 23 5/16" W X 28 1/4" H And At Least 3/4" Thick. Inside, The Ar5If Utilizes Automatic Defrost Operation To Ensure Minimum User Maintenance. The 5.5 Cu.Ft. Interior Offers More Storage Space Than Most Models In This Size Class. Adjustable Glass Shelves Ensure Spill-Proof Storage, With A Removable Scalloped Wine Shelf Ideal For Keeping Bottles In Place. The Door Includes Three Storage Racks For Condiments And Tall Bottles. The White Interior Offers Easy Visibility, With An Automatic Light Included. The Ar5If Features Summit'S Intuitive Dial Thermostat For Easy Temperature Management. Designed And Constructed In Europe, The Ar5If Brings Reliable Cold Storage To Any Setting In Need Of A Quality Refrigerator In An Ada Compliant Height. Additional Ada Compliant Choices Are Available In A Variety Of Sizes And Styles. Browse Our Website For More Options.

  • ADA compliant : 32" height to fit under lower ADA compliant counters
  • Slim undercounter dimensions : Ideal 24" footprint offers full 5.5 cu.ft. storage capacity in a slim fit
  • Built-in capable : Make the best use of space by installing your appliance under the counter and flush with other cabinets

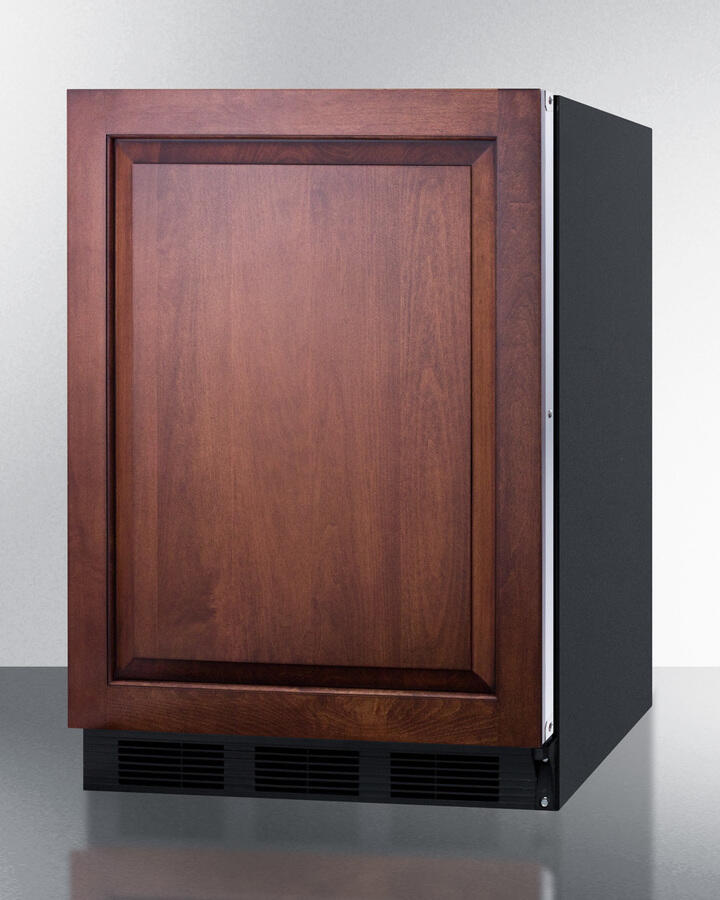

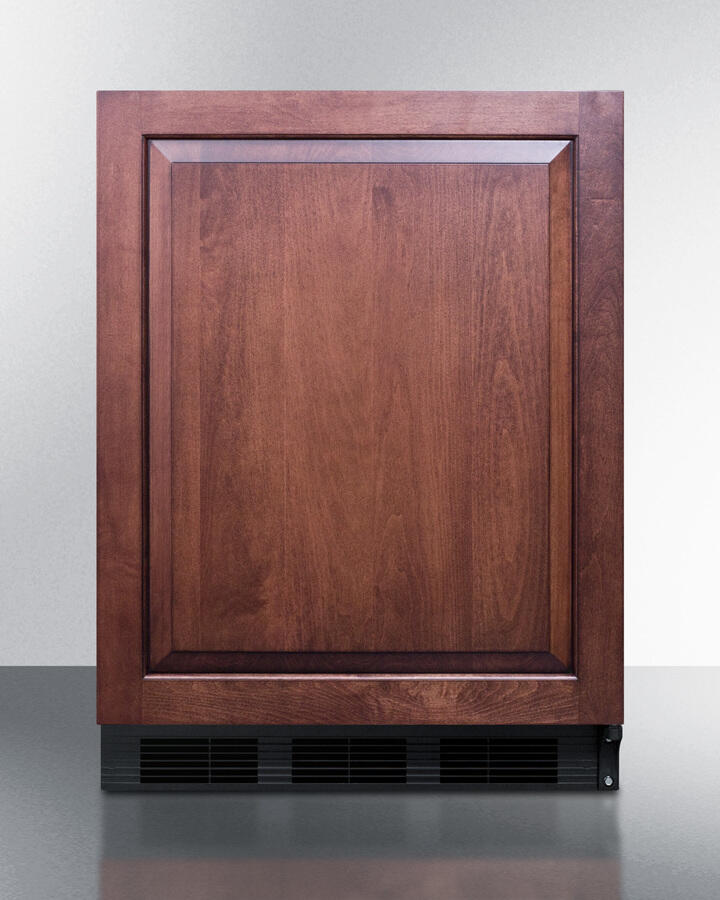

  • Panel-ready door : Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: 23 5/16" W x 28 1/4" H and at least 3/4" thick; maximum weight: 10 lbs.)
  • Automatic defrost : Reduced maintenance with auto defrost system

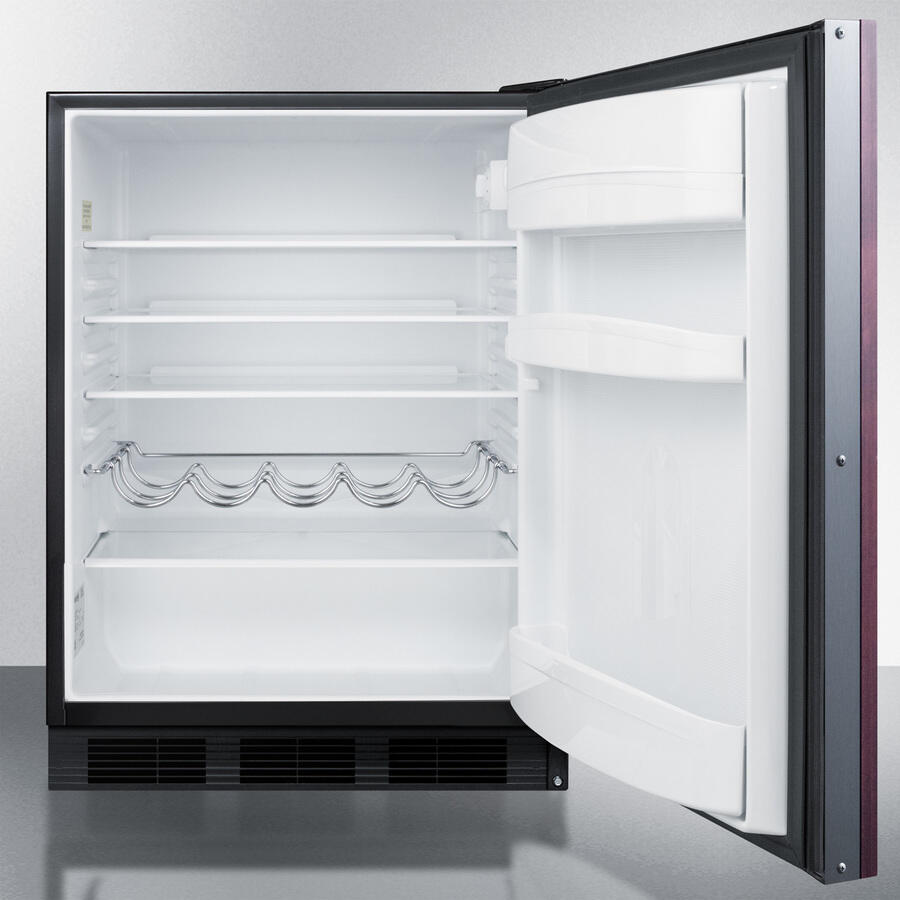

  • Adjustable glass shelves : Rearrange the refrigerator space to accommodate all shapes and sizes or remove shelves for a simple clean-up

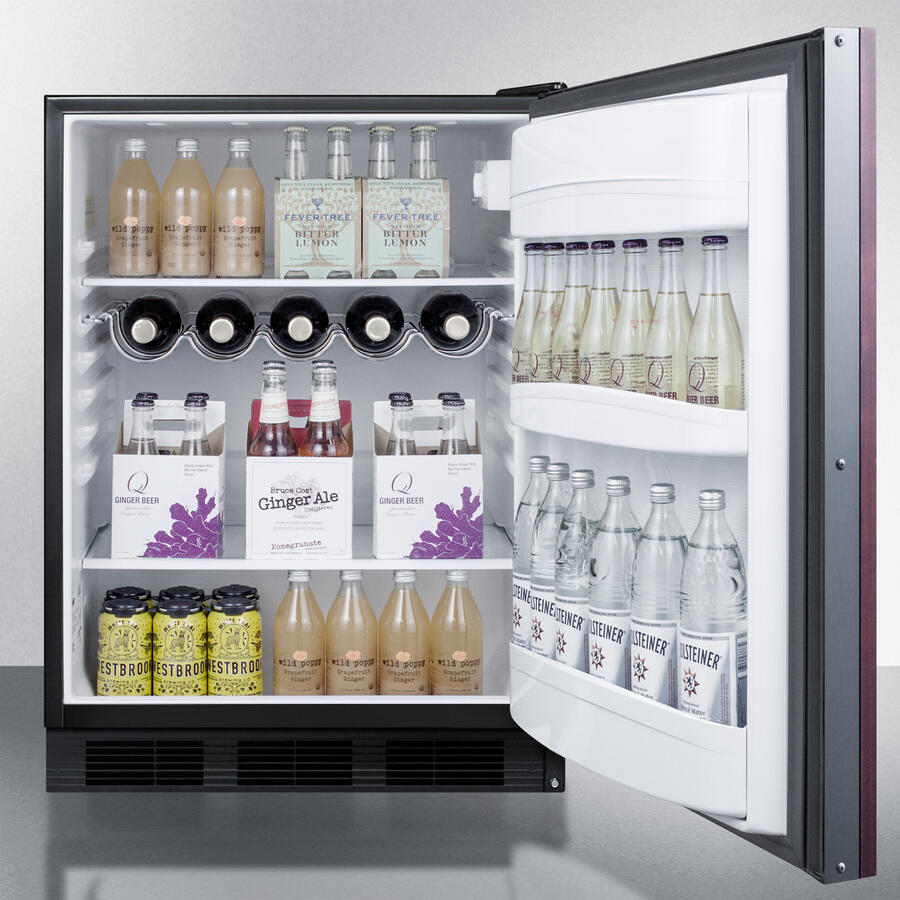

  • Door shelves : Store tall bottles and condiments right on the door for convenient access
  • Wine shelf : Removable scalloped wine shelf is included to store champagne and wine bottles
  • Interior light : Automatically illuminates when you open the door
  • One piece interior liner : Easy clean-up with a seamless liner that won't hold a mess in hidden crevices
  • Hidden evaporator : Cold wall design with hidden evaporator creates a seamless, easy to clean interior

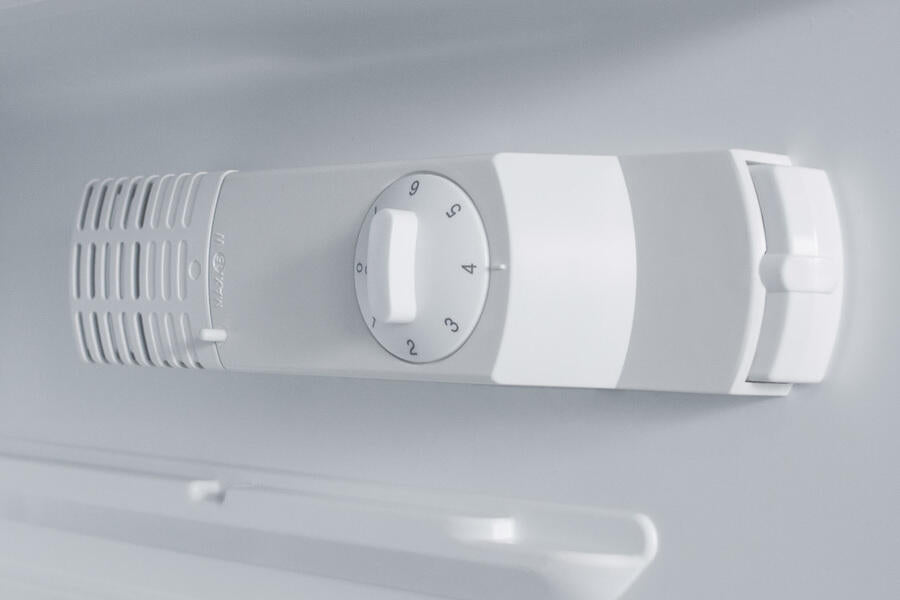

  • Adjustable thermostat : Simple, server & board-free operation with a dial thermostat located inside the unit for easy and intuitive temperature management
  • Fully finished black cabinet : Allows the unit to be used freestanding
  • 100% CFC free : Environmentally friendly design without ozone-damaging chemicals

Overview
Height of Cabinet 32.0' (81 cm)
Height to Hinge Cap 32.25' (82 cm)
Width 23.63' (60 cm)
Depth 23.0' (58 cm)
Depth with door at 90° 45.38' (115 cm)
Capacity 5.5 cu.ft. (156 L)
Defrost Type Automatic
Door Panel-Ready
Cabinet Black
US Electrical Safety UL
Canadian Electrical Safety ULC
Energy Usage/Year 307.0kWh/year
Amps 1.0
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Shipping Weight 105.0 lbs. (48 kg)
Estimated Time to Ship 2 to 4 Days
Parts & Labor Warranty 1 Year
Compressor Warranty 5 Years
Refrigerator Features
Door Swing RHD
Reversible Factory Reversible
Shelf Type Glass
Shelf Qty 3
Full Door Shelf Qty 3
Wine Bottle Shelves Yes
Thermostat Type Dial
Fan Type Exterior
Refrigerant Type R134a
Refrigerant Amount 1.7oz.
High Side PSI 285.0
Low Side PSI 70.0
Interior Light Yes
Dimensions
Interior Height 26.25' (67 cm)
Interior Width 21.0' (53 cm)
Interior Depth 18.0' (46 cm)
Compressor Step Height 5.5' (14 cm)
Compressor Step Width 21.0' (53 cm)
Compressor Step Depth 6.0' (15 cm)
Exterior
DL1 - Factory installed data logger HG - Hospital grade cord
HUM - Humidity sensor SSK
Latch for door LHD - Left hand door swing
ODA - Open door alarm SCD - Self-closing door
SS Hinges Alarm
DT - Digital thermostat PH - Probe Hole
TT - Installed thermometer DL2B - Factory installed NIST calibrated digital data logger (DDL)
Interior
FC - Internal Fan FCGP internal fan with gel packs
Lock
AC Keypad KEYPAD
